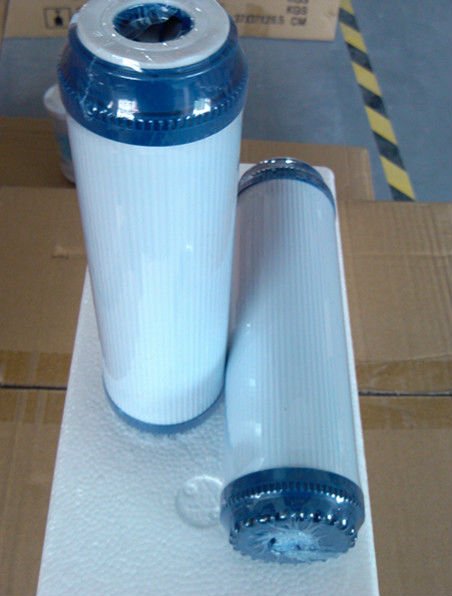

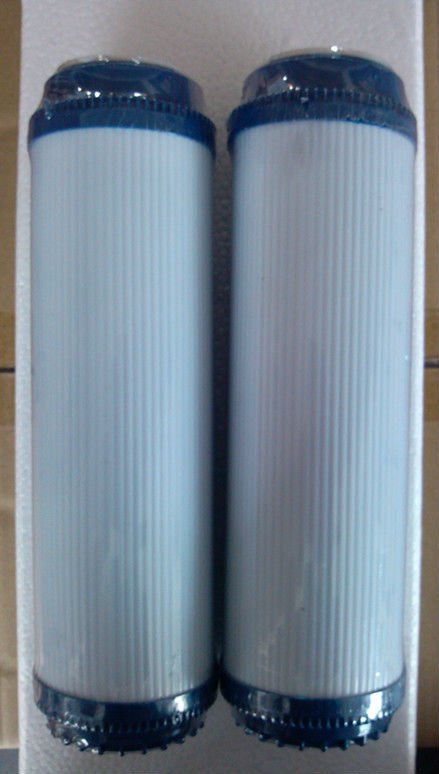

activated carbon water Filters
1.Length:5''10'' 20'' ;
2.Outer diameter:68~70mm;
3.Material:Coal carbon, NUT shell carbon,
Technical Parameter
Working PH :1~13
Service Life : 3~6 months (Need to depends on situation)
Type |
Ordinary-sized |
Jumbo-sized |
Length (inch) |
5'' |
10'' |
20'' |
10'' |
20'' |
Outer diameter |
68~70mm |
110~115mm |
|||
|
|
|
|||
Precision Range |
5~10 μm |
||||
Material |
Coal carbon, Nut shell carbon, Coconut shell charcoal |
||||
Working temperature |
0.25Mpa ≤ 60°C |
||||
Filter interface |
Insert type,Flat press type |
||||
Maximum differential pressure |
4kgf/cm
|
||||
Maximum flow rate |
8L/min |
||||
Operating pressure differential |
0.1—0.2kgf/cm
|
Special specifications can be customized
STICKER TRADEMARK FOR FREE
OEM is welcome
Product function and characteristics:
Has an excellent organic compounds, odor, chlorine and pigment adsorption capacity.
Membrane depth filtration, water flux, long service life
Broad Temperature Compatibility, Wide Chemical Compatibility, Wide applicability
The product can be widely used in pure water, plating line, printed circuit board,
paint, solvents, detergents,
water medicine, oral liquid, beverage, liquor,
pharmaceutical ampules and other sectors of the liquid is filtered,
compressed air, gas filter.
Place of Origin: |
Guangdong China (Mainland)
|
Brand Name: |
Guangzhou Lvyuan
|
Model Number: |
GAC
|
Media: |
Coal carbon, Nut shell carbon, Coconut shell charcoal
|
Interface: |
flat type, Insert type
|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
