Food online > Products > Confectionery > Other Confectionery >

Top quality customize lollipop candy packing equipment,China QCPACK price supplier

Top quality customize lollipop candy packing equipment

FOB Price:Price can be negotiated

Production Capacity:200 Set/Sets per Month lollipop candy

Payment Terms: US $14,000 - 15,000 / Set

Update Time:2014-09-25

Contact Supplier

Product Description

lollipop candy packing equipment
1.Large quantity shrink wrapping industries
2.Pack different sizes,it's simple to adjust

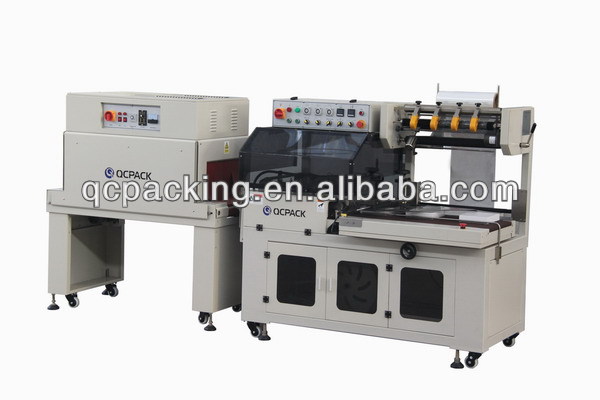

BTA-450A+BM-500 Top quality customize lollipop candy packing equipment

USES for lollipop candy packing equipment:

Suitable for large quantity shrink wrapping industries such as software, foodstuff, cosmetics, printing, pharmacy, flooring, ceramics, beverge and beer etc.

Performance Characteristics for lollipop candy packing equipment:

BTA-450A It is a fully automatic L sealer,widely used in pipelining work for large quantity package with high work efficiency,installed with pin hole device,adjustable film feeding system and adjustable conveying table,meets different requirements for different products and it has a kissing device for packing the small products.

1.Adopts heat resistant alloy Cutter plated Teflon,results in good sealing ,without melting the film and any smoke pollution.

2.Assembles one horizontal and one erect sensor for the entrance to the sealer it is easy to switch over ,even for some thin products,it is also easy to pack them.

3.The length of film feeding,controlled by magic eye and counter,also fixes an inductive motor for collecting wasted film automatically.

4.When pack different sizes of products ,it is simple to adjust,need not to exchange any molds or any bag making device.

5.To pack different size of products together for sales promotion effect.

6.Adopts OMRON digital temperature controller with PID function,sealing temperature is extremely sensititive and accurate,can set temperature optionally ,the cutter itself has a protective function,avoid from damage the products.

7.The machine fixes an organic safty glass cover,with alarm function,so that the operator is safe.

8.The machine can be connected with the production line, which is no need additional operators.

Main Technical Parameters:

Model	BTA-450A	BM-500
Max Packing Size	(L+H)≤500mm (W+H)≤430mm (H)≤130mm	(L)700×(W)450×(H)250mm
Max Sealing Size	(L)550×(W)450mm	(L)1200×(W)500×(H)300mm
Packing Speed	15~30 packs/min	30~50 packs/min
Electric Supply & Power	220V/50Hz 1.3kw	380V/50Hz 12kw
Air Pressure	5.5kg/cm3	/
Weight	300kg	220kg
Overall Dimensions	(L)1850×(W)1000×(H)1600mm	(L)1350×(W)750×(H)1500mm

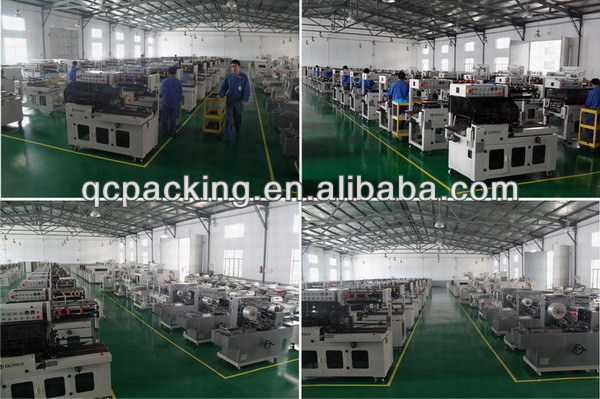

1. workshop for lollipop candy packing equipment

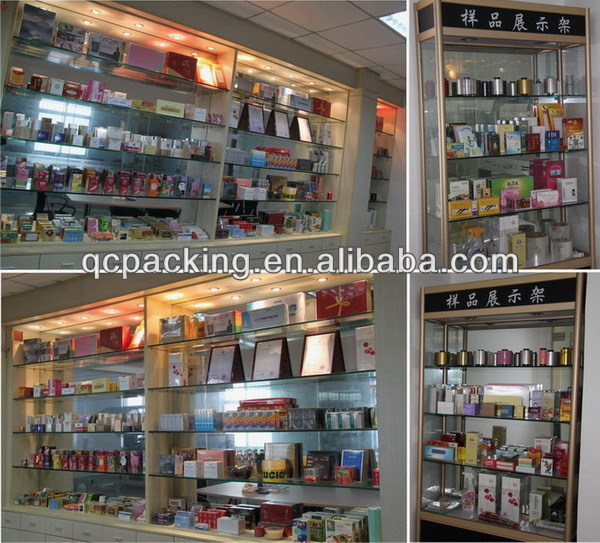

2. showing room for lollipop candy packing equipment

3. The exhibition figure for lollipop candy packing equipment

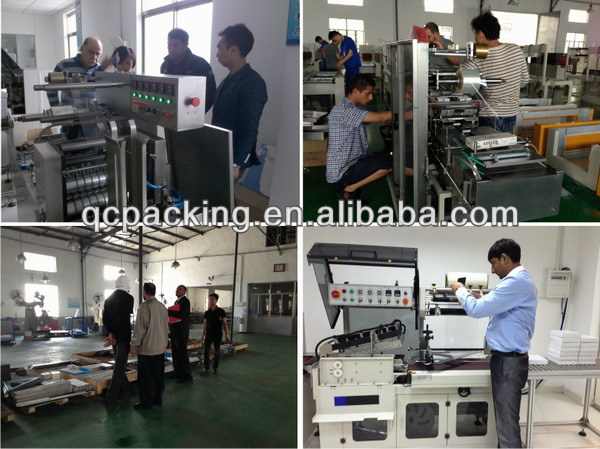

4. visit figure for lollipop candy packing equipment

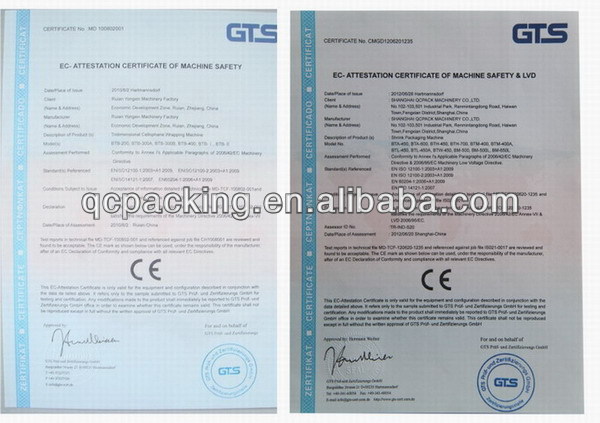

5. certificate for lollipop candy packing equipment

Type:	Wrapping Machine	Condition:	New	Application:	Food,Beverage,Commodity,Medical,Chemical,Machinery & Hardware
Packaging Type:	Cartons,Film	Packaging Material:	Plastic,POF film	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	380v	Power:	16kw
Place of Origin:	China (Mainland)	Brand Name:	QCPACK	Model Number:	BTA-450A+BM-500
Dimension(LWH):	320010001600mm	Weight:	520KG	Certification:	CE
After-sales Service Provided:	No overseas service provided	Name:	lollipop candy packing equipment	Other name:	customize lollipop candy packing equipment
Color:	White	PLC:	OMRON	Vertical sensor:	BANNER
Sealing knife:	DAIDO	Product feeding motor:	SESAME"> SESAME	Discharged motor:	SESAME
Cutting cylinder:	SHAKO	Synchronous belt:	MITSUBOSHL

Company Profile

Name: Shanghai Qcpack Machinery Co., Ltd.

Main Products: Shrink packing machine,Cellophane wrapping machine,Carton sealing machine,Condom packing machine,Cartoning machine

Business Type: Manufacturer

Total Employees: 51 - 100 People

Established Year: 2011

Main Markets: Mid East, South America, Africa, Domestic Market, South Asia

Address: RM 1101, Laiyifen Youth building,No.68 Lane 1399 Husong Rd,Shanghai,China

Shanghai QCpack Machinery Co., Ltd. is located at the 501 Industrial Park, Xinghuo Development Zone, Shanghai, which is quite near to the airport, train station and exit of expressway. Being a professional machinery manufacturer integrating with R&D, production, sale and service, the company owes factory buildings with size of over 7000 square meters and several advanced machine processing equipments.

The company is specialized in the cellophane wrapping machines, shrink wrapping machines, condom packaging machines and packing materials, which are widely applied to the package of foodstuff, medicine, daily necessities, cosmetics, health products and stationery in China, and also exported to several countries and regions. All machines are greatly reputed by the users.

With the company philosophy of "QCpack Products, World Popularizes", the company manufactures and assembles each machine with the most rigious attitude, trying to make the machine quality to be compared with that of German and be the best one in China. All empoyees insist on the quality policy of "keeping on innovation, striving for excellence, strict with production, providing qualified servic" to meet the challenges and competitions. There is a belief that QCpack products will be popular all over the world in a near future. more
