Tubular Pasteurizer For Soya Milk,China HH price supplier

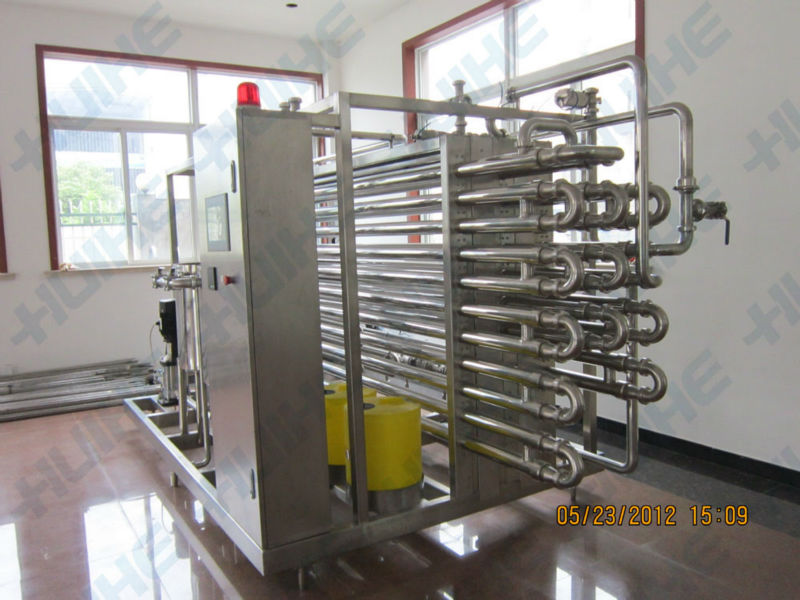

Tubular Pasteurizer For Soya Milk

FOB Price:Price can be negotiated

Production Capacity:50 Piece/Pieces per Year

Update Time:2014-09-19

Contact Supplier

Product Description

1.capacity:1-10T/H
2.Sterilizing time: 3-5s
3.Sterilizing temperature:115~135 centigrade

Brief Introduction:

The core part of this set of equipment is Tubular UHT Sterilizer. The whole system is in compact structure, good sterilizing effect, brief operation, wide using range, low price etc. We can supply the UHT sterilizing system alone including the Sterilizer, the preheating tank, heat preservation tank etc. The system has the function of homogenizer connector, preventing forming galalith and pasteurization. We can also supply the whole system including the UHT sterilizing system and the quick-degassing system.

Product Classification:

Full-automatic Configuration: It adopts the advanced computer program controlling the PLC technology.

It produces and controls according to the setting technical requirements. It is with the CIP cleaning system to clean the whole system automatically.

Product Application:

It is widely used in the processing of milk, juice, tea drink, dairy drink, Tomato paste, flavoring, beer, cream,

ice cream, egg products, solid powder product etc.

The Main Configuration:

This equipment is composed of material system, high temperature hot water system, degassing system (selective),

high pressure homogenizing system (selective), CIP cleaning system, self- sterilizing aseptic system (selective)

and controlling system.

Product Characteristic:

1. The sticky range is very large. The PH value use environment is 1-14, which is suitable for the aseptic process of fresh milk, pasteurization milk, yogurt, color milk, juice, tea beverage, grape wine, ice cream, soymilk, dairy beverage, long life milk, jam, paste product etc. The shelf life of the product that is sterilized by the UHT system under aseptic package can be 3-6 months without any Preservative and cold chain.

2. The equipment is full-automatic or semi-automatic control and the touch screen is LCD.

3. Sterilize the product in instant time and preserve the original flavor.

4. The temperature control system is PID. The sterilizing temperature is recorded by the recorder.

5. The heat process is well-distributed. The heat recovery can be 90%.

6. There’s no any contact point, no health dead angle. So the product will not stick into the pipe. The bellows will have high turbulence during sterilizing and it has automatic cleaning effect during the flowing process of the material. So it is not easy to form dirt in the pipe.

7. Long continuous operating time and good CIP automatic cleaning effect .

8. Few spare parts and low operating cost .

9. Brief installation, check and disassemble. Convenient examination and repair.

10. Reliable material which can resist high product pressure .

Technical Parameters

Model	Operational Capacity (t/h)	Steam Consumption (kg/h)	Steam Pressure (bar)	Electric Power (kw)	Outside Size (L×W×H)	Weight (kg)	Caliber(Φ)
Model	Operational Capacity (t/h)	Steam Consumption (kg/h)	Steam Pressure (bar)	Electric Power (kw)	Outside Size (L×W×H)	Weight (kg)	Material	Steam	Medium
HH-UHT-XGZ-1	1	130	2.5	1.9	3.3×1.6×2.0	1490	25	DN25	25
HH-UHT-XGZ-2	2	260	2.5	2.1	3.5×1.6×2.0	1590	25	DN32	25
HH-UHT-XGZ-3	3	390	2.5	3.0	3.5×1.8×2.0	1630	38	DN40	38
HH-UHT-XGZ-4	4	520	2.5	3.0	3.5×1.8×2.0	1870	38	DN40	38
HH-UHT-XGZ-5	5	650	2.5	3.0	3.5×1.8×2.0	2060	38	DN50	38
HH-UHT-XGZ-6	6	780	2.5	3.0	3.5×1.8×2.0	2250	51	DN50	51
HH-UHT-XGZ-8	8	1040	2.5	3.7	4.5×2.0×2.0	2500	51	DN65	51
HH-UHT-XGZ-10	10	1300	2.5	5.2	4.5×2.0×2.0	2800	51	DN80	51
HH-UHT-XGZ-15	15	1950	2.5	7.0	6.5×2.0×2.2	3500	63	DN80	63
HH-UHT-XGZ-20	20	2600	2.5	11.0	6.5×2.0×2.2	4300	63	DN100	63

Condition:	New	Place of Origin:	Zhejiang China (Mainland)	Brand Name:	HH
Model Number:	HH-UHT-XGZ-2	Usage:	liquid product	Type:	Ultra High Temperature
controller:	full-automatic or semi-automatic	made to order:	yes
