uht juice sterilizing machine,China KQ price supplier

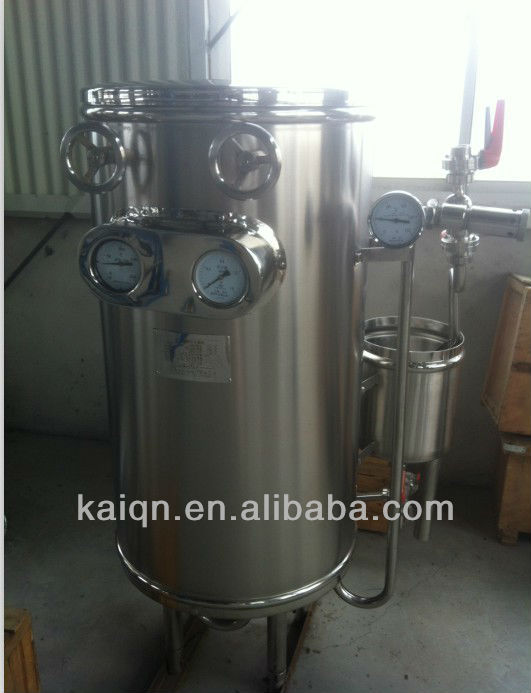

uht juice sterilizing machine

FOB Price:Price can be negotiated

Production Capacity:100 Unit/Units per Month

Payment Terms: US $3,000 - 9,999 / Unit

Update Time:2021-10-08

Contact Supplier

Product Description

1.milk sterilizer/uht sterilizer /sterilizer machin
2. quick sterilize milk or other beverage at 115c
3.continous sterilizer

SUS304 UHT sterilizer
1.wide adaptation
2.ultra high temperature
3.short time sterilizer

MILK UHT sterilizer / CONTINOUS STERILIZER/ HIGH TEMPERATURE STERILIZER FOR JUICE/ BEVERAGE

Usages

Milk uht sterilizer, high temperature sterilizer it is widely used in fresh milk, soybean milk, fruit juice, beverage, soy sauce, wine, ice cream paste and other fluid materials such as soymilk, fluid drugs. If the homogenizer is set together, it can also be used for high viscosity materials such as sugar beets and condensed milk and so on.

Characteristics

1. Continuous production makes short sterilization time;

2. Due to short heating time, quality products available;

3. Ultra high temperature makes ideal sterilization effect;

4. Linked with centrifugal pump and high-pressure homogenizer, application range is wide, and is suitable for high viscosity materials sterilization.

5. The heat exchanger in design can utilize waste heat, so that the steam consumption is small.

Technical parameters

Model	KQ-1.0	KQ-2.0	KQ-4	KQ-6
Processing power	0.5-1T/H	1.5-2T/H	3-4T/H	5-6T/H
Sterilization temperature	115-135°C	115-135°C	115-135°C	115-135°C
Steam pressure	<0.4MPa	<0.4MPa	<0.7MPa	<0.78MPa
High temperature heating time	4-6S	4-6S	4-6S	4-6S
Discharge temperature	<65°C	<65°C	<65°C	<65°C
Motor power	2.2KW	2.2KW	4KW	5.5KW
Body size	9209201400	110011001700	120012001800	140014002000
Weight	280KG	380KG	550KG	700KG

Type:	Filling Machine"> Filling Machine	Condition:	New	Application:	Beverage
Packaging Type:	Case	Packaging Material:	Wood	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	220V/380V/240V	Power:	1.5-4kw
Place of Origin:	Shanghai China (Mainland)	Brand Name:	KQ	Model Number:	KQ-S
Dimension(LWH):	/	Weight:	1500KG	Certification:	ISO
After-sales Service Provided:	No overseas service provided	Processing::	Sterilizer,high temperature s	Milk sterilizer holding time:	4seconds to 5seconds
sterilizer construction:	frame and uht sterilizer	machine material:	SS304	uht sterilizer heat source:	heated by steam
sterilizer temperature:	bove 100C adjusted	coil pipe uht sterilizer:	quickly continous sterilizer	Sterilizer capacity::	500LPH,1000LPH,2000LPH
Sterilizer application:	Sterilizer application
