uht sterilizer sterilizing equipment with CE certificate,China HH price supplier

uht sterilizer sterilizing equipment with CE certificate
FOB Price:Price can be negotiated
Production Capacity:2000 Unit/Units per Year
Update Time:2014-09-19
Product Description

uht sterilizer sterilizing equipment with CE certificate
1.SUS304/SUS316L
2.high efficiency
3.energy saving
4.simple opera

  Product Description
UHT Plant 's Suitable Material

UHT Plant is suitable for   fresh milk, soybean milk, fruit juice, beverage, soy sauce, wine, ice cream paste and other fluid materials such as soymilk, fluid drugs.  If the homogenizer is set together, it can also be used for  high viscosity materials  such as sugar beets and condensed milk and so on.


uht sterilizer sterilizing equipment with CE certificate
  UHT Plant ’s Characteristics
1. Continuous production makes short sterilization time;

2. Due to short heating time, quality products available;

3. Ultra high temperature makes ideal sterilization effect;

4. Linked with centrifugal pump and high-pressure homogenizer, application range is wide, and is suitable for high viscosity materials sterilization.

5. The heat exchanger in design can utilize waste heat, so that the steam consumption is small.
  UHT Plant 's Material and Structure
The UHT Plant material from Hangzhou Huihe Machine Facture Co., Ltd usually uses SUS304 or SUS316L to make if the customer has no special requirements.

uht sterilizer sterilizing equipment with CE certificate

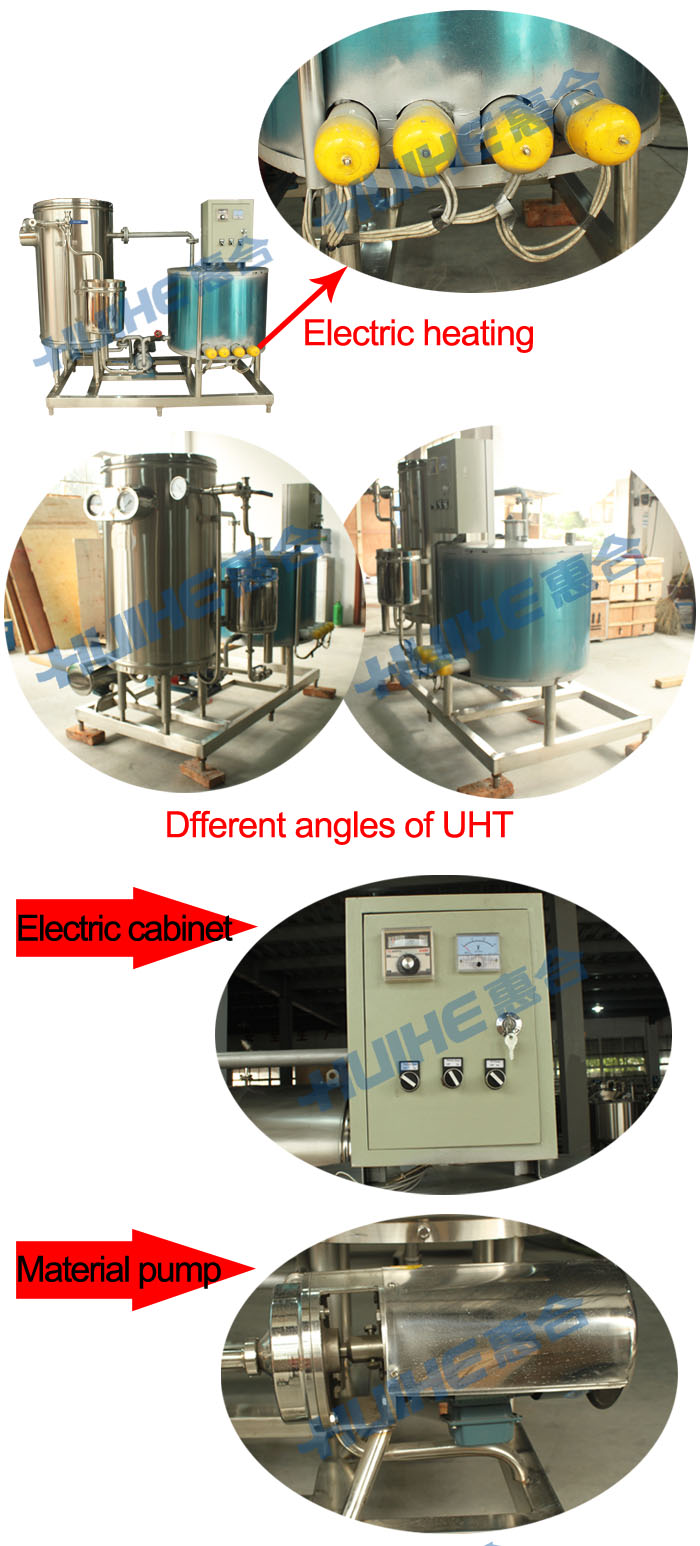

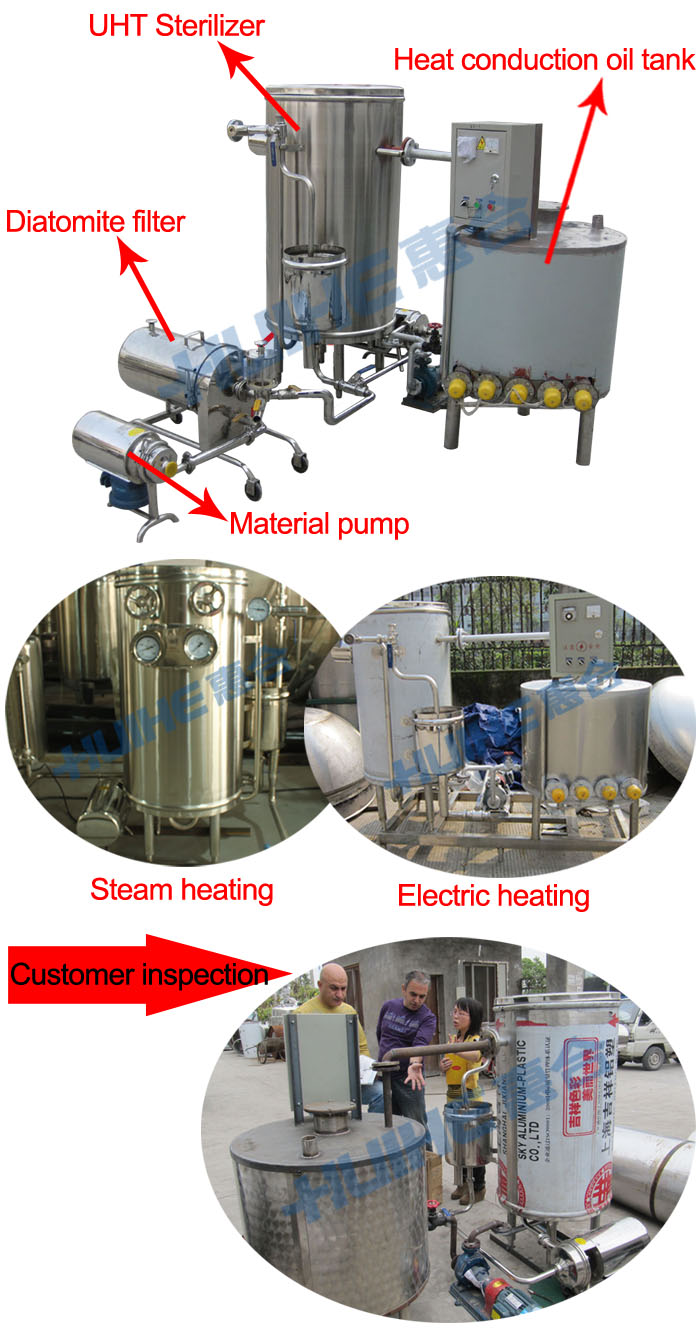

UHT Plant ’s Detailed Picture





uht sterilizer sterilizing equipment with CE certificate

uht sterilizer sterilizing equipment with CE certificate

UHT Plant ’s Technical Parameter

Model
RP6L10
RP6L20
RP6L40
RP6L60
Processing power
0.5-1T/H
1.5-2T/H
3-4T/H
5-6T/H
Sterilization temperature
115-135°C
115-135°C
115-135°C
115-135°C
Steam pressure
<0.4MPa
<0.4MPa
<0.7MPa
<0.78MPa
High temperature heating time
4-6S
4-6S
4-6S
4-6S
Discharge temperature
<65°C
<65°C
<65°C
<65°C
Motor power
2.2KW
2.2KW
4KW
5.5KW
Body size
920*920*1400
1100*1100*1700
1200*1200*1800
1400*1400*2000
Weight
280KG
380KG
550KG
700KG






























Notes:

1. The  parameters of UHT Plant in the chart are standard configuration.  Any specific requirements, please let us know.

2. These process parameters need provided when choosing the UHT Plant : the nature of material, output, sterilization condition, specific requirements, etc.

  Our Services
Why Choosing Our UHT Plant

1. Huihe machine have sales department, engineering department, after sales department, we are all service for you;

2. We are not competing for the price but the high quality and friendly service we competition

3. The salesman and engineer will listen to your requirements and the effect which you want to reach patiently, and tailored for you;

4. The after sales colleague will service for you from place an order to the actual production;

5. 9 years of industry experience, industry leader;

6. Factory, office site visit.

uht sterilizer sterilizing equipment with CE certificate

  Packaging & Shipping
UHT Plant ’s Packing Before Delivery
uht sterilizer sterilizing equipment with CE certificate
  Company Information
Authentication certificate and strength show

Hangzhou Huihe Machine Facture committed to design and manufacture all kinds of stainless steel container.



We can design according to customers' requirements for various kinds of stainless steel vessel, jacketed kettle, autoclave, milk cooling tank,and fermentor,etc .



The equipments conform to the sanitary standards,  thus effectively guarantee people's health.


uht sterilizer sterilizing equipment with CE certificate

Huihe Company not only has a professional oversea sales team , but also has department of networks, sales Support and technology research and development,etc .We can supply turn-key project for design and manufacture of a whole Production Line, for example milk production line, juice production line ,tea production line ,etc.

Our core value is “service for small and medium food enterprises, and benefit of the public”, the products has been send to all over the world for 9 years . We are deeply trusted by the users in the food and beverage industry. We are famous in the food machine field for jacketed kettle, sterilization equipment, reaction tank and fermentation tank ,etc.

uht sterilizer sterilizing equipment with CE certificate

Since founded in 2005 , we service customers with good pre-sales support and after-sale service . We purpose is "guaranteed quality, complete variety , competitive price , timely delivery" .We insist our vision “Honest, pragmatic and win-win ” to provide best quality and service.

uht sterilizer sterilizing equipment with CE certificate



uht sterilizer sterilizing equipment with CE certificate



uht sterilizer sterilizing equipment with CE certificate



uht sterilizer sterilizing equipment with CE certificate

Condition:
New
Place of Origin:
Zhejiang China (Mainland)
Brand Name:
HH
Model Number:
uht sterilizer sterilizing equipment with CE certificate
Usage:
Diary Product
Type:
Ultra High Temperature
Voltage:
made to order
Power(W):
made to order
Weight:
made to order
Dimension(L*W*H):
made to order
Certification:
CE
Warranty:
1 year
After-sales Service Provided:
Engineers available to service machinery overseas
Material:
SUS304 or SUS316
Processing type:
Juice,Milk,Liquid Product
Standard:
ISO9001:2008
Other Products
Company Profile
Name: Hangzhou Huihe Machine Facture Co., Ltd.
Main Products: stainless steel tank,jacketed kettle,milk cooling tank,homogenizer,UHT sterilizer
Business Type: Manufacturer
Total Employees: 51 - 100 People
Established Year: 2005
Main Markets: Eastern Europe, Southeast Asia, South Asia, South America, North America
Address: No.1 Xiyuan Seven Road, Xihu Technology Park, Xihu District, Hangzhou City, China
The company is a professional manufacturer devoted to design, production and sale of sanitary stainless steel fluid equipments, stainless steel containers and stainless steel equipment in China.

We have introduced in advanced production technologies and equipment in processing and production, and its products have nice appearances and unique structures, and are made of SUS304 or SUS316. The interior surface inside of container undergoes bright mirror finish treatment, and the exterior surface can undergo various treatments such as polishing, frosting or undergo various treatments such as polishing, frosting or sandblasting etc, according to customers' requirements and complying with GMP sanitation standard. The products are widely applied in filtering, heating, cooling, allocation and storage of fluid materials in environmental protection, pharmacy, foods, beverages, dairy products, daily products and biological engineering.

We also produce series of sanitary accessories for pharmaceutical fluids: such as stainless steel sanitary pumps, joints, clamps, elbows, ball valves, diaphragm valves etc. All products sell quite well all over China, and enjoy customers' trust. Therefore, it is one of the strong enterprises in the industry.

The company will adhere to operation tenet of "Survive by quality, improve by science and technology, make friends by good credit standing". And People from Huihe will make more efforts on technical reform and innovation on technologies and hardware continuously, and satisfy requirements of all users by totally new styles and features, agile and practical operation mechanism, reliable quality, reasonable prices, and excellent before-sale and after-sale service. We will do our best to eliminate troubles and hardness for you, to help you win maximum profit by minimum investment, and to go all out to create a most reliable stainless steel machinery world for customers. more
