ultra low temperature tuna/ shrimp liquid nitrogen refrigerator,China cryogenic price supplier

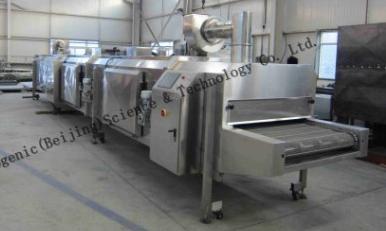

tuna/ shrimp liquid nitrogen refrigerator

material: AISI 304 stainless steel

control: touch screen and PLC control

Cryogenic (Beijing) Science & Technology Co.,Ltd is a leading manufacture of liquid nitrogen system and equipment in China.  Using liquid nitrogen (-196°C) as cooling medium,  making a rapid speed of cooling and frozen.

Liquid nitrogen freezer Application:  Frozen Food industry: freezing the seafood, meat and fresh vegetable.

Introduction of  liquid nitrogen freezer:

Liquid nitrogen temperatures can reach minus 196 degrees Celsius(-196).When it is in contact with food,Gasification will be able to take heat away more quickly.The ultra-low temperature and high heat exchange rate achieve a really quick reozen.Such repid freezing,generating the smallest ice crystals, and helps maintain food texture.This also prevents water loss, and almost no loss:to maintain the original color,flavor and original quality of the food.These vaporized refrigerant nitrogen is directed to the front end of the refrigerating machine uniformly,complete the exchange of hot inverse,thereby improving the utilization of the nitrogen.

Feature of liquid nitrogen quick freezer:

  1)  liquid Nitrogen freezer, the lowest temperature is -190°C.

  2)  Fast freezing time, the fastest freezing time is 5 minutes.

  3)  No damage of cell structure, no dehydration and dry loss,no moisture loss.

  4)  improve productivity, improve texture, color, flavor of frozen product.

  5)  The nitrogen freezer is Environmental, no pollution, no noise.

  6)  Easy to operate and easy to repair, don’t need special technician.

Technical parameter:

Quick-frozen  capacity   : 100 kg/h

Dimension s: 1380 mm ×820 mm×18600 mm(approximately)

inside dimensions : 600 mm ×400  ×  10 mm

Power :  380V  or 220 V  ,50Hz ,0.37KW

Working temperature :  room temperature ~-150°C  , the temperature is  adjustable
