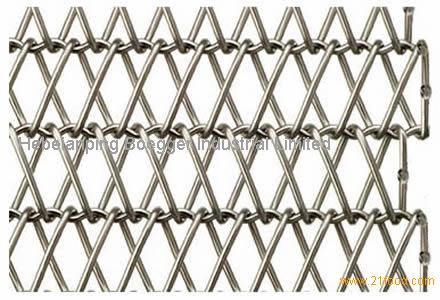

Universal weave conveyor belt features alternating right and left hand spiral wires which joint together in the terminal. This interwoven design provide equal and opposite stress for stable movement by traction or positive drive. Generally, they are widely used in glazing ceramics, copper brazing as well as food processing industries such as cooking, baking and cleaning, etc.
Universal weave conveyor belts have similar structure to double balanced weave belts, but different in edges. Right and left spiral wires are welded to each other at the end of universal weave belts; while they are welded to crimped cross rods for double balanced weave belts as shown in the picture:
Universal weave conveyor belt
Double balanced weave conveyor belt
Features:
Details:
Specification:
| Main specifications of universal weave conveyor belts | |||||
|---|---|---|---|---|---|
| Type | Spiral number in 12" | Cross rod number in 12" | Cross rod diameter | Spiral wire diameter | Approx opening |
| UWCB-1 | 27 | 21 | 0.145" | 0.135" | 5/16" ×7/16" |
| UWCB-2 | 18 | 7 | 0.250" | 0.235" | 7/16" ×1-1/4" |
| UWCB-3 | 24 | 10 | 0.162" | 0.148" | 3/8" ×1" |
| UWCB-4 | 42 | 32 | 0.105" | 0.08" | 3/16" ×11/32" |
| UWCB-5 | 46 | 25 | 0.105" | 0.08" | 3/16" ×3/8" |
| UWCB-6 | 46 | 20 | 0.12" | 0.092" | 5/32" ×3/8" |
| UWCB-7 | 39 | 21 | 0.135" | 0.105" | 3/16" ×7/16" |
| UWCB-8 | 29 | 15 | 0.148" | 0.135" | 1/4" ×5/8" |
| UWCB-9 | 21 | 12 | 0.192" | 0.162" | 11/32" ×3/4" |
| UWCB-10 | 24 | 10 | 0.192" | 0.162" | 5/16" ×1" |
| UWCB-11 | 55 | 32 | 0.105" | 0.063" | 5/32" ×9/32" |
| UWCB-12 | 60 | 45 | 0.063" | 0.063" | 1/8" ×7/32" |
| UWCB-13 | 102 | 74 | 0.047" | 0.035" | 1/16" ×3/32" |
| UWCB-14 | 156 | 93 | 0.041" | 0.025" | 3/64" ×1/16" |
| UWCB-15 | 240 | 138 | 0.03" | 0.016" | 1/32" ×1/16" |
| UWCB-16 | 24 | 18 | 0.08" | 0.063" | 3/8" ×1/2" |
| UWCB-17 | 24 | 18 | 0.105" | 0.08" | 11/32" ×1/2" |
| UWCB-18 | 18 | 10 | 0.148" | 0.135" | 1/2" ×1" |
| UWCB-19 | 18 | 11 | 0.162" | 0.148" | 7/16" ×1" |
| UWCB-20 | 48 | 26 | 0.063" | 0.047" | 3/16" ×3/8" |
| UWCB-21 | 36 | 23 | 0.092" | 0.063" | 7/32" ×7/16" |
| UWCB-22 | 36 | 23 | 0.08" | 0.063" | 7/32" ×7/16" |
| UWCB-23 | 24 | 14 | 0.135" | 0.105" | 3/8" ×3/4" |
| UWCB-24 | 36 | 18 | 0.12" | 0.105" | 5/16" ×9/16" |
| UWCB-25 | 36 | 18 | 0.12" | 0.105" | 7/32" ×9/16" |
| UWCB-26 | 36 | 23 | 0.105" | 0.08" | 7/32" ×3/8" |
| UWCB-27 | 24 | 14 | 0.148" | 0.12" | 3/8" ×3/4" |
| UWCB-28 | 30 | 18 | 0.135" | 0.12" | 9/32" ×9/16" |
| UWCB-29 | 36 | 18 | 0.135" | 0.12" | 7/32" ×9/16" |
| UWCB-30 | 36 | 32 | 0.105" | 0.092" | 7/32" × 3/8" |
Boegger Industrial Limited, established in 1983, is specialized in manufacturing and exporting all types of steel conveyor belts. Based on decades of experience, our skilled and qualified teams know what is needed by our customers and what we are doing clearly. Therefore, we dedicate ourselves into researching and developing new conveyor belts to suit different needs for different applications.
Quality products:
A wide range of steel conveyor belts can be supplied including flat wire conveyor belt, rod network belt, eye flex conveyor belt, balanced weave conveyor belt, compound weave conveyor belt, universal weave conveyor belt, conventional weave conveyor belt, radius conveyor belt, ladder conveyor belt and flat rolled baking belt.
These conveyor belts are manufactured from quality steel, stainless steel or custom materials in a wide range of sizes, open areas and styles. Meanwhile, they are strong and durable with a longer service life than other belts from our competitors.
Superb service
Profession custom service team is waiting on line all the time to solve your problems and give you some advice about picking up the optimal conveyor belts for your applications. Meanwhile, custom designs and sizes are welcomed. Don't forget to enclose your blueprints for custom orders.
