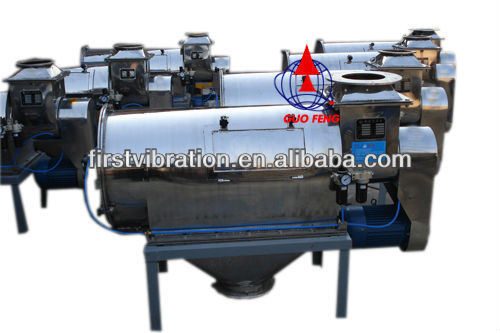

◊WQS Horizontal Airflow Screen◊

◊Introduction

Horizontal Airflow Screen is a machine whose principle is feeding the materials into a screw conveyor and a rotor rotating at high speed, the fine materials will pass through screen, while the oversize materials will be discarded at the end of the screw shaft. It is suitable for the industries such as metallurgy, mining, pharmacy, food, chemical engineering, metal powder and nonmetal powder etc.

◊Working principle

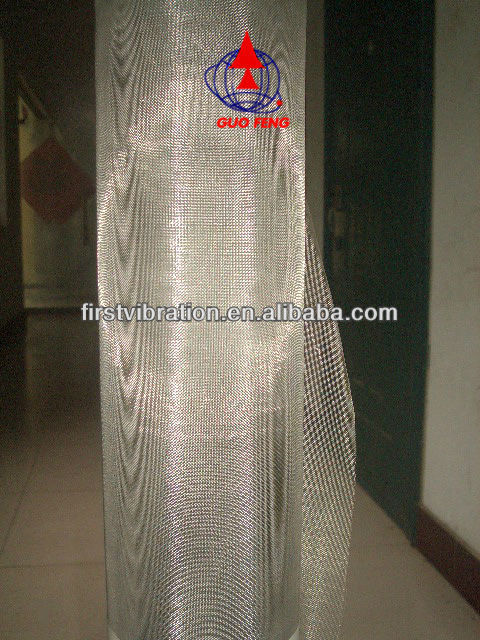

The cylinder screen mesh of this device is placed inside the machine. The materials enter the net tube with airflow to be mixed and atomized by passing the screw conveying system. Then some of the materials are sprayed through the net and discharged from the fine stuff portal by the centrifugal force and cyclone propelling power, which are caused by the rotor vane inside the net tube, while the other materials that cannot across the net are discharged from spout along the net tube wall.

◊Applied fields

It is especially suitable for grinding plant powder, such as: Chinese herbal medicine powder,Spices, curry powder, ginger powder, garlic powder, chili powder , Pepper Powder material etc, cosmetics , mica powder, pearl pigment superfine powder and so on.

◊Feature

1. Small size ,light ,stable in operation, low noise, good sealed structure, environmental, high-efficiency.

2. Special design makes it easy to install and convenient to operate.

3. Can operate either in a single unit or multiple units,and it is safe and reliable for a long time operation.

4. The screen-mesh can be cleaned automatically by cyclone.

5. The new type roller bearing can prolong the service life.

6. The machine can work with the pneumatic conveying systems, and materials can be directly sent into the wind path to save energy.

7. New design: The airflow protection system can transfer the purified air to the two ends of the device, which will reduce the temperature created in the operation of the device.

8. It will form the air-isolated layer to avoid the powder entering the bearing so as to prolong the service life of the bearing effectively, reduce the maintenance frequency, and increase work efficiency.

9. The machine can be specially designed to meet special requirements.

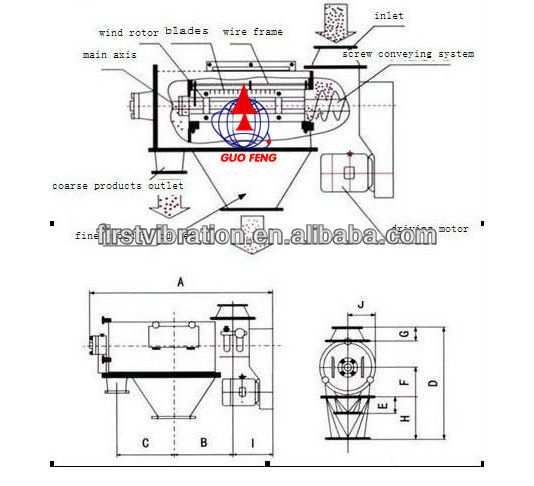

◊Structure chart

◊Technical parameters

◊End products

◊You may be interested in our Vertical Airflow Screen

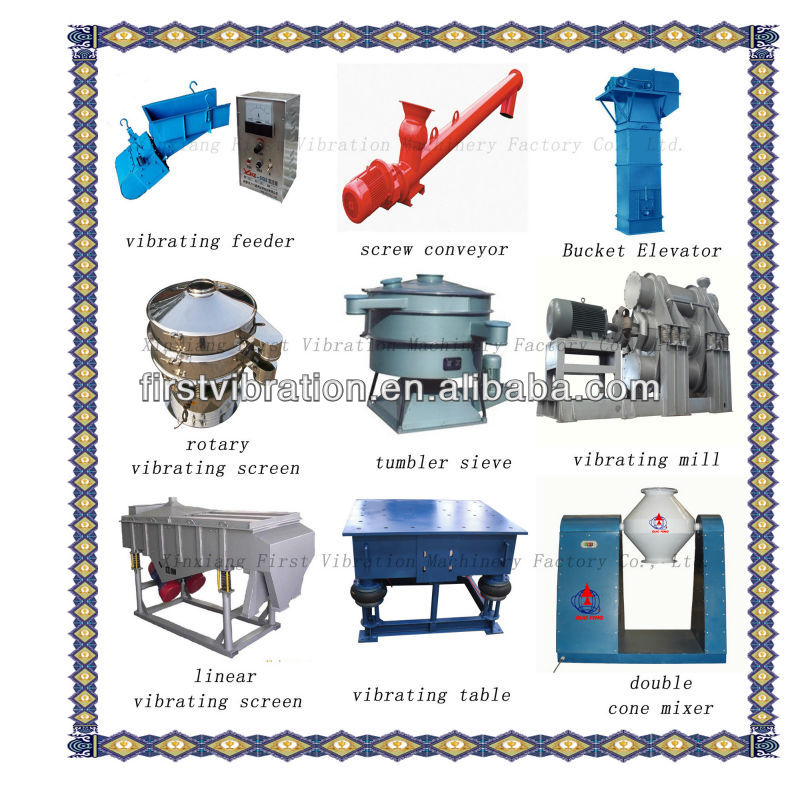

◊Our other products

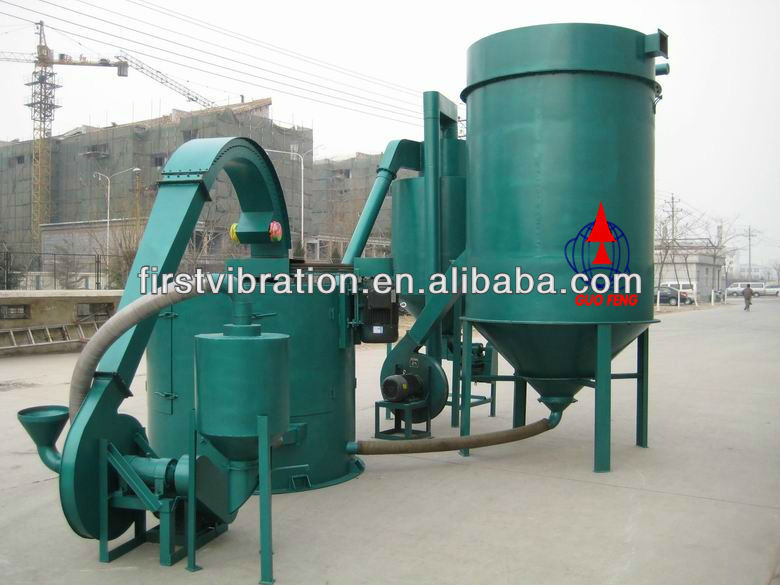

◊Welcome to our factory

◊Ok, after scanning the materials above, I believe you have a knowledge of the product. But how could you choose suitable one? Pl answer the following questions:

1. What’s the materials to process?

2. What’s the feature of the materials? Like density, moisture degree,input particle size and output particle size.

3. How many layers do you need ? And what’s the screen mesh about each layer?

4. What’s your capacity per hour?

5. What's material for the machine?Stainless steel or contact part stainless steel or carbon steel?

6. Other special requirement.
