Wecan B1 class fireproof ACP/sandwich composite panel, ZTL-1124 Saffron Yellow,China Wecan price supplier

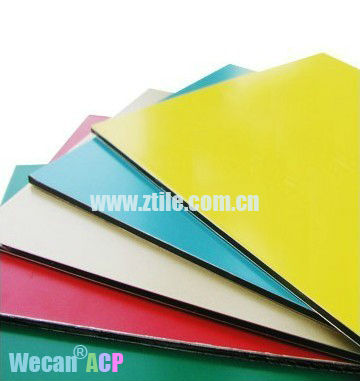

Wecan B1 class fireproof ACP/sandwich composite panel, ZTL-1124 Saffron Yellow

FOB Price:Price can be negotiated

Production Capacity:5000 Square Meter/Square Meters per Da

Payment Terms: US $3 - 20 / Square Meter

Update Time:2023-04-14

Contact Supplier

Product Description

Excellent stripping degree, torsion strength
Easy processing, installation
Outstanding B1 fireproof property
Easy to maintain

PE/PVDF coated aluminium composite panel

Material:

1) Top: aluminum alloy sheet coated with fluoro-carbon resin (PVDF) and polyestor resin (PE) roasting painting.

2) core: non-toxic polyethylene or fireproof material

3) back: aluminium alloy sheet coated with polyester resin painting

4) surface finish: PVDF / PE resin,brush finish ,mirror finish ,wooden faced,nano painting ect.

5) surface coating thickness :30 um 70% KYNAR PVDF

Front:	Aluminum alloy sheet coated with fluoro-carbon(PVDF) or polyester(PE)
Core:	Normal core, unbroken core, fireproof core
Back:	Aluminum coated with PVDF or PE,Or according to customers' requir e ment s

saffron Yellow" data-width="581" data-height="213" ori-width="561" ori-height="432" />

Dimensions:

1) thickness: 2mm-5mm

2) widthe: 1220mm,1250mm,1270mm,1500mm,1550mm

3) length: 2440mm,3050mm,3200mm( no longer than 6 m)

4) aluminium thickness: 0.15mm – 0.50mm

5) weight: 5.5kg/sqm baesd on 4mm thickness

6) standard size: 1220*2440mm

7) qty/20'fcl:4mm/2380sqm ,qty/20'fcl :3mm/2977sqm

8) non-stanard size are available according to requirement

Applications:

1) widly used in exhibition,signboard ,stores,offices,banks,hotels,restaurants and apartments

2) an ideal decorative materials for buildings,facades ,roofing

3) an ideal outer and inner walls,curtain wall

4) kitchen cabinees,billboards,signboards,tunnels,subway,interiors

5) cellings,eaves,galleries,balconies,partitions,interior decorations

6) telephone tooths,vehicle bodies,yachts,industrial usage etc.

Features:

Packing:

in strong green wooden pallet,environmental-friendly.

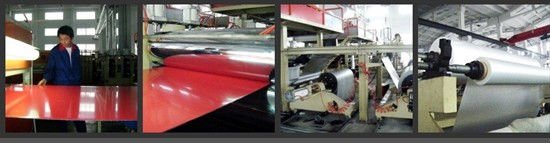

Production line:

Specifications :

Total thi c kness:	2mm,2.5mm,2.8mm,3.0mm,4.0mm ,5.0mm,6.0mm (3mm and 4mm are more popular)
Aluminum foil :	0.0 5 mm-0.5mm
Width:	1220mm (Max.width:1 25 0mm)
Length:	2440mm (Max.length:unlimited)
W e ight:	5.48kg/sqm based on 4 .0 mm thickness
Colors:	80 kinds of standard colors are available

Packaging details for standard size: 1220X2440mm

In wooden pallet	4mm, Q'ty/20'FCL: 3275 sqm ; 3mm, Q ' ty/20' FCL: 4465 sqm
In bulk	4mm, Q'ty/20'FCL: 50 00 sqm ; 3mm, Q ' ty/20' FCL:6 500 sqm

Profermance:

Application:	Interior Decoration, Exterior Wall Cladding and Sign
Dimensional Tolerances	Thickness(mm)	± 0.2
	Width(mm)	± 2
	Length(mm)	± 3
	Diagonal(mm)	± 5
	Thermal Expansion	2.4mm/m at 100 º C temp difference
	Aluminum Thickness(mm)	± 0.02
Surface Properties	Pencil Hardness	> HB/> 2H
	Temperature Resistance	-50 º C to +80 º C
	Impact strength (kg. cm)	50
	Boiling Resistance	Boiling for 2 hours without change
	Acid Resistance	Immerse Surface in 2% HC1 for 48 hours without change
	Alkali Resistance	Immerse Surface in 2% NAOH for 48 hours without change
	Oil Resistance	Immerse Surface in 20# engine oil for 48 hours without change
	Solvent Resistance	Cleaned 100 times with dimethylbezene without change
	Cleaning Resistance	Over 1000 times without change
	Peel Strength 180 º C	180oC> 5 newton/mm
Product Properties	Sound Absorption NRC	0.05
	Sound Attenuation RW db	23/24/25
	Water Absorption % by volume	0.0047/0.0057/0.0012
	Core Composition	LDPE Polyethylene, Non- Combustible Material

Place of Origin:	Jiangsu China (Mainland)	Brand Name:	Wecan	Model Number:	ZTL-1124 Saffron Yellow
Usage:	Outdoor	Function:	Fireproof,Mould-Proof	Surface Treatment:	Anodized,Foil Decoration,PE Coated,Printing,PVDF Coated
Core material:	Normal core, Unbroken core, Fireproof core	Coating:	PE coated or PVDF coated	Panel thickness:	2.0mm-7.0mm
Aluminum thickness:	0.1mm-0.5mm	Standard size:	1220X2440mm	Weight:	3.5kg-7.0kg/sqm
20GP FCL':	4.0mm/3500sqms, 3.0mm/4500sqms	MOQ:	800sqms/color	HS code:	7606125100
Certification:	SGS,PPG,ISO,KNYAR 500
