YB-100 Automatic Horizontal Bread&Chocolate Bar Wrapping Machine

FOB Price:Price can be negotiated

Production Capacity:100 Set/Sets per Month as request

Payment Terms: US $4,200 - 4,900 / Set

Update Time:2022-03-13

Contact Supplier

Product Description

Automatic Horizontal Bread&Chocolate Bar Wrapping Machine
1.pillow sealing
2.photoelectric tracking
3.easy operation

YB-100 Automatic Horizontal Bread&Chocolate Bar Wrapping Machine

Application:

Applicable for packing bread,sachet chocolate, biscuit, vitelline pie, lollipop, moon cake, ice cream, card, wet tissue,

spoon, toothbrush, soap, slipper, scourer ball, syringe, hardware and commodity and so on.

Function and features:

1. Computer/PLC control, high sensor photoelectric color chart tracing.

2. The bag length need not be set, machine could detect it automatically.

3. High performance machine, simple operation and high packing speed.

4. Gear system besides double frequency converter controller, which making machine simpler operation, high-speed working more stable.

5. Color touch screen, the first third-generation pillow type packing machine in China

Technical parameters:

Model Type	YB-100	YB-300	YB-320
Packing speed	30-220pcs/min	30-180pcs/min	30-180pcs/min
Width of film	90-220mm	90-300mm	90-400mm
making bag size	L65-160mm; W 30-100mm; H5-35mm	L90-240mm; W 30-140mm; H5-40mm	L100-300mm; W 30-160mm; H5-55mm
Total Power	2.7kw	2.7kw	4.1kw
Machine Size	L4000X W950X H1600(mm)	L4000X W1100X H1700(mm)	L4000X W1100X H1700(mm)
Machine Weight	400kg	500kg	550kg
Voltage	220V	220v	220v

Model Type	YB-360	YB-450	YB-503
Packing speed	40-220pcs/min	30-180pcs/min	30-180pcs/min
Width of film	90-360mm	90-450mm	90-600mm
making bag size	L65-190/120-280mm; W50-160mm; H10-40/0-60mm	L130-450mm; W50-180mm; H5-80mm	L120-450mm; W50-240mm; H10-100mm
Total Power	2.8kw	2.6kw	3.6kw
Machine Size	L4020X W720X H1320(mm)	L4020X W820X H1450(mm)	L4200X W1005X H1750(mm)
Machine Weight	800kg	800kg	1100kg
Voltage	220V	220v	220v

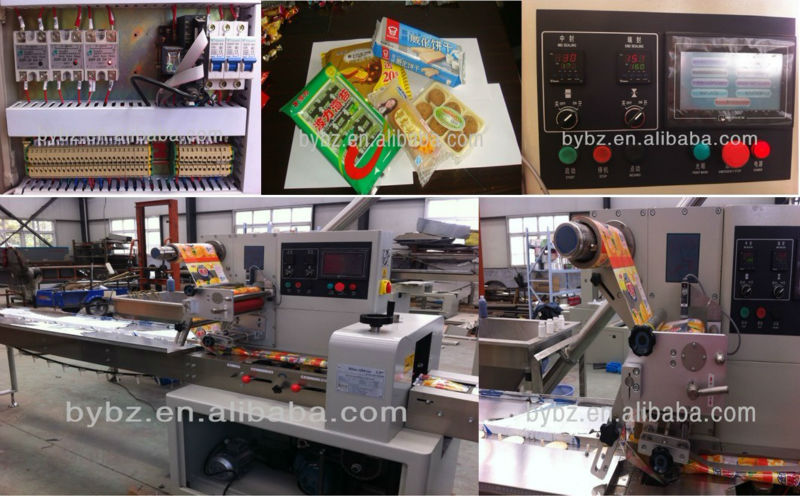

♥ Machine parts:

Type:	Wrapping Machine	Condition:	New	Application:	Food,Commodity,Medical,Chemical
Packaging Type:	Bags,Film,plastic film	Packaging Material:	Wood	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	220V	Power:	2.7kw
Place of Origin:	Shanghai China (Mainland)	Brand Name:	YB	Model Number:	YB-100
Dimension(LWH):	L4000X W950X H1600(mm)	Weight:	400KG	Certification:	CE
After-sales Service Provided:	Engineers available to service machinery overseas	control system:	PLC/computer	opration panel:	color touch screen
packing speed:	30-220bags/min	warranty:	1 year	optional device:	Date printer/gas filling"> date printer/gas filling
contact material:	SS304	packing type:	pillow seal	width of filom:	90-220mm
