Product Description

YB-100 chocolate bar Wrapping Machine
1.Rate:30-220 bags/min
2.PLC control
3.Color touch screen
4.CE

YB-100 Chocolate Bar Wrapping Machine --- YanBan Machinery

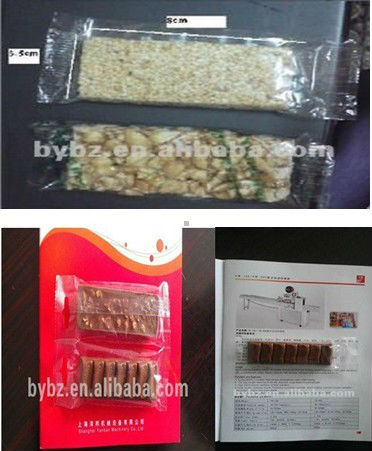

Samples:

Technical Parameters

We have two type machines. You can choose a suitable one.

Model	YB-100	YB-300
Packing speed	30-220 bags/min	30-180pcs/min
Width of film	90-220mm	90-330mm
Making bag size	L65-160mm,W30-100mm,H5-35mm	L90-240,W30-140mm,H5-40mm
Total power	2.7kw	2.7kw
Power supply	1Ph.AC220V,50/60Hz	1Ph.AC220,50/60Hz
Machine size	L4000W950H1600mm	L4000W1100H1700mm
Net weight	400kg	500kg

Usage:

Applicable for packing bread, chocolate, biscuit, vitelline pie, lollipop, elastic,moon cake, ice cream and so on .

Function and features:

1. Computer/PLC control, high sensor photoelectric color chart tracing .

2. The bag length need not be set, machine could detect it automatically.

3. High performance machine, simple operation and high packing speed.

4. Gear system besides double frequency converter controller, which making machine simpler operation, high-speed working more stable.

5. Color touch screen and machine can be installed into code printer to print 1-3 lines.

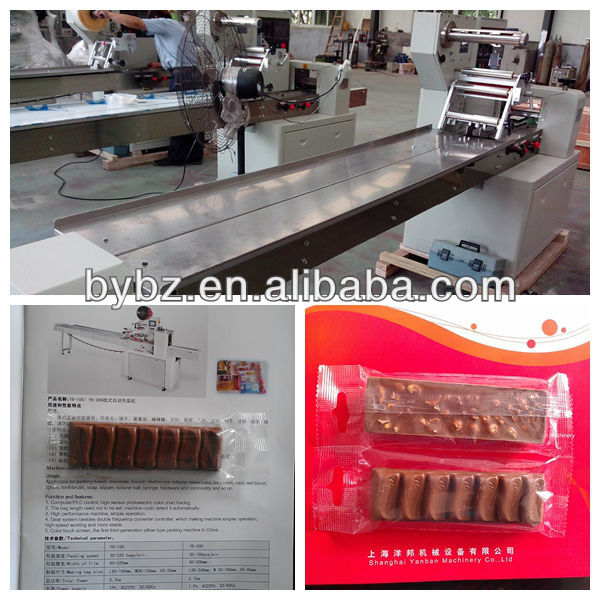

Machine photos:

Customers Visit:

Company: SHANGHAI YANBAN MACHINERY COM.,LTD

Website: www.yanbanmachinery.com

Type:	Other	Condition:	New	Application:	Food
Packaging Type:	film roll	Packaging Material:	Wood	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	220V	Power:	2.7KW
Place of Origin:	Shanghai China (Mainland)	Brand Name:	YB	Model Number:	100
Weight:	550kg	Dimension(LWH):	L4000X W950X H1600(mm)	Certification:	CE
After-sales Service Provided:	Engineers available to service machinery overseas	seal type:	pillow bag	screen:	color touch screen
controller:	PLC control	Width of film:	90-220mm	system:	gear system
frequency:	double	usages:	candy bar wrapping machine	optional:	code printer
warranty:	1 year	making bag size:	L65-160mm W30-100mm H5-35mm
