Auotomatic Wrapping Machine for lollipop
1)PLC control
2)Speed:120pcs/min
3)High efficiency
4)High quality

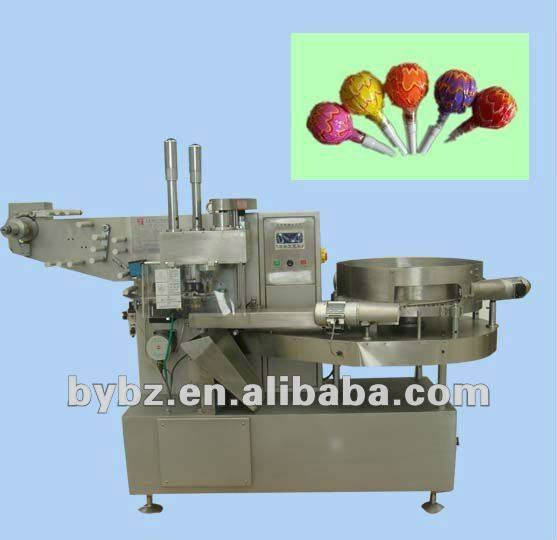

YB-350 High Speed Automatic Wrapping Machine for Lollipop
Machine function/features:
1. PLC control system, featured with logical structure, so that very stable performance and easy to operate.
2. It is mainly composed of automatic sorting device, auto tracking system, standard tongs, lollipop conveyer chain, paper packing device, packing knot, rotating plate device, and heat sealing knotting device.
3. With state-of-art technology, stable performance, this machine not only could reduce labor cost, but also could increase the sanitary standard and packing quality of candy, which could considerably increase the production efficiency of the enterprise.
4. The color code tracking system of trademark corrector is controlled by microcomputer, and featured with correct and reliable operation, coordinated acting on paper feeding, wrapping paper, heat sealing, knotting etc.
5. The electric control system is equipped with photoelectric tracing circuit. When there is no candy at the start of the machine, the paper would stop at same time, so that waste no paper.
Technical parameters:
Model |
YB-350 High Speed Wrapping Machine for Ball Lollipop |
Diameter of lollipop |
20-28mm |
Power of main motor |
0.75kw 380v |
Power of brushing motor |
4×60w 380v |
Power of paper feeding motor |
0.2kw 220v |
Heating sealing pipe |
0.15kw×6 24v |
Air pressure |
0.2-0.5Mpa |
Packing capacity (According to standard shape candy) |
1000-2000kg/8h |
Machine dimensions (mm) |
2500×900×1500 |
Packing wooden box (mm) |
2450*1020*1800 |
Machine weight (kg) |
1200 |
Type: |
Wrapping Machine
|
Condition: |
New
|
Application: |
Food
|
Packaging Type: |
Film,plastic roll film
|
Packaging Material: |
Wood
|
Automatic Grade: |
Automatic
|
Driven Type: |
Electric
|
Voltage: |
380v
|
Power: |
1.2KW
|
Place of Origin: |
Shanghai China (Mainland)
|
Brand Name: |
YB
|
Model Number: |
YB-350
|
Dimension(L*W*H): |
2500*900*1500mm
|
Weight: |
1200kg
|
Certification: |
CE
|
After-sales Service Provided: |
Overseas third-party support available
|
operation panel: |
man-machine interface
|
controller: |
PLC/Computer
|
packing capacity: |
1000-2000kg/8h
|
packing rate: |
100%
|
warranty: |
1 year
|
seal type: |
pillow seal
|
Diameter of lollipop: |
20-28mm
|
touch material: |
SS304
|
