YX/EM60 Automatic twisted Marshmallow machine
Shape changeable,extruded type
Automatic PLC control system
Europe technology
YX/EM60 Automatic twisted marshmallow machine Shape changeable,extruded type Automatic PLC control system Europe technology
Competitive price
A popular product, manufactured in a vast variety of shapes, sizes and colors, single rope form, multi-strand, co-extruded, twisted, the list is almost endless, sugar, glucose and water are boiled to a fix concentration, cooled and blended with a whipping agent. Following this,
the base syrup solution is aerated and extruded onto the YX finishing line where the final product is conditioned and cut into a predetermined size prior to packaging.

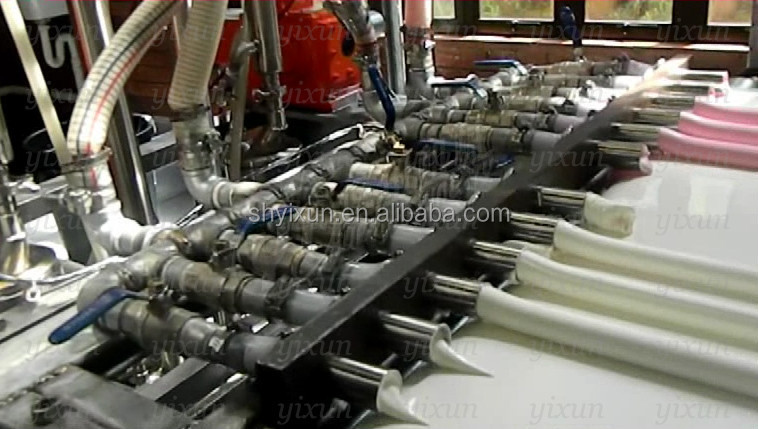

Prior to the extrusion, the aerated mallow can be diverted into a number of streams and individually colored thus creating multi-colored ropes. The extruded marshmallow line can be adapted to produce traditionally starched product as well as product enrobed in chocolate or compound coating.
Though the basic ingredients are mixed in a different ratio, the basic process for deposited marshmallow is similar to the extrude marshmallow.
The difference lies in the manifold and finishing line.
Deposited marshmallow has a short structure, as the product is deposited in a mould which is either starched, sugared or waxed. After conditioning, the product will be de-moulded and packed.
U Description of PROCESS FLOWING CHART:
Ingredients weighing and dissolving à Cooking à Cooling à Mixing à Continuous
Add Additives
aerating à Cooling , Storage and warm-keeping , mixing à Air-film pump transporting
Add flavor and color
à Force transporting à Automatic starch feeding à Rotation extruding à Starch Covering à Cooling and conveying à Cutting à De-starching à Putting in the trays à
Blends icing sugar spraying
Drying à Separating and de-starching à Conveying à Starch cleaning ( With de-dust )
à Forming and conveying à Final products à Packaging

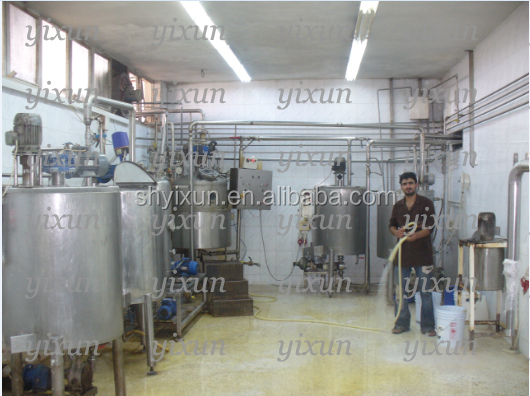

Equipments:

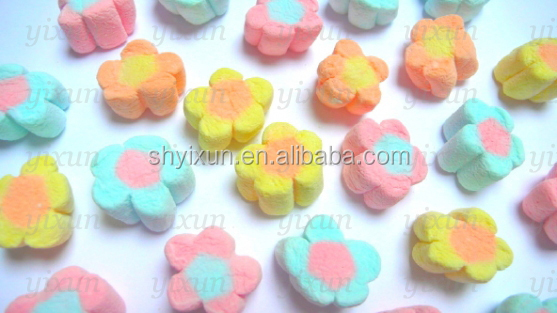

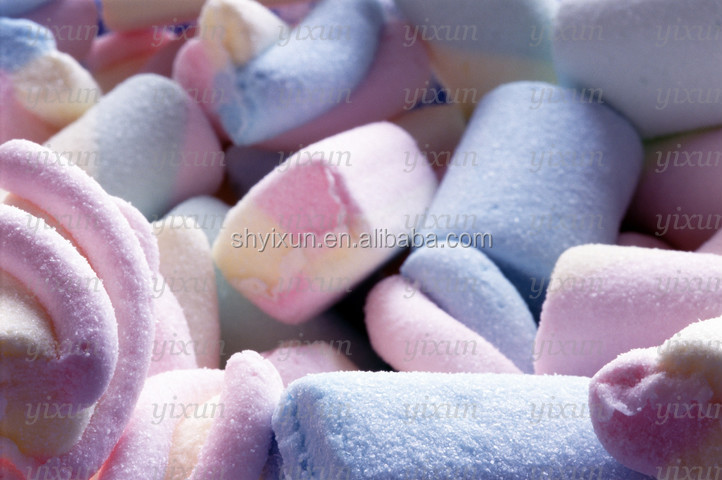

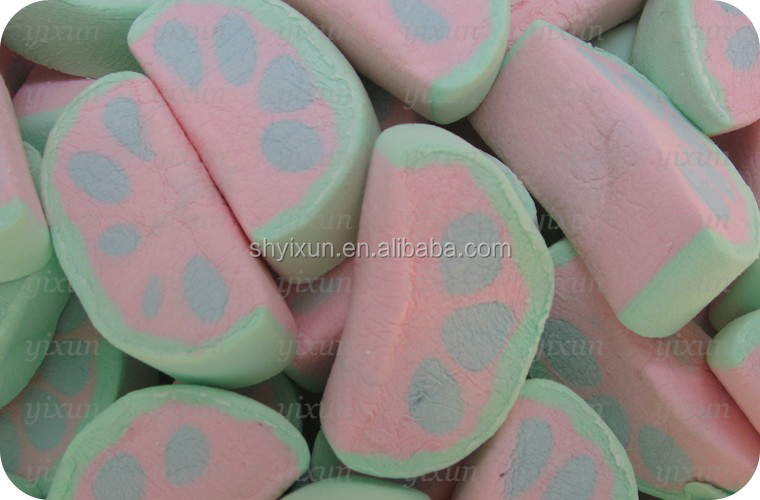

Product sample:

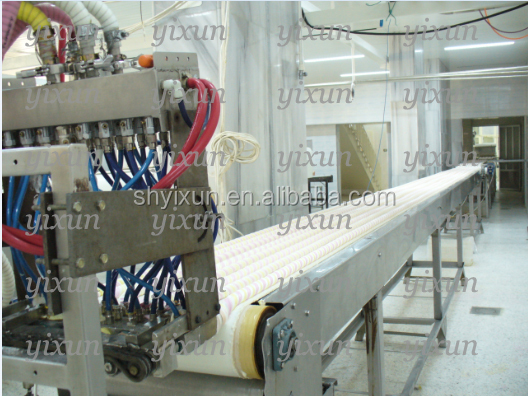

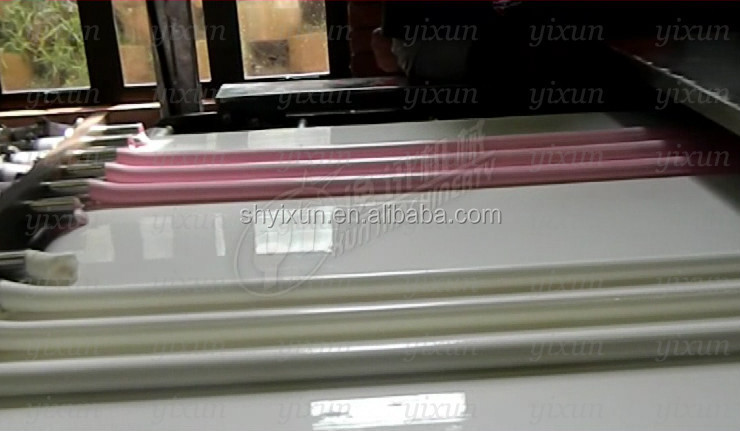

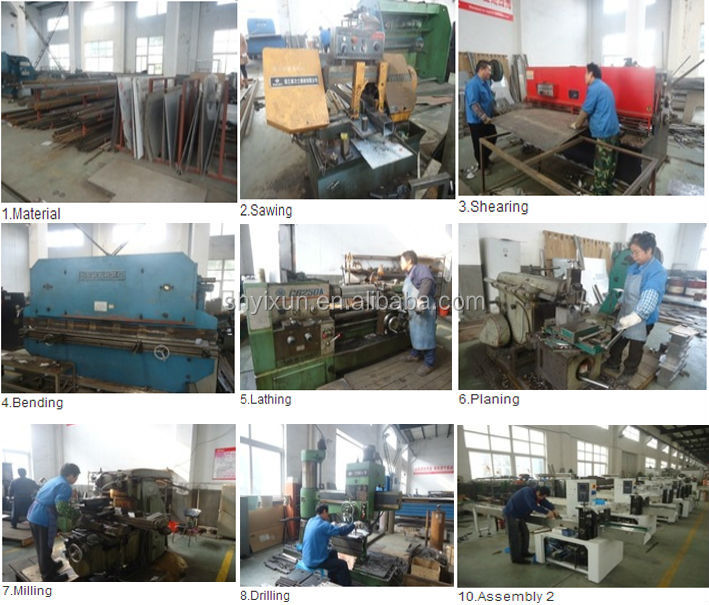

Producing process:
Container loading:
Certiicates:
Condition: |
New
|
Place of Origin: |
Shanghai China (Mainland)
|
Brand Name: |
YIXUN
|
Model Number: |
EM60
|
Application: |
marshmallow
|
Voltage: |
380v
|
Power(W): |
30kw
|
Weight: |
8000kg
|
Dimension(L*W*H): |
20meter long
|
Certification: |
CE
|
Warranty: |
1year
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
Capacity: |
60-80kg/h
|
Cutting length of product: |
20-160mm
|
Power: |
30kw/380v
|
Steam pressure: |
0.2-0.6Mpa
|
Room temperature: |
20-25degree
|
Humidty: |
55%
|
Main material: |
SS304
|
Electronic parts: |
SIEMENS
|
Certificate: |
CE
|
Standard: |
ISO
|
