z blade kneader for dough/honey/chewing gum high viscosity food mixing

FOB Price:Price can be negotiated

Production Capacity:500 Unit/Units per Year

Payment Terms: US $1,700 - 56,000 / Unit

Update Time:2023-08-09

Contact Supplier

Product Description

Lass="description"> 1,z blade kneader for dough/honey/chewing Gum
2,Application:DMC,BMC,Pigment paste,paint,butyl,plastic,sealant..
3,electric ,st

z blade kneader for dough/honey/chewing gum high viscosity food mixing

Introductions

1 , Workiing Principle .

Kneader mainly including:Kneading Part,Machine Base,Hydraulic System,Drive System & Electrical Control System.

Hydraulic system is controlled by a set hydraulic station to operate hydro-cylinder including Tilting Dumping,Cover opening etc,it’s simple to operate & reliable.

Drive system mainly including Motor,Reducer & Gears.motor power mainly according to capacity of kneader.

2 , Heating:

Kneader can be designed to Heating & Unheated type.Heating way generallt is:Electric heating,Steam heating ,Thermal Oil heating.Cooling by water.

3 , Discharging way:

There are 3 main discharging way:Hydraulic Tilt Dumping,Bottom Valve Discharge & Extrusion screw discharging way.

Cyliender and balde part which contact product are made from SUS 304,to assure product quality.

4,Feature,

Generally machine adopt pass chassis which are convenient to install.

Reducer mainly adopt Cycloidal need type or Hard tooth surface,to make machine with stable driving,small noise and longlife time.

Mixing blade and inside of machine adopt SUS304 or SS316L,to insure produce purity

Shaft seal with advanced feature & good sealing effect

Electric Control Panel mainly including main engine drive,Hydraulic tilt dumping,Hydraulic open cover & Thermostatic control.

5,Main Type

Kneader mainly including Ordinal ,Pressure,Vacuum,High Temperature type.

6,material:

Carbon steel Kneader,Stainless steel Kneader & Special material kneader.

7,Discharging way:

Hydraulic Tilt dumping,Bottom valve discharging & Screw Extrusion discharge

8, capacity: 2-8000 Ltr

9,According to load:

Standard & Weighting strength type

10,Application

Main application : Chewing gum,Tooth paste,Plastic,Rubber,Silicone sealant,Dye,Color,Paint,Printing ink,Food Gum base.Carbon,High viscosity sealant,Glass glue,Silicone resin etc.

Also can be widly used in High viscosity, High elastic-plastic material’s mixing,kneading,crushing ,rejoining etc.

Below is main CONFIGURATION of our Z Arm Kneader for ur ref:

Modle	Capacity	Stirring speed	Main motor power	Steam heating pressure	Electric heating	jacket	Dimension(mm)	Weight	Price
Modle	Capacity	Stirring speed	Main motor power	Steam heating pressure	Electric heating	jacket	Dimension(mm)	Weight	USD
NH-500L	500L	37,21(rpm)	15,/18.5Kw	0.3Mpa	16.2Kw	With colling jacket	300010001500	3000kg	12000
NH-300	300L	37,21(rpm)	7.5, /11KW	0.3Mpa	6Kw	With colling jacket	18008001400	1600kg	8500
NH-100	100L	35,22(rpm)	4/ 5.5	0.3Mpaa	4Kw	With colling jacket	16457751540	1250kg	5800
NH-40	40L	45,23(rpm)	2.2	0.3Mpa	4Kw	With colling jacket	11701100480	560kg	4800
NH-1000	1000L	35,25(rpm)	20/30/37/45	0.3Mpa	25Kw	With colling jacket	345013001600	4500kg	17000
NH-1500	1500L	30,16(rpm)	22/30/37	0.3Mpa	32.4Kw	With colling jacket	3600142014800	5800kg	20000
2000L	2000L	45,30(rpm)	45Kw	0.3Mpa	Use steam heating	With colling jacket	390016002100	6500kg	24000
NH-5	5L	33,23(rpm)	0.75Kw	03Mpa	1Kw	With colling jacket	650400705	300kg	2200

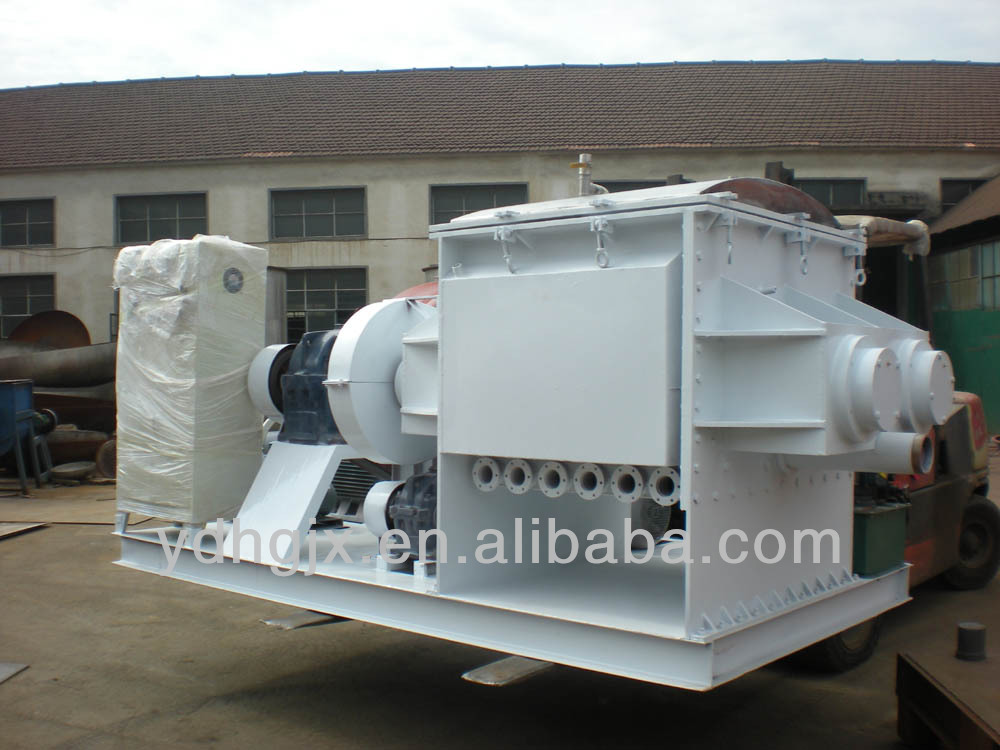

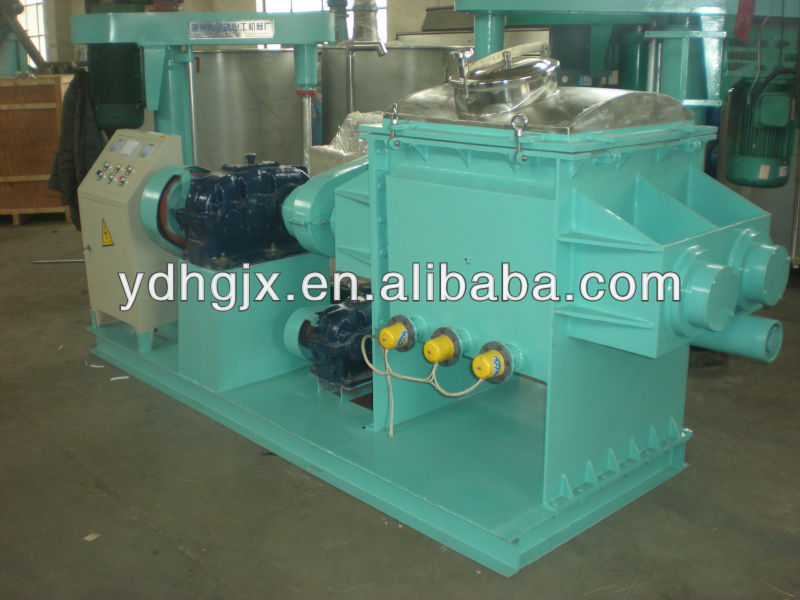

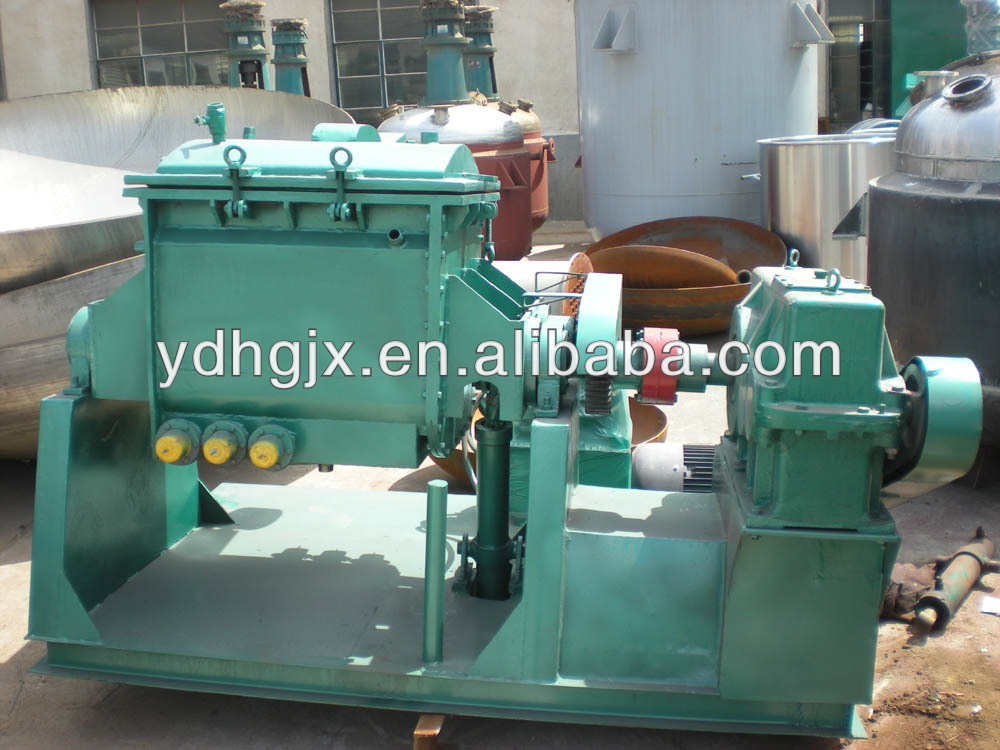

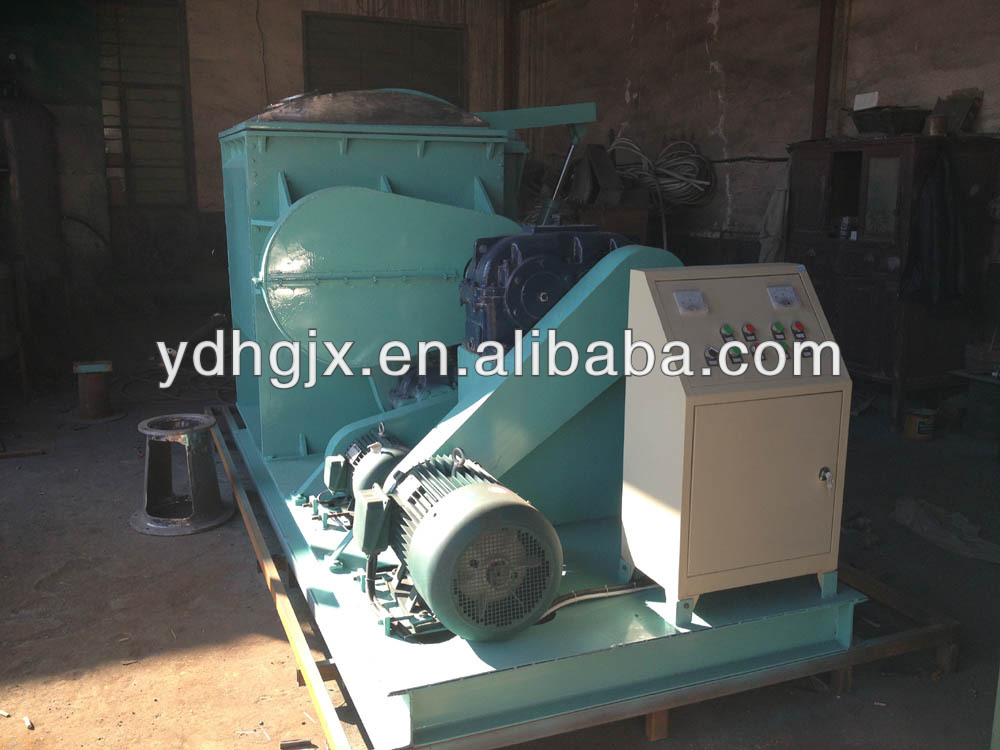

Product shows:

If any interest,pls feel free to contact me,

Kind Regards

Jolin ,

Condition:	New	Mixer Type:	Agitator	Application:	Viscous Fluid
Place of Origin:	Shandong China (Mainland)	Brand Name:	yuanda,YD	Model Number:	YD-NH
Max. Loading Capacity:	8000 L	Voltage:	220/380/415V	Power(W):	50HZ/60HZ
Certification:	CE,ISO9002	Warranty:	12 Months	After-sales Service Provided:	Engineers available to service machinery overseas
capacity:	2-8000 ltr	material:	stainless steel/carbon steel	certificate:	CE
price:	lower price	ability:	mix and knead
