zhangjiagang top coconut juice filling machine,China SHEENSTAR price supplier

zhangjiagang top coconut juice filling machine

FOB Price:Price can be negotiated

Production Capacity:10 Set/Sets per Month coconut juice fi

Payment Terms: US $10,000 / Set

Update Time:2014-09-16

Contact Supplier

Product Description

1.COCONUT JUICE Filling Machine
2.Applicable:juice,tea,water
3.Bottle:PET bottle:0.25-2.5L
4.Capacity:1500BPH-20000BP

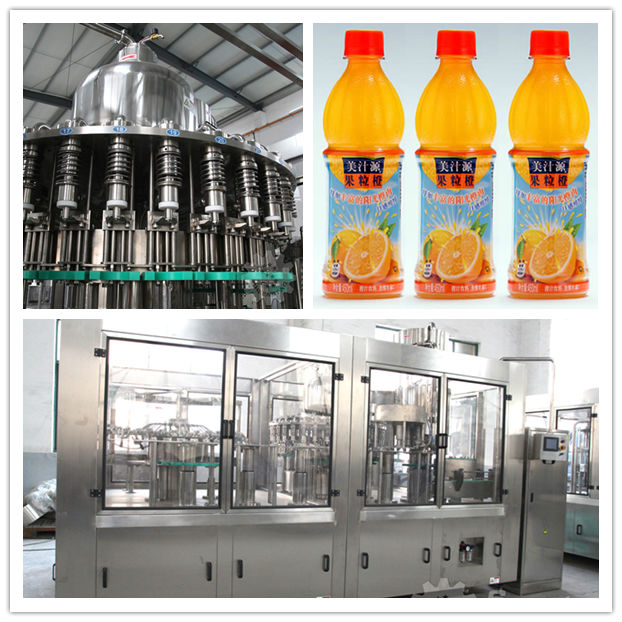

Automatic coconut juice filling machine

INTRODUCTION:

The machine is mainly used in the beverage filling operations.

The three functions of bottle wash, fill and seal are composed in one body of the machine.

The whole process is automatic.

The machine is used in filling juices, Mineral Water and purified water in bottles made of polyester and plastics.

The machine can also be used in hot filling if being installed with temperature controlling device.

The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.

The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted.

There the output and benefit of the machine is higher than the machines of the same specifications.

The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.

It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.

The filling category of lower vacuum (Z type machine) is applicable in glass bottles, filling alcohol, soy and such like materials.

The aluminum theft proof cap and plastic cap can be adopted.

The machine is an idea-preferred equipment for beverage makers.

WASHING

FILLING

CAPPING

Technical data

Model	RXGF8-8-3	RXGF12-12-5	RXGF16-12-6	RXGF-16-16-6
Production capacity (500ml)(b/h)	1500-2000	2000-2500	3000-4000	4000-6000
Filling precision	±2mm(Liquid Level)
Polyester bottle standard(mm)	(Bottle Diameter):Φ50-Φ100(Height):150-310
Suitable cap shape	Plastic Screw Cap
Water pressure of washing bottle(MPa)	0.2-0.25(Mpa)
Wash bottle consumption water (kg/h)	600	700	800	1200
Spraying position	5	5	5	5
Dripping bottle position	3	3	3	3
Gas source pressure(Mpa)	0.6	0.6	0.6	0.6
Gas consumption(M3/min)	0.1	0.1	0.1	0.1
Power(kw)	2.2	2.2	4.4	4.4
Weight(kg)	2000	2100	2200	2800
Dimensions(L×W×H)(mm)	200016002200	210016502200	223016302250	236018302250

Model	RXGF-16-16-6	RXGF24-24-8	RXGF32-32-10	RXGF40-40-12
Production capacity (500ml)(b/h)	4000-6000	6000-10000	10000-15000	15000-20000
Filling precision	±2mm(Liquid Level)
Polyester bottle standard(mm)	(Bottle Diameter):Φ50-Φ100(Height):150-310
Suitable cap shape	Plastic Screw Cap
Water pressure of washing bottle(MPa)	0.2-0.25(Mpa)
Wash bottle consumption water (kg/h)	1200	1800	2400	3000
Spraying position	5	8	12	16
Dripping bottle position	3	4	7	9
Gas source pressure(Mpa)	0.6	0.6	0.6	0.6
Gas consumption(M3/min)	0.1	0.4	0.5	0.5
Power(kw)	4.4	5.2	6.2	7.8
Weight(kg)	2800	4500	6000	7000
Dimensions(L×W×H)(mm)	236018302250	290022002250	388022002250	370030002350

Any questions about PET bottle juice filling machine ,please contact us, sincere service for you.

Type:	Filling Machine,Automatic	Condition:	New	Application:	Beverage
Packaging Type:	Bottles	Packaging Material:	Plastic	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	220v	Power:	2.2KW
Place of Origin:	Jiangsu China (Mainland)	Brand Name:	SHEENSTAR	Model Number:	RXGF(DD)
Dimension(LWH):	210016502200	Weight:	2100KG	Certification:	BV,CE,SGS,CE,ISO
After-sales Service Provided:	Engineers available to service machinery overseas	Name:	pet bottle juice filling machine	Color:	Silver
Material:	Stainless steel	Feature:	Three in one	Filling type:	Juice filling
Processing:	Filling Machine	Processing Types:	Juice

Company Profile

Name: Zhangjiagang Sheenstar Technology Co., Ltd.

Main Products: Beverage machine: Filling machine (Water filling machine,Carbonated drink filling machine,Juice/tea filling machine),Water treatment system(producing only beverage)

Business Type: Manufacturer, Trading Company

Total Employees: 11 - 50 People

Established Year: 2010

Main Markets: Mid East, Southeast Asia, Domestic Market, South America, Africa

Address: Zhaxi Village, Leyu Town, Zhangjiagang

Zhangjiagang Sheenstar Technology Co., Ltd. is a professional manufacturer of beverage packaging solutions. We supply water treatment, water filling production line, carbonated drink making filling production line, juice making filling production line, 5 gallon filling production line, labeling machine and shrink packing machine. With our machines, bottles can be plastic bottle, glass bottle barrel and cans. In other words, customized machines can be produce according to client's requirements.
We supply our machines Mainly to South East Asia, Middle East, Africa and South America and South East,more than 40 countries.
We have been focusing on the researches and developments, since they are our key of enterprise innovation. They make us better doing in production, technical services and marketing sales.
We supply high quality machines and great professional after-sale services. Our goal is to make customers satisfied and value maximized. We normally provide 12 months warranty and 12 months wear out spare parts. Engineers are available to go to customer's factory and install machines,teach them the way to maintain the machines.
Sheenstar is located in the Yangtze River Industrial Park of Zhangjiagang City which is near by Shanghai. Transportations are very convenient.
Welcome to visit our factory and evaluate our products. Hope to cooperate with you. more
