ZJR-10 food processing machine,peanut butter processing machine,cocoa powder processing machine,China YK price supplier

                 ZJR-10 food processing machine,peanut butter processing machine,cocoa powder processing machine

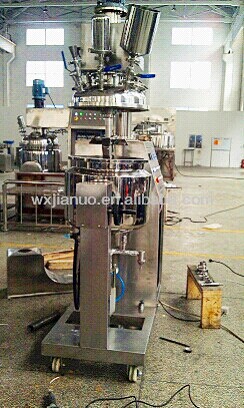

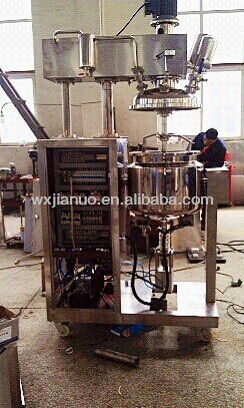

  ZJR-10 food processing machine,peanut butter processing machine,cocoa powder processing machine are composed of emulsifying pot(fluctuating cover, overturn form kettle), water pot, oil pot, vacuum system, heating and temperature control systems, cooling systems, electric machinery control systems, etc.

  After the materials are heated & mixed in water pot and oil pot, they are drawn into emulsifying boiler by the vacuum pump. Adopting the middle stirrer & Teflon scrapers residues in emulsifying boiler that sweep the residues on the wall of the boiler makes the materials wiped off become the new interface constantly. Then they are cut off, compressed and fold by the blades to stir, mix and run to the homogenizer. By the strong cutting off, impact and turbulent current from the high-speed shear wheel and fixed cutting case, the materials are cut off in cut interstices and turn to particles of 200nm-2um promptly. Because the emulsifying boiler is under vacuum state, the bubble that produces in the course of mixing is taken away in time.

  The pot cover is automatic rising type. The material was directly drawn into the emulsifying boiler from oil boiler and water boiler based on a pipe that is under vacuum state. The discharge is based on turning the emulsifying boiler. And the heating system is electric heating and steam heating by the heating pipe, which the temperature is controlled automatically. Put the cool water into the intercalated bed so as to cool the material, simple and convenient (have a warm layer outside intercalated bed). The homogenizer and the blade stirring can together work and separate work. The material sliming, emulsification, mixing, dispersing etc. can be finished during short time. Contact position adopts high-quality stainless steel (medical use adopts 316L material, the interior surface is mirror polish, Vacuum agitating device is hygienically, it is made according to the normal hygiene standard of GMP and is the most idea production equipment.)

  1, warranty time: one year, from the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely.  But buyer should pay for the airticket, living there charge of our engineer..

2, commissioning services: the product`s installation and commissioning at the demand side, our engineers will not leave there until get your agreement.

3, training services: our engineers will train your staff to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.

4, maintenance services: any malfunction happenedonce you enquiry us, we will reply you within 48 hours except the special reasons.

5, lifelong services:  we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.

6, certificate services: we can provide related certificates to customers freely according to the request of customers.

7,inspection services: you can ask the third part inspection company or your inspector to inspect the products before shipment.

8, the file: the Manual Specification, report of the material which used to the equipment.

About YK

Wuxi YK automation technology co., ltd includes three subsidiary companies: Wuxi jianuo delicate chemical equipment factory, Guangzhou jianuo machinery equipment co., ltd., Wuxi jianuo commercial trade co., ltd.  It is a technological innovation enterprise of a collection of R and D , manufacturing, sales and service . Our company is located in China’s Yangtze River Delta hinterland, Wuxi Zone, an area of 20,000 square meters. We have a reach team of engineer, with excellent design and development capacity. With the improved innovative experience over the years, the company has been committed to the development of new products and provides customers with the perfect personalized programs and products.

Our company’s existing products are divided into two series

 Classical-based products are:

Vacuum emulsifying mixer, LR homogenizer, Detergent dispersing vessel, Vacuum cream making mixer, Distiller Water Treatment, Storage tank, Lipstick Filling Machine, Double Planet mixer, Stainless steel vessel, 502 filling and screw-cap/sealing machine, Anaerobic filling machine,  gel filling and sealing machine, Silica gel distributing machine, many nozzle filling production line.

Leading technology products are:

High temperature and high pressure mini reaction vessel for laboratory.

Full-automatic silica gel filling screw-capping machine

High viscosity sauce filling machine

The process of enterprise development:

In June, 1998, we founded in Wuxi Jianuo Delicate Chemical Equipment Factory.

In February, 1999. Our company successfully developed the first instant glue soft tube filling and sealing machine in domestic.

In April, 2000. Our company successful developed the first A.B glue filling and sealing machine in domestic.

In June, 2002. Our company successfully developed the vacuum emulsifying mixer with PLC control.

In May, 2003 . Our company successfully passed ISO9001 quality system certification.

In May 2005. Our company independently research and develop the ZJR-1300Liter vacuum emulsifying mixer. And export to America.

In December, 2005. Our company independently researched and developed the 1000Liter Spiral mixer and export to Spain.

In December, 2005. Our company independently researched and developed the SXJ-1300 and YLS-1300 Silicon production line. And export to Spain.

In March,2006 .Our company successfully passed the international European CE certification.

In December, 2006. We corporate with Canada and established Wuxi YK Automation Technlogy Co., Ltd.

In May, 2007. The new vacuum emulsifying mixer are export to Germany.

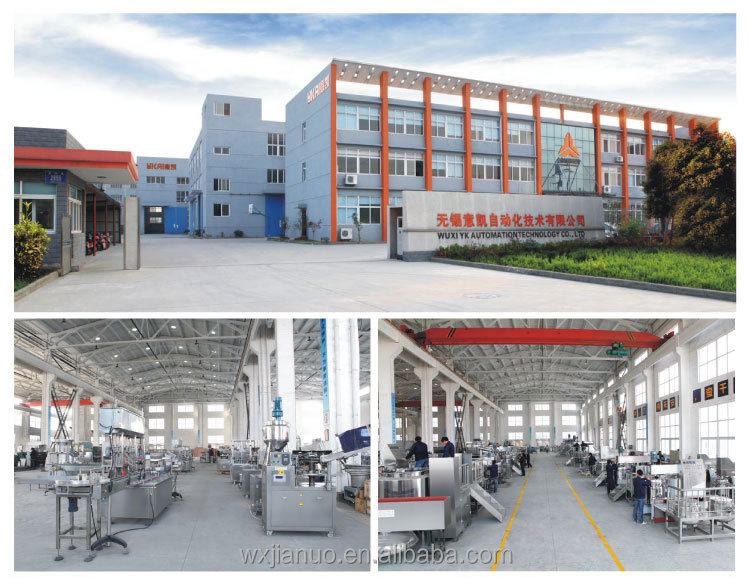

In March, 2008. The 20000 square meters modern production base are established.

1. Why your machine similar with other supplier?

 We are an  overseas-funded enterprise.  We are manufacturer and had been in this industry for more than 17 years, with more than 9 years export experience. We design machines by ourselves with advanced technology. Appearance just a part of machine,  Service and quality is more important  than it.

2. I'm new in our industry, but I'm planning to setup a factory, What can I do?

We can suggest customer the most suitable machine according to their formula, Raw material. Manufacturing- Installation- Training- Maintenance- Technical Support. We can introduce you supplier of raw material, bottles, labels etc. We could take you to our customer's factory to learn how they produce. We could customize machines according to your real need, We could send our engineer to your factory to install machines and train your worker of Operation and maintenance. Any more requests. Just let us know.

3. What kind of machines can you supply to customer?

We could offer various kinds of machines and whole production line.

1.  Cream, paste Products ,

    In cosmetic industry: face cream, body cream, washing cream,vaseline etc

    In food industry industry: sauce, ketchup, tomato paste,  mayonnaise, mustard, chocolate etc

    In chemical industry:welding paste,ink, paint,pigment etc.

Production line for them:  RO water treatment- vacuum emulsifying machine- storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc

2.  Liquid products

shampoo, lotion, liquid soap, detergent,juice,solution etc.

Production line for them:  RO water treatment - liquid wash mixer- - storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc

  3. Make-up products

Lipstick, lip gloss, nail polish, marscara etc

Machines for them:  homogenizer mixer, colliod mill, lipstick filling machine, frezzing machine etc

4.adhesive products

Instant glue, AB glue, silica gel, anaerobic adhesive,silicon, sealing etc.

 Machines for them: double planet mixer, ribbon blender, tube filling and sealing machine, hydraulic distributing machine, cartridge filling machine etc
