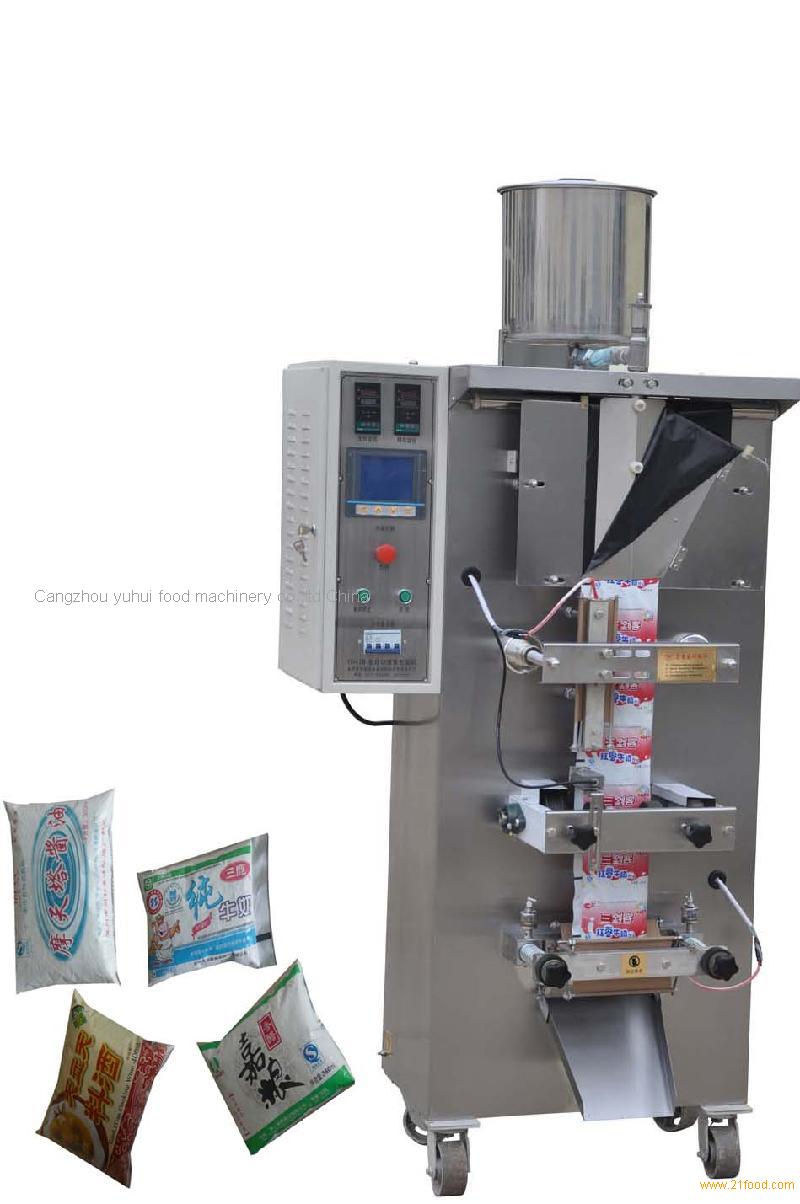

Automatic liquid packing machine is widely used for various kinds of liquid package such as milk,soybean milk,fruit juice,beverage,soy sauce,vinegar,wine, detergents etc. It has been the national patent(ZL200420029268.x).
1.Single cam control.
2.Automatic bag molding ,code printing,filling,sealing,counting,cutting at one time finished.Operaton simple.
3.Film materials:multi-layer complex film,black and white resistance oxygen wrap film,high-temperature cooking film, high-pressure polyethylene film etc.
4.Microcomputer intelligent instrument control the temperature of heating.
5.Sealing type:side seal.
6.Photoelectric tracking,Length can be adjusted and displayed.
7.Ultraviolet sterilization lamp.
8.Stepper motor drivers lead film system.
9.Date code type:steel letter punch.
10.Machine run smoothly with low failure rate.Alarm device.
| voltage
|
380V+N/220V
|
| power
|
1KW
|
| filling type
|
gravity tank, constant pressure, flow automatically , filling
|
| accuracy
|
±1.5%
|
| capacity
|
100-1000ml/bag
|
| film width
|
max320mm
|
| speed
|
20-30bags/min
|
| machine size
|
700×660×2000mm
|
| Net weight
|
235kg
|
Gross weight 335kg
CangZhou YuHui Food Machinery was established in 1998.Located in HeBei province,120km from TianJin Port,220km from BeiJing.It is growing into a international oriented company with her more than 10 years professional experience in the field of liquid packing machinery.During the past ten years,we have established the full manufacturing process from design,quantity production,quality control,to fabrication and technical support.Up to now,70% of our products has been widely used in many countries such as Afghan,Syria,India,USA,UAE,Vietnam etc.
The most products of CangZhou YuHui Food Machinery Co.,Ltd have gotton the patents by the People's Republic of China Intellectual Property Office.
