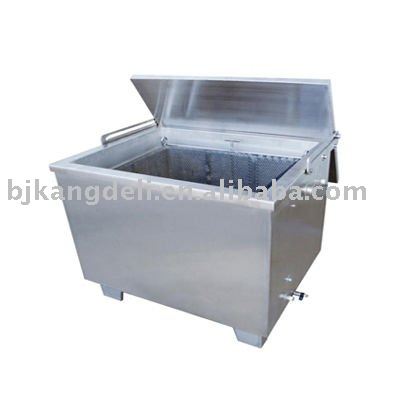

Automatic blending steaming and boiling machine,China jingbao price supplier

Automatic blending steaming and boiling machine is designed to heat materials in the box such as dried Bean Curd rapidly at constant temperature employing indirect heating method with steam jacket. In the meantime, it conducts harmless turning of the materials in the steaming and boiling box such as bean curd sheets with automatic timing by employing the pneumatic principle. This method has solved many technological problems in steaming and boiling process such as non-uniform steaming and boiling, irregular color on dried bean curd, easily damaged dried bean curd surface with manual or mechanical blending. Connecting several steaming and boiling boxes, thick gravy mixing tank and pump body and adopting our control actuator can realize automatic gravy dosing, steaming and boiling, boosting significantly productivity and reducing labor cost while saving energy and optimizing the working environment. This equipment is characterized by rapid heating, constant temperature, even color of pot stewed product, convenient to clean, less space taken up, energy efficient and environmental friendly. It is particularly suitable for steaming, boiling and pot stewing of Bean Products and meat product.

Features of the automatic blending steaming and boiling machine

1Air-powered timed automatic blending causes no harm to the surface of pot-stewed product.

2Uniform steaming and boiling solves the problem of rough surface of pot-stewed product.

3Rapid temperature rising saves energy and reduces emissions.

Model:ZZX-150 ZZX-300

Name: automatic blending steaming and boiling machine

Dimension:1000×800×950mm 1300×1000×1050mm

Dimension of boiling basket:800×600×650mm

Steaming and Boiling amount:150kg at a time

Steam pressure:0.3-0.5MPa
