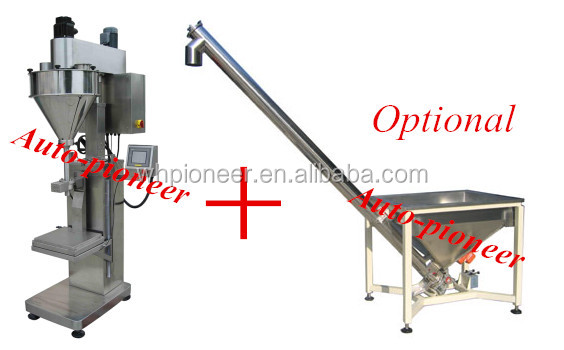

semi automatical  powder filling machine

2)  Flawless performance

 This filler can be used as an individual filling machine for hand filling operation as well as it can be attached with any type of automatic packaging machine.

5) High accuracy on this filling system is achieved due to smart design of auger screw, very sophisticated clutch brake and encode control system

6) All the contact parts of this auger filler are made of stainless steel which makes the parts corrosion resistant in addition to longer functional life

Model

XF-1A-22

XF-1B-321

XF-1B-423

Control system

PLC & Touch Screen

PLC & Touch Screen

PLC & Touch Screen

Hopper

Quick disconnecting hopper 25L

Quick disconnecting hopper 50L

Split   hopper 50L

Packing Weight

5~ 15g 15~50g

  50~100g 100~500g

 500~1000g

Packing Weight

≤ 100g, ≤±2%; 100 – 500g, ≤±1%

≤ 100g,≤±2%;100 – 500g,≤±1%;≥500g,≤±0.5%

≤ 100g, ≤±2%;100-500g, ≤±1%;≥500g, ≤±0.5%

Filling speed

40 – 120 times per min

40 – 120 times per min

40 – 120 times per min

Power supply

3P  AC208-415V  50/60Hz

3P AC208-415V 50/60Hz

3P AC208-415V 50/60Hz

Total Power

0.93 Kw

1.4Kw

1.4Kw

Total Weight

130kg

260kg

280kg

Overall Dimensions

800×790×1900mm

1140×970×2200mm

1140×970×2200mm

Descriptive abstract:

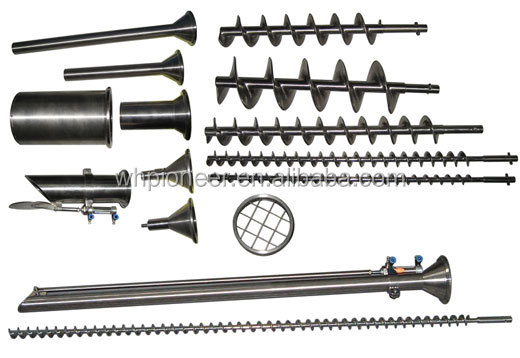

Accessories used with a particular filling machine will depend on a variety of factors, including: product flow characteristics and density, filled amounts, containers size & configuration, filling times, and accuracy. Before making the final selection and setup of accessories, the product and container should be tested to ensure the machine will fulfill your requirements. All-Fill offers thorough testing services and facilities for the analysis of products and suitability of accessories.

Manufacturing Guarantee of Auto-pioneer

We Back Up All Our  Packaging Machines and Services With The Best Guarantee In the Industry.

We think you’ll agree. No one in the industry offers a guarantee this powerful. We can because we believe in our products and services. We know we can solve your problems, help you reach your production goals, and give you the best return on your equipment investment. How do we know it? Because that’s what we do, for businesses like yours, every day.

Performance Guarantee:

Our products are performance guaranteed to ensure you have the right equipment to do the job. We review your samples and test your new machinery with your products, containers, caps and labels. Your new equipment will perform, in your facility, to the performance specifications we test and quote. If it doesn’t and we are not able to modify or correct the machinery, you may reject the machinery and return it for a full refund.

Lead Time Guarantee:

When you have provided us everything we require to start the order, we commit to a ship date and stick to it. If we don’t have your equipment completed and ready to ship by the committed date, we will eat the cost of freight. Orders start when we have received signed Pro-Forma Invoice, Purchase Order, Down Payment, and Requested Product and Container Samples. Orders are considered ready to ship when all components have been crated or palleted and are ready to load on a truck.

Any of the parts solely manufactured or fabricated by A Packaging Systems is to be free of defect for a period of 5 years or we will repair or replace for FREE. With this type of warranty you know the equipment will last! We also use some of the industry’s best purchased components to make your machines. All purchased parts and components are covered for a period of ONE year from the date the equipment ships to you. These components include all electrical related parts, motors, gearboxes, pumps, pneumatics, etc. If you happen to find a defective part return it within one year of shipment and we’ll replace it at no cost. This guarantee does not apply to wear parts like o-rings, seals, tubing, gripper belts, spindle wheels, etc…
