packing machine for cocoa powder,China Auto-pioneer price supplier

packing machine for cocoa powder
FOB Price:Price can be negotiated
Production Capacity:100 Set/Sets per Week
Update Time:2014-09-20
Product Description

1,powder packing machine
2,3 Side Seal and 4 Side Seal or Back Seal
3,powder sachet
4, GMP CE ISO9001
5,Stainless steel #304

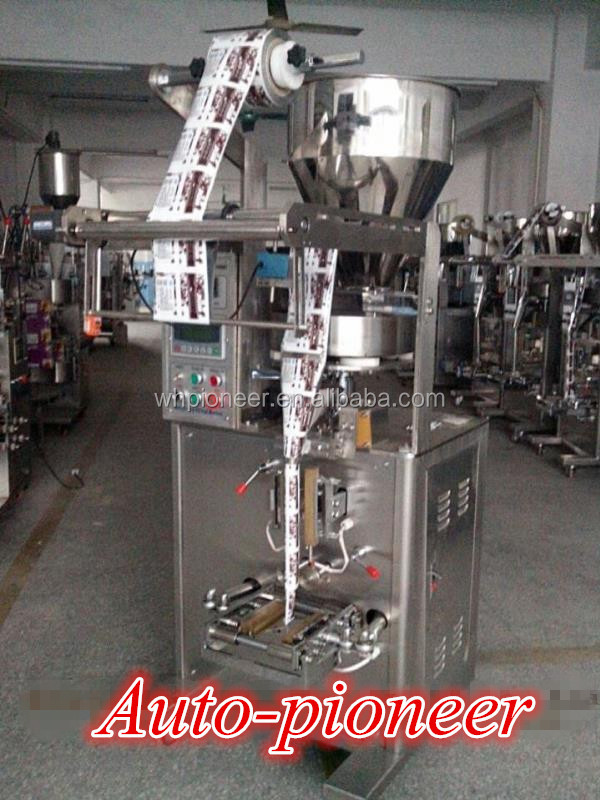

                Automatical powder packing machine



packing machine for cocoa powderCOCOA POWDER" data-width="804" data-height="80" ori-width="1280" ori-height="157" />



Feature of  Automatical powder packing machine



1)This machine can be finished all the process like measuring, filling, bag pulling and forming, sealing, cutting,counting, and Date code printing etc.

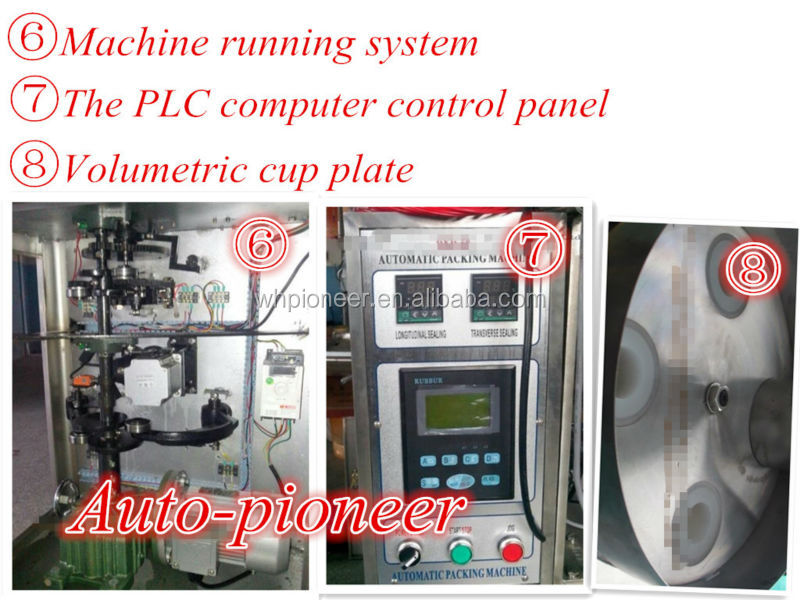

2)PLC control system, easy to control, just need to set up the required data parameter (like bag size), the control

system will automatically match with all the program to achieve the best packaging effect.

3) Stepper motor control, and high precise of the system, it do not need to adjust the other parts to the bag length change.

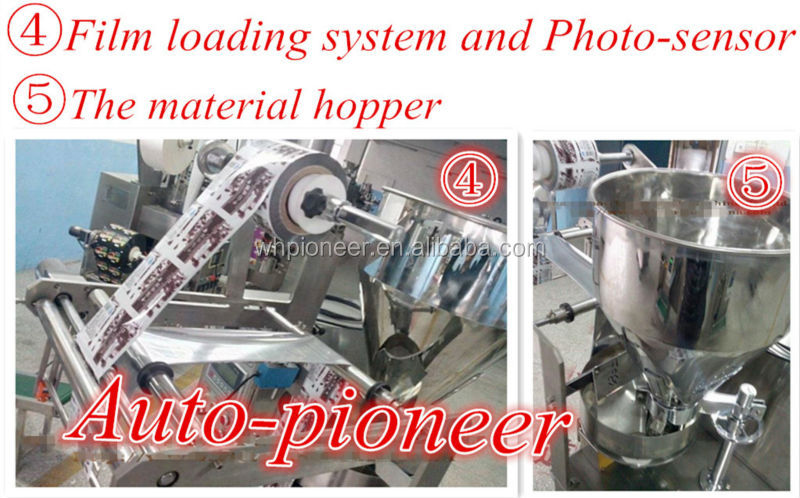

4) High sensitive optic photo sensor can automatically trace the color mark then the machine will cut a complete package bag

5) Suitable for a various of package film, good performance, low noise, and nice sealing.

 6) Fine packaging performance, low noise, clear sealing texture and strong sealing performance.
 7) With safe plastic box on rotating blade to avoid hurting operator's hands
 8) with one set of tool box and 1 sets of thermoelectric couple & heating pipes and 1 sets of blades and & Rotating Blade(be able to adjust the length of bag and shape of bag notch freely)
  9) Material is stainless steel 304; Meet the standard grade for food products and durable in using time.
10) Alarm System (You can set how many number on PLC control panel, for example 10000 pcs, when it up to this quantity, it will sound to remind you it finishs packing of 10000 pcs, it will begin to alarm when at 9995 pcs. )





  Technical parameter of the   Automatical powder packing machine

Model XF-GP
Machine speed 40~60 Bags/min
Range of measurement  5-330ml (5-80ml  Six cups on double trays )

50-330ml(Four cups on double trays)

0-5ml (fixed cup on single tray)

Bag size W:30-135mm  L:30-170mm

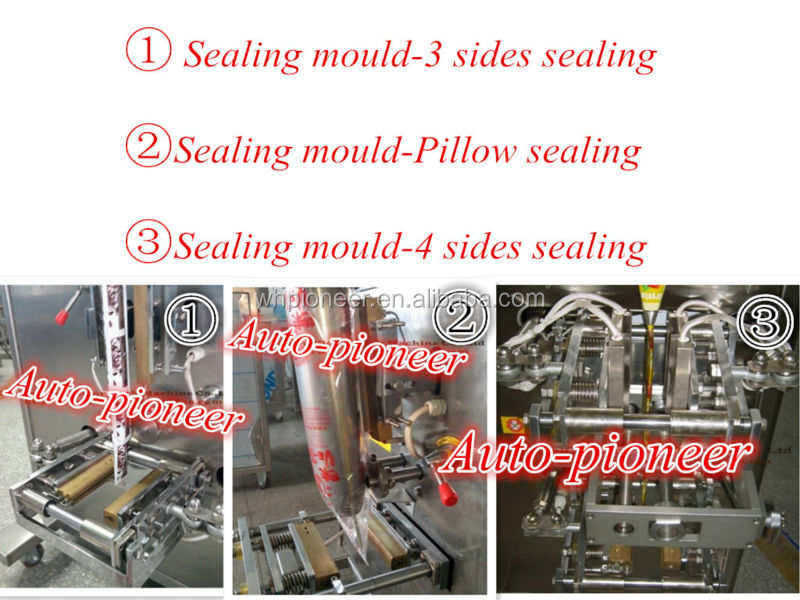

Bag type 4 sides sealing or 3 sides sealing ,pillow by changing sealing mould
Notch Flat cut / linked zigzag / zigzag cut / linked flat by changing blade
Voltage AC220V Single-phase 50HZ or 380V/50HZ three phase
Total Power 1.2KW
G.W 240KG
Control system Imported PLC Control System
Packing material Composite or Laminated film that can be heat-sealed, like: BOPP+CPP; PET+AL+PE; PET/Nylon/ PE. etc
Machine material Stainless Steel 304
Packing Machine Dimension 930×730×1700mm

Method of Measurement

  Cup type


  packing machine for cocoa powder



packing machine for cocoa powder
packing machine for cocoa powder
packing machine for cocoa powder
packing machine for cocoa powder





   packing machine for cocoa powder



  Applicable Scope of  Automatical powder packing machine

Granule packing machine can be widely suitable for packing the loose type and inviscid granule materials, the scope is about pharmacy, food, household chemicals, plastic products and other special industrial products, like seeds, Chinese medicine, feeding stuff, medicinal granules, small pills, Monosodium glutamate, salt, sugar, soup bases, oat, tea, active carbon, washing powder, desiccant, etc.

packing machine for cocoa powder
Different pouch of Automatical granule packing machine
packing machine for cocoa powder









packing machine for cocoa powder





K indly reminder  of  Automatical powder packing machine
Please tell us the following information when you send us an inquiry. Base on your message, we will suggest the optimum machine or options to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Filling material
4. Bag shape
5. Bag material



Manufacturing Guarantee of Auto-pioneer

We Back Up All Our  Packaging Machines and Services With The Best Guarantee In the Industry.

We think you’ll agree. No one in the industry offers a guarantee this powerful. We can because we believe in our products and services. We know we can solve your problems, help you reach your production goals, and give you the best return on your equipment investment. How do we know it? Because that’s what we do, for businesses like yours, every day.



Performance Guarantee:

Our products are performance guaranteed to ensure you have the right equipment to do the job. We review your samples and test your new machinery with your products, containers, caps and labels. Your new equipment will perform, in your facility, to the performance specifications we test and quote. If it doesn’t and we are not able to modify or correct the machinery, you may reject the machinery and return it for a full refund.



Lead Time Guarantee:

When you have provided us everything we require to start the order, we commit to a ship date and stick to it. If we don’t have your equipment completed and ready to ship by the committed date, we will eat the cost of freight. Orders start when we have received signed Pro-Forma Invoice, Purchase Order, Down Payment, and Requested Product and Container Samples. Orders are considered ready to ship when all components have been crated or palleted and are ready to load on a truck.

Workmanship Guarantee:

Any of the parts solely manufactured or fabricated by A Packaging Systems is to be free of defect for a period of 5 years or we will repair or replace for FREE. With this type of warranty you know the equipment will last! We also use some of the industry’s best purchased components to make your machines. All purchased parts and components are covered for a period of ONE year from the date the equipment ships to you. These components include all electrical related parts, motors, gearboxes, pumps, pneumatics, etc. If you happen to find a defective part return it within one year of shipment and we’ll replace it at no cost. This guarantee does not apply to wear parts like o-rings, seals, tubing, gripper belts, spindle wheels, etc…





packing machine for cocoa powder



packing machine for cocoa powder

Type:
Other
Condition:
New
Application:
Food,Beverage,Commodity,Medical,Chemical,Machinery & Hardware,Apparel,Textiles
Packaging Type:
Stand-up Pouch,Bags,Film,Pouch
Packaging Material:
Plastic,Metal,Glass
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
AC220V
Power:
1.2KW
Place of Origin:
Hubei China (Mainland)
Brand Name:
Auto-pioneer
Model Number:
XF-GP
Weight:
240KG
Dimension(L*W*H):
930*730*1700mm
Certification:
CE GMP ISO9001
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
packing machine for cocoa powder
Key Benefits:
Easy adjusting fill volume control
Apply for:
powder
Features:
Stainless steel sanitary tri-clamp connections
Control system:
PLC & Touch Screen
Bag size:
W:30-135mm L:30-170mm
Machine speed:
40~60 Bags/min
Film Max.:
330MM
Notch:
Flat cut / linked zigzag / zigzag cut / linked flat by changing blade
working process:
weight, bag-making, filling, sealing, cutting, lot number, cutting
