1.warranty:1year
2.certification:CE,SGS
3.automatic
4.stainless steel
5.moderate price
6.can be customized
Application
Main body is structure steel, whose surface is packed by stainless steel. The machine window's frame is from SUS304 stainless steel. The feet of stand is from SUS304 also, and its height is adjustable
It is applicable for pressure filler and capper of carbonated drinks in beer and drink industry. It is a pop canned beer in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent evelopment of the can filling, sealing unit. Filling and sealing is the overall designed, power system by filling sealing system to ensure that both the absolute synchronization and coordination. It adopts the advanced machine, electrical equipment, and pneumatic control technology. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can equip long distance control system according to the customers' request. It is the preferred equipment for the medium beer and beverage plant.
Major electrical components used in Japan Mitsubishi PLC, inverter and proximity switches, Siemens of Germany's Simulation output and solenoid valves of South Korea, it is all designed to the most reasonable configurations by the experienced electrical engineers of our company. The whole production speed can be in accordance with the requirements in the touch screen set, all common automatic fault alarm, and the corresponding location of the fault reason, according to the severity of failure, PLC automatically determine whether the host can continue to run or stop.
Rotary filling part
The filling system adopts isobaric filling principle. The liquid material tank is from stainless steel, inside or outside mirror polished. It is equipped with level controller. These valves are suitable for filling the beer.
Rotary capping part
1. There is a buffering system on the machine so that there is no can broken in process;
2. The can mouth is positioned automatically and the sealing mould shares good power distribution guaranteeing better sealing quality;
3. The sealing head with enough pressure so that there is no leaking after sealing;
4. Stable performance, low noise, less energy consumption and high working efficiency as well;
Technology parameters
| Model | YDGF12-1 | YDGF18-6 |
| Heads of filling, sealing | 12-1 | 18-6 |
| Production capacity(can/hour) | 1500-3000 | 5000-6000 |
| Can type(mm) | 200/202/206/209 | |
| Filling pressure(Mpa) | isostatic pressure | |
| Max.filling temp(℃) | 0-5 | |
| Total Power(KW) | 2.2 | 4 |
| Overall dimension(L×W×H)（mm） | 2200×1600×2200 | 2500×2000×2350 |
| Weight(kg) | 2650 | 4200 |
Packaging & Shipping
Packaging: International standard export package;
Terms: T/T, 30%down payment, and the balance 70% prior to the delivery out of factory. L/C, 30% down payment, and 70% L/C at sight
Shipping: 30 working days after receiving 30% deposit of total amount of contract or irrevocable L/C at sight.
ZHANGJIAGANG BEYOND MACHINERY CO. LTD is your one stop shop for all beverage bottling needs. Beyond Machinery is a premium manufacturer of the following bottling solutions:
· Complete small bottled water production lines (300-2000ml)
· Complete big bottled water production lines (3l-20l)
· Complete bottled Juice production lines
· Complete bottled carbonated soft drink production lines
· Complete bottled beer lines
· Bottled oil lines
· Water treatment systems
· Blowing machine
Besides this we manufacture all the related equipment for the bottling industry. These include:
· Reverse osmosis
· Carbon filters
· Water softener
· Ozone generating systems
· Bottle washers
· Fillers and cappers
· Sticker labeling machine
· PVC shrinking labeling machine
· Case-packers and shrink-wrappers
· Blow molding equipment for PET bottles.
No matter the kind of material, Beyond strives to give you only the best quality filling and packaging systems.
· Glass
· PET
· Cans
· Pouches
Our motto “Beyond Quality, Beyond Expectation” is a true reflection of the kind of service you would expect from any of our products. At Beyond Machine we have really high standards when it comes to quality. We make absolutely no compromises when it comes to expedient provision of superior functional bottles customized to your requirements at an extremely affordable price range.
In addition to our superior quality filling and packing machines, BEYOND is known worldwide for its industry-leading customer support, which includes but is not limited to pre-sale consultation and plant design. We take exclusive care of our customers and render after-sale services such as installation and maintenance besides proffering the complete engineering services in the field of bottling industry.
At Beyond Machinery we have an in-house facility equipped with the latest machines and a great work team of engineers and managers who visualize and execute every production assignment from the project planning stage to the actual manufacture of the products as per the requisites and specifications of our valued clients. We are indeed privileged to have expert guidance and labor at our disposal to effectively create and deliver the goods consignment.
You can count on our reliability. You can be rest assured that our products are designed and fabricated under the strict vigilance of expert professionals using only the best quality materials. In this highly competitive market Beyond Machinery’s vast range of bottles are renowned for attributes like robust construction and low maintenance.
|
|
|
|
|
|
|
|
|
|
|
|
About Us | Gold Supplier | Payment | Contact 21food | New Product | Feedback | Hot Products | SiteMap | Mobile Site
Service Tel: +86-571-85120489
Whatsapp
Copyright 2002- Food & Beverage Online. All rights reserved. ICP NO.:Zhe B2-20090288

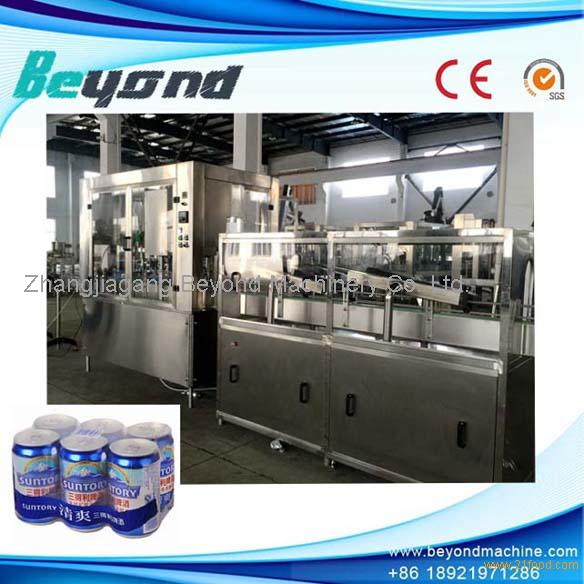

![Beyond advanced technology beer canning equipment[YDGF12-1]](https://img2.21food.com/img/product/2016/6/1/joanna-beyond-18080180.jpg)
