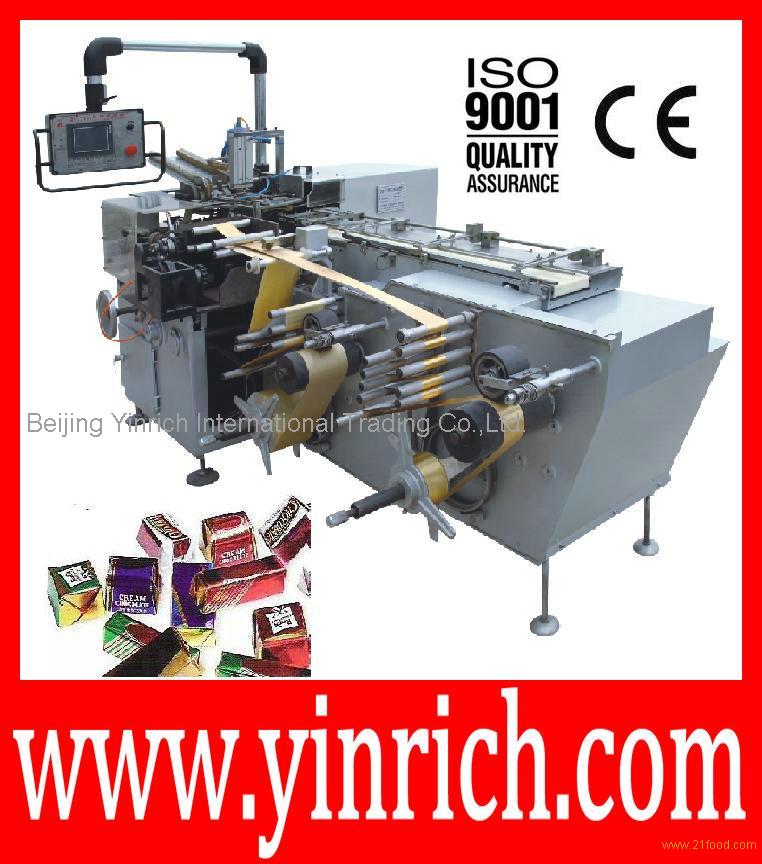

Chocolate Fold Wrapping Machine (DZB300),China YINRICH price supplier

This machine can wrap with single or backed aluminum. The special outlet group guarantees the perfect seal of the aluminum, even when using the not particularly plastic type. It can be set up for both random and horizontal outlets and can reach 360 actual wraps per minute depending on the shape of the chocolate and the wrapping material used. Has a color mark tracing system, so the wrapping is more perfect.

BM-Z300 is composed of a stiff structure that can be separated into blocks, by a product feeding belt and by a disc positioning the products in front of the arrival of the packaging paper. The packaging paper comes from two coils, where paper is developed thuds to a particular roller system, and is fed to the meeting point with the product, where other group's package is, an outlet belt provides for the removal of the finished product. All operating elements are connected to the actuating mechanisms located inside the structure, that are adequately purified and connected each other by means of belts and gears, then connected to the main motor...

Technical specification
On this particular wrapping machine a series of holders has been mounted controlled by gears to transfer motion and cams for the movement of the folders. The latter mainly act on the bottom of the product and guarantee a perfect lasting seal to the wrap. The scale can also be reinforced by using a special adhesive-group to be applies on horizontal outlet.
The DZB300 is also provided with a wrapping size, feed belt with electronic product presence control, 4foldcr wrapping equipment, roll-holder, machine stopping device.

Aligner for chocolates:
Designed to position and align in one row chocolates of various shapes, receiving them deposited at random on a Conveyor belt and conveying them to be wrapping machine(speed: 600 pieces/min)
The aligner is composed of various conveyors, belts and shaped guides. The first belt on which the articles are deposited operates with alternating movement (inching movement) and it transfers, with each pitch, a certain quality of articles onto the subsequent belt the pitch length and frequency may be adjusted to suit the product. A second motor-powered belt on the last accelerating belt directs the positioned and aligned products toward the connection belt to the wrapping machine.
