cocoa powder packing machine,China KUNCHENGXIANG price supplier

cocoa powder packing machine

FOB Price:Price can be negotiated

Production Capacity:20 Set/Sets per Month

Payment Terms: US $4,000 - 10,680 / Set

Update Time:2014-09-20

Contact Supplier

Product Description

COCOA POWDER packing machine
1,25-60bags/min
2,High speed
3,PLC+Touch Screen
4,Different bag types

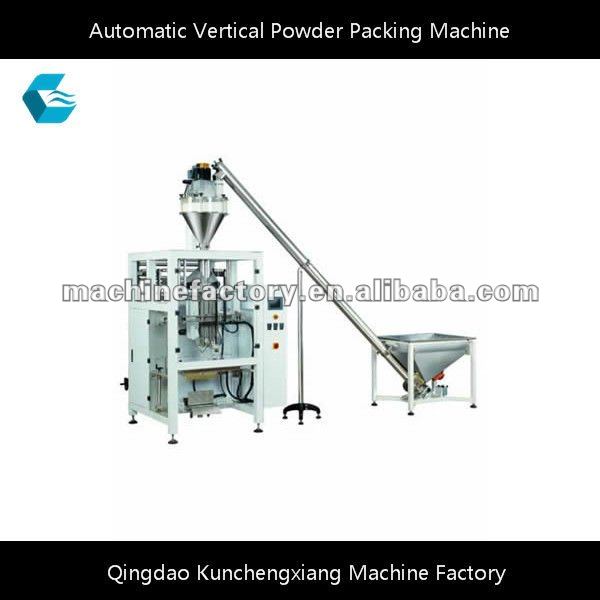

Automatic cocoa powder wrapping machine

turmeric powder, chilli powder, coriander powder, cumin powder, cocoa powder, etc.

1.Automatic Packaging Machine

Technical information

Model	KCX-5240
Bag length	150-4000mm
Bag width	100-250mm
Speed	25-60bags/min
Weighting range	50g-2000g
Accuracy	1%
Sealing form	pillow bag
Air consumption	0.4cbm/min, 0.6Mpa
Body Material	Stainless Steel
Voltage	220V/50HZ/3Kw
Hopper capacity	60L
Film	PP/PE/POF
Parts
PLC _________OMROM, Touch Screen______TAIWAN Servo motor_______PANASONIC, Photo Sensor_____ Japan Air valve _________Korean

Technical Features:

1, Automatic photoelectric control, encoder control system

2, Gusset device and printing device

3, Automatic tracking code, bag-making, filling measuring, sealing, printing, product delivery in one operation.

2. Auger Filler

This machine equips Sanyo Servo Motor, level switch and mixture motor automatic filling,

Controlled by packaging machine, Made by Stainless Steel .

3. SCREW ELEVATOR

1, Material: Stainless Steel

2, Automatic feeding.

3, Equips level switch and control box.

4.Production take-off conveyor

1, Material: Stainless Steel

2, Length: 1.95m

5.Air Compressor /one set.

Compressed air output: 0.6MPa, 0.4m ³ /min.

SAMPLE BAG:

Type:	Wrapping Machine	Condition:	New	Application:	Food,Commodity,Medical,Chemical,Machinery & Hardware
Packaging Type:	Stand-up Pouch,Bags,Pouch	Packaging Material:	Plastic	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	220V/50Hz~60Hz	Power:	3KW
Place of Origin:	Shandong China (Mainland)	Brand Name:	KUNCHENGXIANG	Model Number:	KCX-5240
Dimension(LWH):	1150 X 1795 X 1650mm	Weight:	600KG	Certification:	CE certificaion
After-sales Service Provided:	Overseas service center available	Film:	heating seal composite film	Certificate:	CE
Packing Speed:	25-60bags/min	Feature:	LCD display	Material:	stainless steel
Bag length:	150-400mm	Bag width:	100-250mm	Weighting range:	50g-2000g
