Continuous (24h) turn-key basis animal oil refinery plant,China SENSTN price supplier

Continuous (24h) turn-key basis animal oil refinery plant

Refining Process Characteristics :

Apply current advanced technology combining with traditional chemical and international-popular physical refining technology.

Mixer is centrifugal type. With this machine, material liquid can be mixed with acuity in a short time to meet the requirement of process. Combining with short mix and long mix process makes the process more reasonable, and ensures refining effect ;

Both short mixed and long mixed process are adapted in washing sector, which ensures washing effectiveness ;

Continuous vacuum drier with stainless padding has high drying efficiency ;

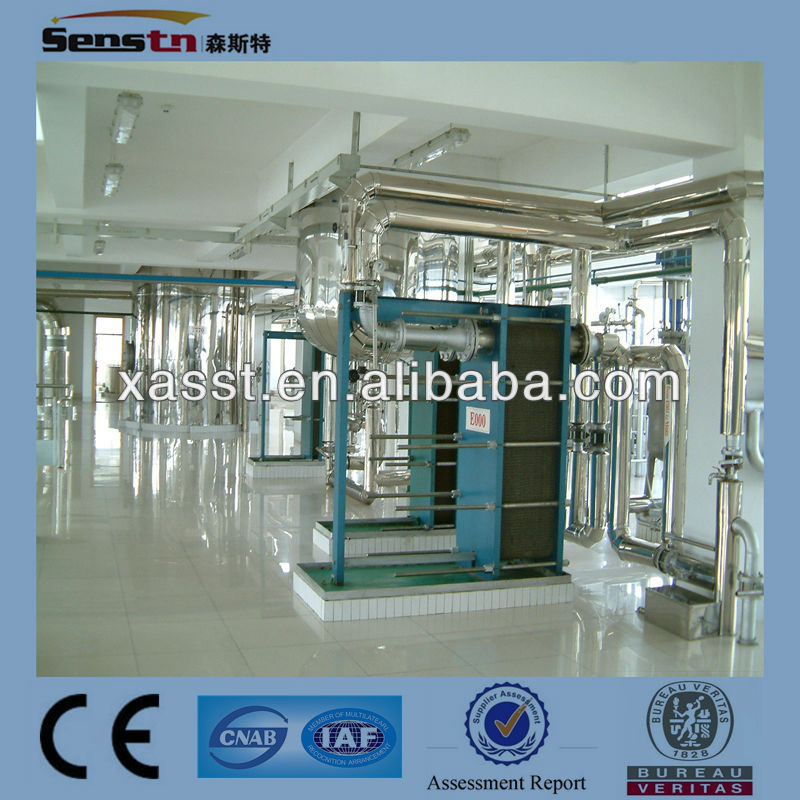

Heat exchangers is made of stainless thin plate,it has high heat transferring efficiency ;

“Cycling evaporation stirred decolorizing tower” is used in bleaching section , which can save energy and reduce the leakage of vacuum due to machinery stirring;

Equipped with vertical leaf Filter to remove used bentonite from the oil, operating conveniently and continuously, low laboring tense, keeps environment well, keeps oil residence in deposable bleaching earth in low level.

Winterization de-waxing system is capable of winterize various kinds of oil with the same set of equipment. For instance: SUNFLOWER oil, cotton seed oil.

Due to accurate stirring method, decreased the maximum distance between the oil of cooling facet so as to ensure the same temperature of crystal with same quality. Better guaranteed that in the process of crystallization, crystal will not cluster in a intense area.

Flexible system, cooling curve can be easily altered by changing water temperature, thus the kinds of products can be changed easily.

The heat exchange between oil in the process emphases the maximum use of energy.

Using filter aid to faster the filter process ensures the separation of wax and oil, and saves energy.

Stabilization of product quality

De-odorization is the key process to make high quality oil, the construction of deodorizer tower plays an important role. Our De-odorization tower has flash sector, holding sector, and high effective gentleness main de-odorization sector which ensure high quality of oil. It combines with the function of FFA and odor compounds rapidly, makes good FLAVOR for oil. Meanwhile, this tower has the advantage of lowering steam consuming of 30-50% than traditional tower and avoids of the hydrolyzation of oil.
