David flexibag for packing vegetable oil - 23000L,China price supplier

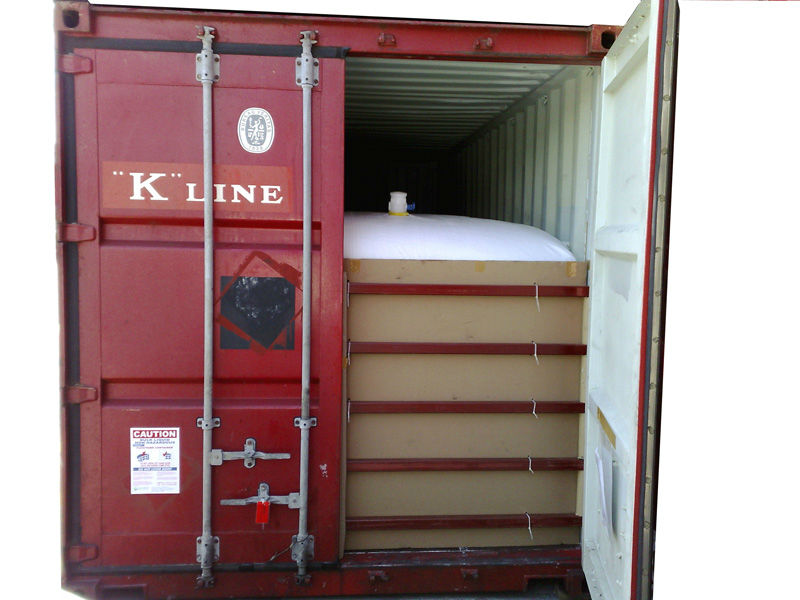

The Flexitank is a package that is used for the storage and transportation of non-hazardous liquid products and is intended for installation in 20ft ISO shipping containers.

It is composed of 4 inner layers of  PE(Polyethylene)film and 1 outer layer of Woven PP fabric.

The flexitanks are in sizes from 20cbm up to 24 cbm in order to maximize the capacity of a heavyweight 20’container depending on the product density.

It can replace expensive cans box, drum packaging, can substantially reduce the cost of loading and unloading, packaging, material management, and logistics.

Specifications

1. 5 layers: 4 layers PE+1layerPP         2. Capability: 20-24CBM S

3. FDA, ISO Approved, Food grade.        4. Suitable for 20' container

5. 3 Inches Butterfly Valve

Flexitank Safety Design

1. 3 Butterfly Valves firmly fixed in the Flange Avoids leakage.

2. PE Sock: Avoids contamination from any spill out of the flexitank while loading or unloading the liquids and protects the Valve

  Flexitank Types

1. Top Loading & Discharging

2. Bottom Loading & Discharging

3. Top loading & Bottom Discharging

Flexitank Accessories

1. Steel Bar 5pcs/set.  2. Corrugated Paper 1 roll/set  3. Cardboard 1 pc/set

Advantages

1. High capacity: The maximum capacity can reach 24,000 litres , about 35%higher than using drum

2. Cost-effective: Just pay one-way freight,no need to pay for return-transport Steel Tanks

3. Low cost: reduce packaging, storage and transportation costs. This is due to its relative low unit cost and the convenience of positioning, speed of loading and efficient exploitation of loading weights.

4. No cleaning required: Single-use, avoid high cleaning cost
