EPE Foam Sheet Extrudsion Line(FCFPM-90)

FOB Price:Price can be negotiated

Production Capacity:100 set per year

Payment Terms: FOB

Update Time:2022-09-20

Contact Supplier

Product Description

EPE Foam Sheet Extruder line Introduction:

Polyethylene foam Sheet, also named as pearl cotton. It’s a kind of new –type packing material with the features of damp proof, shock proof, sound insulation, heat preservation and good plasticity. It is an ideal substitute of traditional packing materials, and widely used in the packing of fruit, instruments, bags & luggage, shoemaking, household appliances, electronic product, hardware, furniture, fragile goods, etc. Features of this extrusion line: reliable quality, high output, low maintenance, high automation, easy handling with reasonable price

Features EPE Foam Sheet Extruder Line:

1 .Automatic feeding material, equipped with automatic alarm system when lack of raw material

2. The cool method adopt air cooling & water cooling. The control of the temperature is steady and exact. The temperature is dropped quickly.

3. The filter changer system has two holes no stop, no cut off material. Automatic hydraulic screen changer, save time, can increase production to 10%.

4. Machine head control adopt diaphragm-type pressure gauge, guarantee the quality of sheet is steady.

5. The winding automatic change over, the length fix long .automatic counting, the longest width of rewinding can be 2.8m

6. There is an explosion-proof electric machine beside the butane gas pump to ensure the safety.

Principle of EPE Foam Sheet Extruder Line:

EPE Foam Sheet Extruder Line introduction : The L/D of screw is 55 : 1.The raw material is high pressure and low density polyethylene . Through extruding system basis on formulation the raw material and the auxiliary material are transported into hopper by auto feeding system. The GMS will be injected into barrel by the pump as anti-contractor agent . Butane pump inject the liquid butane into the screw barrel and foam .The temperature is dropped by the barrel then the products will be extruded from the machine head . Fixed and cooled by fixing drum then after processed by expanding system ,haul-off system and winding system . According to the demand for length by customer, automatically warned by meter counter, and then change rolls automatic .After make record of the weight and packed can be delivery to the warehouse .

EPE Foam Sheet Extruder Line and products ：

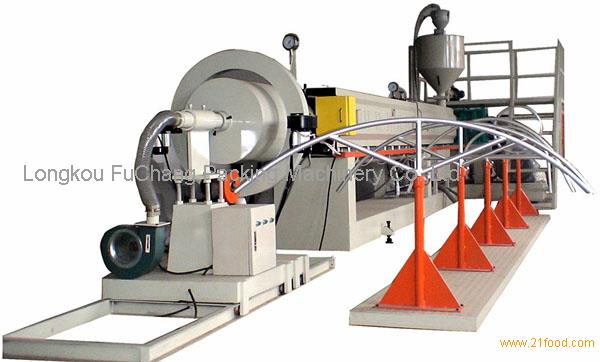

EPE Foam Sheet Extruder Line：

Spare parts of EPE Foam Sheet Extruder Line：

The main products of EPE Foam Sheet Extruder Line：

Other products of EPE Foam Sheet Extruder Line：

Please contact me:My name is Lewis and I work with Longkou FuChang Packing Machinery Co.,Ltd. .We are factory specializing in the manufacture and export of paper pulp moulding machine ,Egg tray machine, epe foam sheet extruder ,epe foam fruit net/pipe extruder etc since 1995.Our egg tray machine and epe extruder machine have acquired the CE Certification

Main Technical Parameters of EPE Foam Sheet Extruder Line:

Model		FCFPM-90	FCFPM-105		FCFPM- 120	FCFPM-150	FCFPM-170
Extruder		90/55	105/55		120/55	150/55	170/55
Screw speed	r/min	5-45
Foaming Ratio		1 0-40
Product width	mm	8 00-1 6 00	1000- 20 00		1000-2000	1000-2000	1000-2000
Product thickness	mm	0.5-3. 0	0.5-5.0		0.8-8.0	1.0-10.0	2.0-15.0
Cooling Method		Air-cooled, water-cooled
Installed P ower	kw	90	100	120		150	180
Dimension	m	20×2.3×2.2	23×2.3×2.2	25×2.3×2.2		30×2.3×2.2	32×2.3×2.2
Weight	T	6	8	12		15	17
