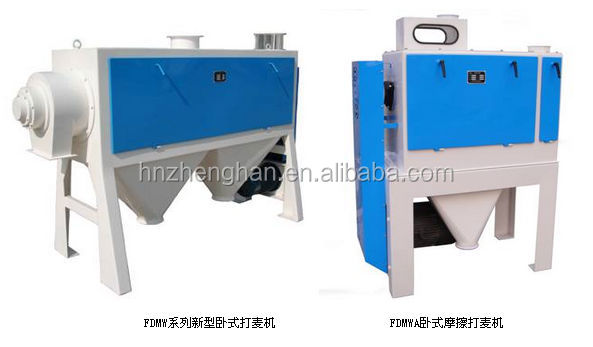

FDMW Horizontal Series Horizontal Wheat Scourer
1. Pre-Cleaning and Cleaning
2.Special plate structure, high porosity

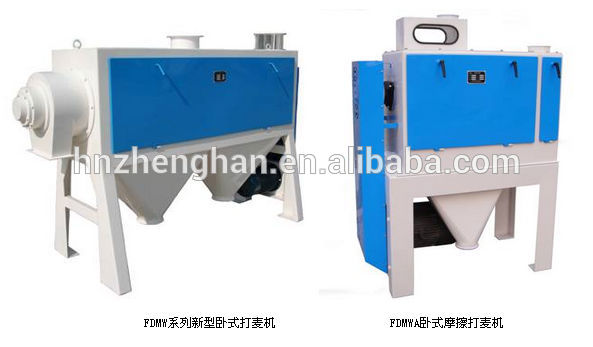

FDMW Horizontal Series Horizontal Wheat Scourer
1. Pre-Cleaning and Cleaning
2.Special plate structure, high porosity
FDMW series horizontal scourer for flour factory cleaning process, the surface of wheat furrow mud, and other impurities from wheat hair play, can also be mixed with wheat disease deterioration clods and strength is poor in wheat smash. Out, broken marl, fine separation sieve tube through the hole, the ash outlet.
Out good effect, low broken rate, low dynamic consumption, low noise, good sealing, appearance;
Rotor plate surface heat treatment, long service life; the rotor dynamic balance test, eliminate unbalance;
Special plate structure, high porosity and permeability resistance, the grading effect is good, easy to replace the sieve tube plate;
With self circulation air separator, ensure the light impurity separation effect.
Para
Model |
Screendrum Diameter mm |
Screendrum Length mm |
Spindle Speed r/min |
Capacity t/h |
Power kw |
Weight kg |
Dimension L*W*H |
|
flick |
thump |
|||||||
FDMW 30*60 |
300 |
600 |
800-1200 |
2-4 |
4 |
5.5 |
460 |
1270*400*1210 |
FDMW 4*100 |
400 |
1000 |
800-1200 |
4-7 |
5.5 |
7.5 |
720 |
2130*920*1840 |
FDMW 4*15 |
400 |
1500 |
800-1200 |
7-10 |
7.5 |
11 |
760 |
2630*920*1840 |
Place of Origin: |
Henan China (Mainland)
|
Brand Name: |
Zhenghan
|
Model Number: |
FDMW
|
Type: |
Grain Processing Equipment
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
