Product Description

Introducton

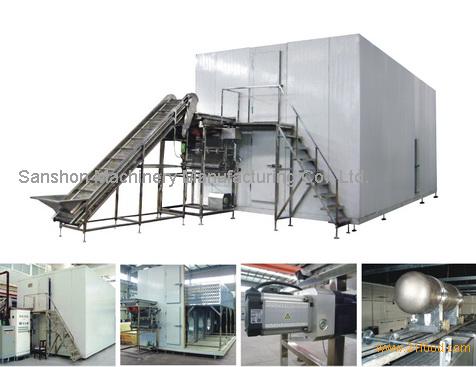

Fluidized quick- freezing machine of LSZ type is developed by our company on basis of our many years of experience in manufacture of quick-freezing equipment in combination of advantages of the similar products of Japan, Sweden and other countries. It is a novel quick-freezing machine with excellent performance. We will continue upgrading the product with new technology, new design concept and humanized characters.

Main technical parameters of the LSZ type fluidized quick- freezing machine

Parameters	Model	LSZ-500	LSZ-1000	LSZ-1500	LSZ-2000	LSZ-3000
Output (kg/h)		500	1000	1500	2000	3000
Overall dimensions (m)		7.1 ×3.9×3.7	9.1 ×4.1×3.7	11.6×4.1×3.7	13.6×4.1×3.7	15.6×4.2×3.7
Freezer length (m)		5.5	7.5	10	12	14
Width of screen belt (m)		1.0	1.2	1.2	1.2	1.3
Material feeding T ()		+15
Material discharging T ()		-18
Freezing T ()		-33±2
Freezing Time (min)		5 50Continually adjustable
Coolant		R717 / R22
Cold load (kw)		92	165	248	300	450
Installed power (kw)		24.6	33.7	39.2	44.7	57.4

Note: 1) Production capacity based on green sword bean 2) Operation state of cold load: TK=+35 TO=-40

Production capacity for common foods (taking green bean with 74% of water content as standard)

Description of food	Moisture content%	Relative production capacity%
String bean	74	100
Green sword bean	89	85
Western Cauliflower	92	60
Asparagus	93	60
Mushroom slices	92	50
Diced carrot	88	80
Maize	74	90
Shelled fresh shrimps	71	50

Description of food	Moisture content%	Relative production capacity%
Chestnut	88	75
Grapes	82	70
Cherry	83	70
Strawberry	90	70
hot pepper cubes	92	60
Apricot	89	45
Diced meat	65	70
Garlic bolt	88	60

Note: Above data for reference only

Main features:

Two-section screen conveying belt is adopted. The 1st section uses mechanical vibrating device for further increasing fluidization ability, so that the IQF product scope can be expanded to heavy product such as maize.
Screen belt drive and fan can adopt frequency speed governing to adapt to processing of many kinds of quick- frozen foods.
The coil and fins of the evaporator are of full aluminum structure. All other components and parts are made of stainless steel and food-grade plastics conforming to hygienic standard for foods.
It is equipped with high-efficient cleaning device for cleaning the residue on the screen belt. All is design for simple hygienic cleaning and easy operation so as to ensure hygiene and safety of foods.
