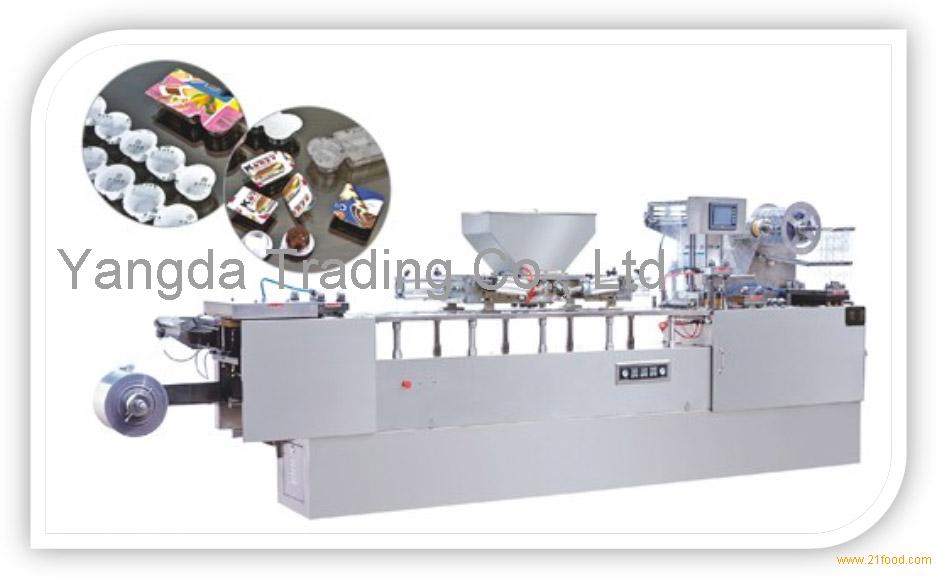

Structure Features:
This machine in innovated by our technician for filling all kings of free flowing liquid such as fruit jam, chocolate jam, Butter ketchup, etc. As well as biscuitcandy troche capsuleand so on.
It adopt with the PLC controlling system, Frequency converter for speed adjusting fully automatic working processes from vacuum Forming filling sealing Date printing cutting end-products coming out.The machine is with the photoelectric eye device to ensure neat sealing and cutting.
Sheet material: PVC, PS, PET.
Technical data:
Punch frequency: 10-50times/min 1-6blister strips/time
(If stroke>80,Blister depth>10,not ensure 50times/min)
Motor power: 1.5kw
Power supply: 3N-50HZ 380V/220V
TotalPower: 380v/220v 50HZ 6kw
Heating power: Up and lower forming:2kw
Heat seal: 2kw
Air pressure: >0.2 M3, 0.4-0.6Mpa (Equipped by buyer's site)
Air consumption: >=0.3m3/min
Mould cooling: Tap water or recycle water 60L/h
Max shaping area and depth: 160*250*24mm
stroke: Standard 20-125,Max160mm
Standard plate: 80*57m (customize by order)
sheet: 0.15-0.5*250mm
Overall size: 3010*720*1600(mm)
Weight of machine: 1700kg
Capacity(blister/h): 15000(standard 80*57mm,count on 5 blister strips/time,50times/min)
Max forming area and depth: 310*160*26mm
Blister spec.:
Standard:80*57mm
Ref spec:80*57 95*65 103*43 120*43
(or customize by order)
Packing material:
PVC:0.15-0.5*320mm
PTP ALU foil:0.02-0.35*320mm
Dialysis paper:50-100g*320mm
Reel diameter:70-76mm
Shantou Yangda Trading Co., Ltd is located inShanou city of China,who has been exporting food and plastic packaging and processing machine for many years.
We are focus in:
- Food packaging machine
- Food processing machine
- Plastic processing machine
- Food packaging product
With our experience in the field of food processing and packaging machine for more than 20 years, we believe that we can bring you a high quality,efficient and competitive machine as well as the related products. We have very good relationship with more than 50 famous factories in China. Many options in one source.
The excellent management team and supplying chain which allow us to make quick response toward customer's request and smell the trend of products. Our products are always enjoy a good reputation for good quality and honest service.
To establish a win-win cooperative relationship with customers is always our faith,to do our best to meet the customers' need is always our aim.
