full automatic 3-in-1 carbonated beverage washing filling and capping machine,China KONO price supplier

full automatic 3-in-1 carbonated beverage washing filling and capping machine

FOB Price:Price can be negotiated

Production Capacity:15 Set/Sets per Month

Update Time:2011-06-09

Product Description

carbonated beverage washing filling capping machine
1)ISO9001&CE certifcation
2)8000-10000BPH capacity
3)ss304 material

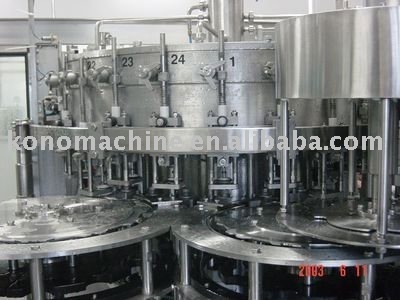

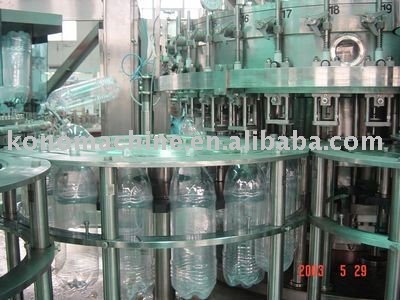

full automatic 3-in-1 carbonated beverage washing filling and capping machine

1)washing filling capping machine

2)carbon dioxide Filling Machine

3)carbonated beverage bottling machine

automatic 3-in-1 carbonated beverage washing filling cappign machine technical parameter:

Model	DCGF16126	DCGF18186	DCGF24248	DCGF32328	DCGF404012
Heads of washing, filling, sealing	16-12-6	18-18-6	24-24-8	32-32-8	40-40-12
Production capacity	2000-4000BPH	4000-6000	8000-10000	10000-12500	12500-15000
Suitable bottle diameter	φ=50-100mm, H=170mm, 330-2500ml	φ=50-100mm, H=170mm, 330-2500ml	φ=50-100mm, H=170mm, 330-2500ml	φ=50-100mm, H=170mm, 330-2500ml	φ=50-100mm, H=170mm, 330-2500ml
Spraying pressure	0.2-0.25Mpa	0.2-0.25Mpa	0.2-0.25Mpa	0.2-0.25Mpa	0.2-0.25Mpa
Filling temperature	0-5°C	0-5°C	0-5°C	0-5°C	0-5°C
Filling type	Balance pressure filler	Balance pressure filler	Balance pressure filler	Balance pressure filler	Balance pressure filler
Motor power	2.8kw	2.8kw	3.8kw	6.2kw	7.5kw
Stainless steel	SS304	SS304	SS304	SS304	SS304
Electric voltage	380V50Hz	380V50Hz	380V50Hz	380V50Hz	380V50Hz
PLC	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi
Frequency converters	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi
Touch screen	Mitsubishi	Mitsubishi	Mitsubishi3.8kw	Mitsubishi	Mitsubishi
Circuit contactor	Siemens	Siemens	Siemens	Siemens	Siemens
overall dimension	*240016002500*	*250018002500*	*310023002800*	*380028002900*	*460028002900*

full automatic 3-in-1 carbonated beverage washing filling and capping machine

If you need visual video of these carbonated beverage washing filling capping machine equipment, please feel free to contact me by email

Product Type: Carbonated drinks	Primary Ingredient: Carbonate	Flavor: Caramel, Chocolate, Cream, Coffee, Milk...
Feature: Normal	Certification: ISO, QS	Packaging: Barrel, Bottle, Can (Tinned), Cup
Place of Origin: Jiangsu China (Mainland)	Brand Name: KONO	Model Number: DCGF24248 carbonated beverage was...
type: carbonated beverage washing filling and c...	Filling type: Balance pressure filler	Filling temperature: 0-5℃
Spraying pressure: 0.2-0.25Mpa	Motor power: 3.8kw
