Full automatic auger filler cocoa powder filling machine,China EV price supplier

Full automatic auger filler cocoa powder filling machine

FOB Price:Price can be negotiated

Production Capacity:10 Set/Sets per Month

Payment Terms: US $20,000 - 50,000 / Set

Update Time:2014-09-20

Contact Supplier

Product Description

A-Full automatic auger filler COCOA POWDER filling machine
B-Form fill seal
C-Four-square pouch
D-20-50 pcs
D-PLC

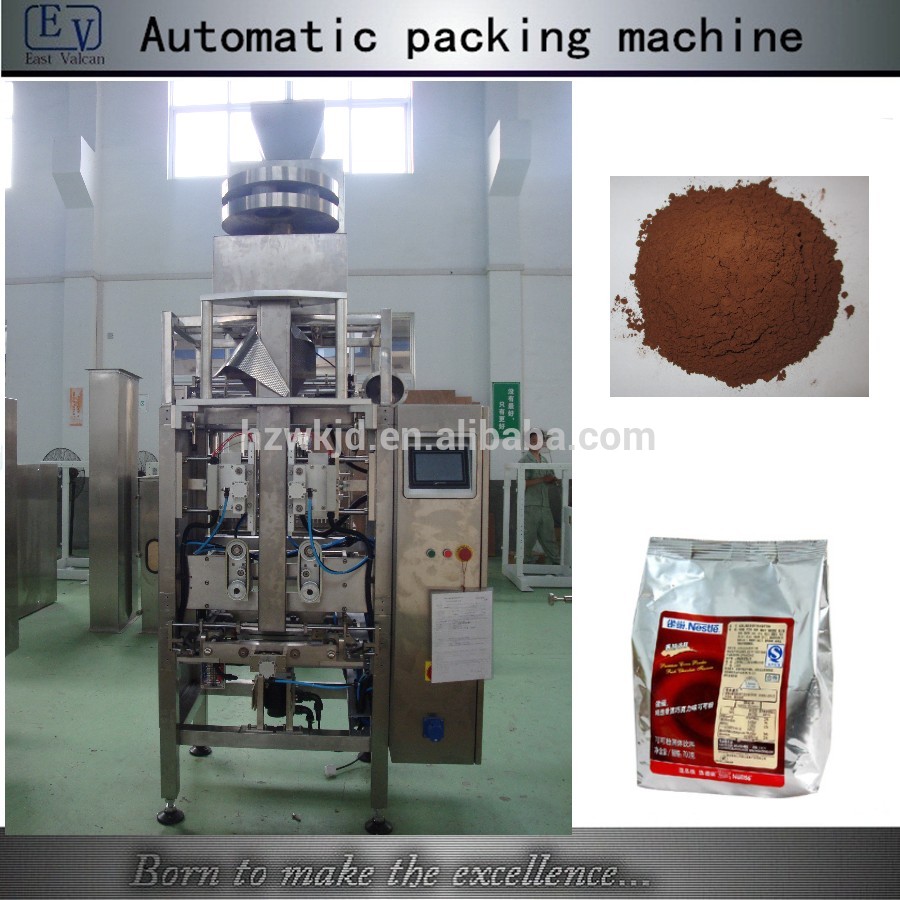

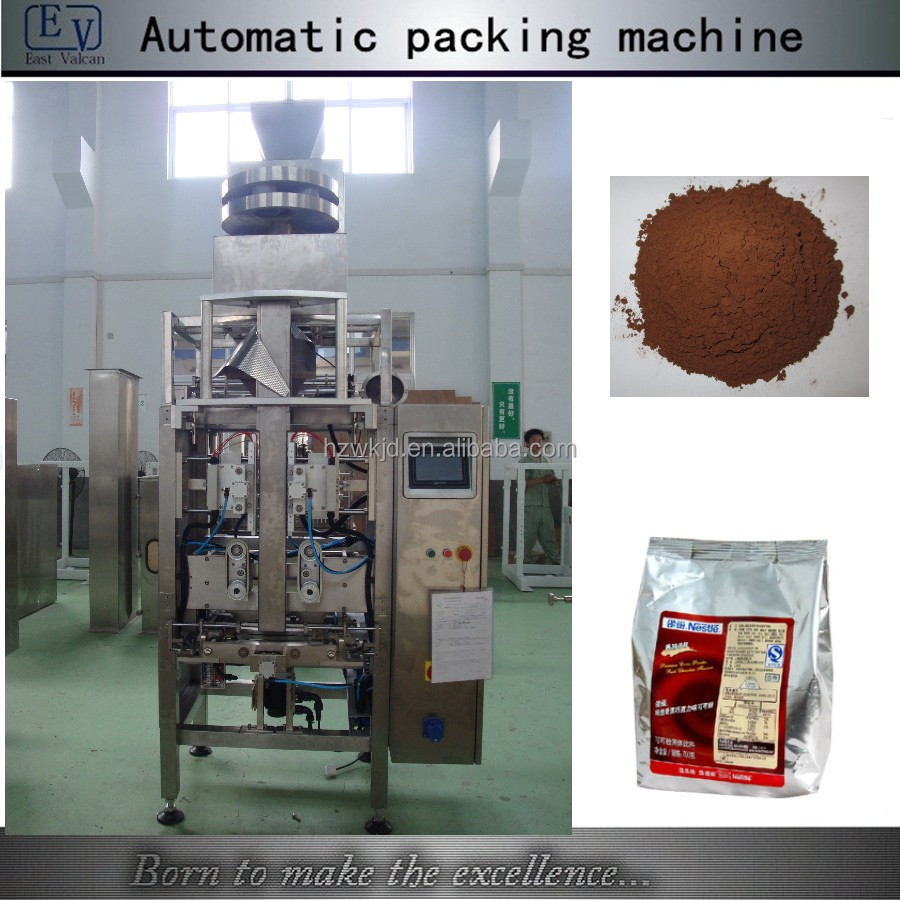

Full automatic auger filler cocoa powder filling machine

Application

The packing machine is form fill seal machine suitable for measuring and packing anomalous lumpish and granule material, such as candy, cotton candy, popped food, biscuit, roasted seeds and nuts, granulated sugar, deep-frozen food, milk powder, milk tea, amylum, sauce, etc.

Function and characteristics

1. Equipped with safety protection, comform to company safety management standard.

2. Use intelligent temperature control device to ensure accurate temperature control and artistic and neat seal.

3. Use PLC Servo System and pneumatic control system and super touch screen to form

the drive control center; maximize the whole machine ’ s control precision, reliability and

intelligent level.

4. This machine completes the whole packing procedure of measuring, loading materials, bagging, date printing, charging(exhausing)and products transporting automatically as well as counting.

5. Touch screen can store the technical parameters of each product in the system, so no reset-needed when changing product.

6. Have error indicating system, helping to handle the breakdown immediately.

7. Make block bags and hanging bags according to customers ’ different requires.

8.Single-belt transportation, smoothly and quickly; small friction and little waste .

9. Stainless steel model and carbon steel model for choose.

10. Adopt multi-lines vertical automatic packing material, eg. twin tube packing machine, double-line automatic packing machine if higher packing speed needed

11. Use special bag former with very vertical sealing, which can make out 4-sides sqauqre with smooth iron. After equipping with the gusseting device, it can stand up with soild angel bag profile.

Selected installation:

1. Linked bags or multi-bags cutting function

2. Hanging hole punching function(hole in circle and other abnormal shape)

3. Outlet conveyor

4. All kinds of automatic or semi-automatic measuring conveying structure

5. Inflation and exhausting function

6. Compressed air system and nitrogen adding device.

Main Technical parameters:

Model	EV-460S4	EV-530S5
Pouch shape	Four-square side pressing without back sealing pouch	Four square side pressing with back sealing pouch
Pouch size	Front bag width: W80-170mm Side bag width: W40-100mm Bag length: L100-280mm	Front bag width: W80-170mm Side bag width: W40-100mm Bag length: L100-280mm
Speed	20-50 pcs/min	20-50 pcs/min
Voltage	AC220V, 50-60Hz, 5.0kw	AC220V, 50-60Hz, 5.3kw
Compressed air cost	6-8kg/m ² , 0.15m ³ /min	6-8kg/m ² , 0.15m ³ /min
Weight	650kg	650kg
Dimension	L1750W1150H1950	L1750W1150H1950

Pictures

Type:	Packaging Machine"> Multi-Function Packaging Machine	Condition:	New	Function:	Filling,Labeling,Sealing,Forming
Application:	Food,Beverage,Commodity,Medical,Chemical,Machinery & Hardware,Pharma,Suitable for powder, liquid and granule	Packaging Type:	Stand-up Pouch,Bags,Pouch	Packaging Material:	Plastic,Paper
Automatic Grade:	Automatic	Driven Type:	Electric	Voltage:	customized
Power:	5kw	Place of Origin:	Zhejiang China (Mainland)	Brand Name:	EV
Model Number:	EV-460S4	Dimension(LWH):	175011501950	After-sales Service Provided:	Engineers available to service machinery overseas
Product:	Full automatic auger filler cocoa powder filling machine	Packing type:	Four-square pouch	Filling capacity:	0-3000g
Packing speed:	20-50 pcs/min	Powder:	AV220V, 56-60Hz, 5.0KW	Weight:	650kg
Material:	Stainless steel, carbon steel	Digital temperature controller:	Yamatake Japan	Warranty period:	12 months
