full automatic machine egg roll,China SkywinBAKE price supplier

Hollow wafer stick machine

to make two colors wafer stick (inside filled with cream/ chocolate, etc).

Capacity: normal shape 50kg/h(about 100 pieces/min), count on the basis of φ10.5 inject pipe, 25% cream inside, roll’ length is 100mm

Gas consumption: LPG<=4.5kg/hr, Natural Gas <= 10CBM/hr

Gas supply pressure: 4kpa

Power: 7.5Kw

Exterior Size: L 3.2m/W 1.8m/ H 2.3m

Weight: 5200kg

Complete wafer stick machine included:

wafer stick main machine

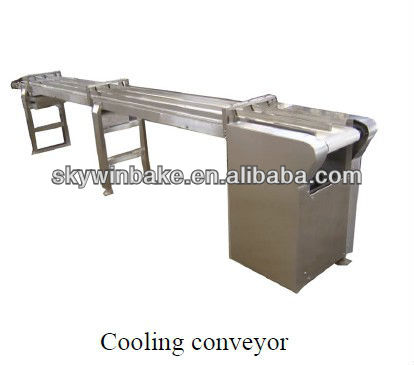

Cooling Conveyor 4m

15kgs batter mixer

Cream mixer

Possible Products:
1, Hollow wafer stick (one / two colors)
2, Wafer stick with cream filling
3, Pillow shape wafer stick
4, Pressed wafer stick
5, Chocolate enrobing wafer stick

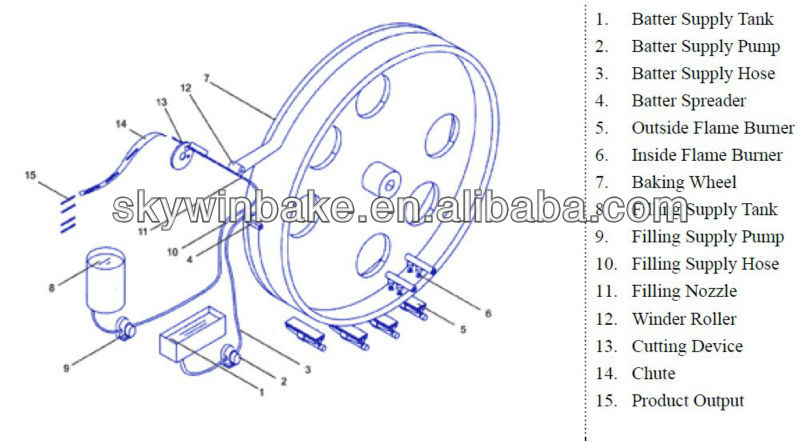

Some pictures of wafer stick machine as follows:

Cutting Machine for pillow shape wafer stick

Product: two colors pillow shape wafer stick

Capacity:
50kg/h (about 300 pieces/min), count on the basis of φ10.5 inject pipe, 25% cream inside, roll’s length: 33mm

Press belt system specification
Press drive for pressed wafer stick.
Added a press belt to the end of the cooling conveyor used to press the hollow wafer stick (without cream filling) to pressed wafer stick.

Pressed wafer stick

Capacity: normal shape (about 160 pieces/min), count on the basis on lengh:60mm, width:18mm, thick:5-6mm.
