Full automatic steem sterilizer water plate Liquid Sterilizer,China Huihe price supplier

    It is widely used in milk, juice, tea drinks, milk drinks, ketchup, condiments, beer, Butter, ice cream, egg products, powder and other products.

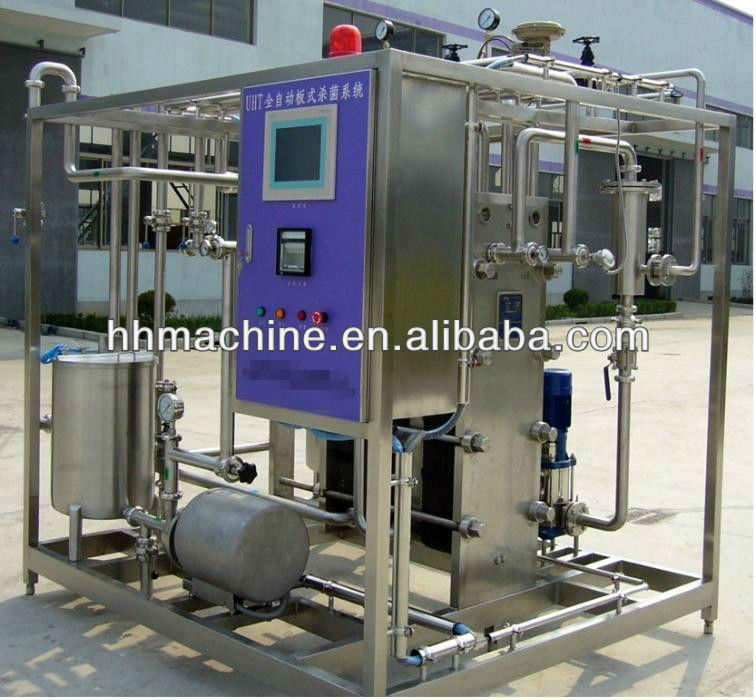

      Automatic plate high(super)temperature sterilizer equipment   is Sterilization equipment specially designed for dairy drinks or similar liquid materials. It is the ideal equipment that material can extend the shelf life purpose through sterilizing and cooling. According to users’ different requirements to material heating, sterilization, heat preservation and cooling, to design various technical requirements for different flow assembly, meet the technological requirements and have all kinds of security protection measures and high temperature alarm, low temperature function of the backflow. At the same time, according to users’ requirements, corresponding configuration of high accuracy of the automatic control system.

Characteristics of Tube Sterilizer

1. The huge viscosity range. The use environment PH value is 1-14. It is suitable for sterile production of fresh milk, pasteurized milk, yogurt, colored milk, juice, tea

Drinks, wine, ice cream, soy milk, beverage, jam, butter and other products. The products produced by UHT sterilization system can maintain 3-6 months under normal temperature (do not add any preservatives), thus eliminating the cold chain.

2. The equipment is automatically or semi-automatically controlled by computer with LCD touch screen operation.

3. Instantaneous processing maintains the original flavor of the products.

4. PID temperature control system, sterilization temperature recorded continuously in real time.

5. the product has uniform heat treatment, heat recovery up to 90% .

6. The tube inside without any contact, no health dead corners, the product will not adhere to the tube, and the bellows can form high turbulence in sterilization

process, with a self-cleaning effect, so it is difficult to form tube fouling and pollution.

7. with a long continuous operating time and good CIP self-cleaning effect.

8.  Less spare parts, low operating costs.

9. Easy to install, inspect and remove, convenient to maintain pipeline.

10. Reliable material, affordable a higher product pressure.

Process parameters : 25 °C →105 °C ( 10S ) →90 °C →40 °C return

Cooling water : 1 : 2(≤30 °C )
