lab vibration testing equipment for cocoa powder,China HENGSHUN price supplier

lab vibration testing equipment for cocoa powder

FOB Price:Price can be negotiated

Production Capacity:200 Set/Sets per Month Remark: urgent

Payment Terms: US $100 - 500 / Set

Update Time:2022-08-17

Contact Supplier

Product Description

1.Sieve with SUS304 material
2.Particle distribution analysis
3.1-9 layers/decks
4.Vibrating motor
5.With time controller

Lab Vibration Testing Equipment for COCOA POWDER

HY-200 lab vibration testing equipment is incorporate the powder classification and liquid filtration.

It is suitable for particles distribution analysis of grains, powder or the solids content test of the liquid

in laboratory and Quality Control Department.

Product's information

1. Voltage and frequency: Single phase: 220V/110V, 50/60HZ

Three phase: 220V/380V/415V, 50/60HZ

2. Source: one set of vertical vibration motor

3. Diameter: 200mm

4. Includes: main unit, top cover (pan), catchers (collector) and sieves with different mesh.

5. Materials: machine is made of common steel

Top cover, catcher and sieve are SUS304

Function: determines the particle size distribution, whatever particle or powder.

Features

1. High efficiency, smart design.

2. It has a compact structure, and it is suitable for any kinds of powders and serenity.

3. Small volume, easy to be moved.

4. Low noise, high precision, accurate mesh.

5. The products can be automatic shut down according to the electric time controller.

Technical parameters

No.	Item		Unit	Data
1	Sieves		Layer	8
2	Diameter		mm	200
3	Material size		mm	0.038-3
4	Noise		db	< 50
5	Inventory rating		G	< 200
6	Vibration amplitude		mm	< 5
7	Vibration motor	Voltage	V	220-240
		Rotate speed	Rpm	1400
		Power	KW	0.12
8	Overall dimension (lengthwidthheight)		mm	300× 360 × 736
9	Net weight		kg	39

Show some pictures to understand the model

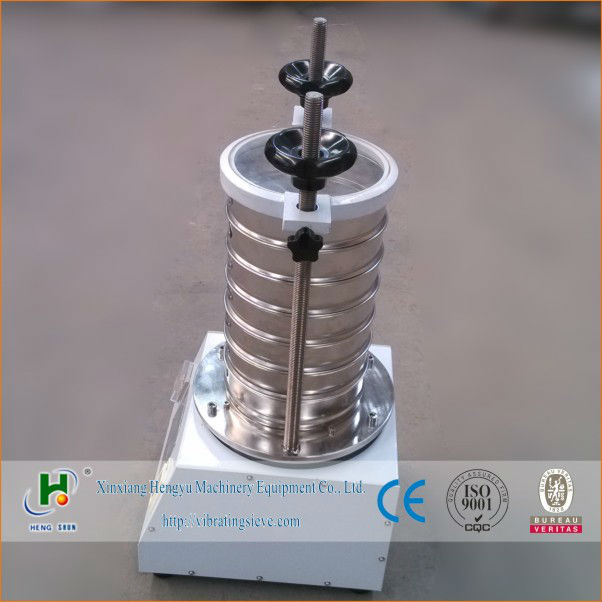

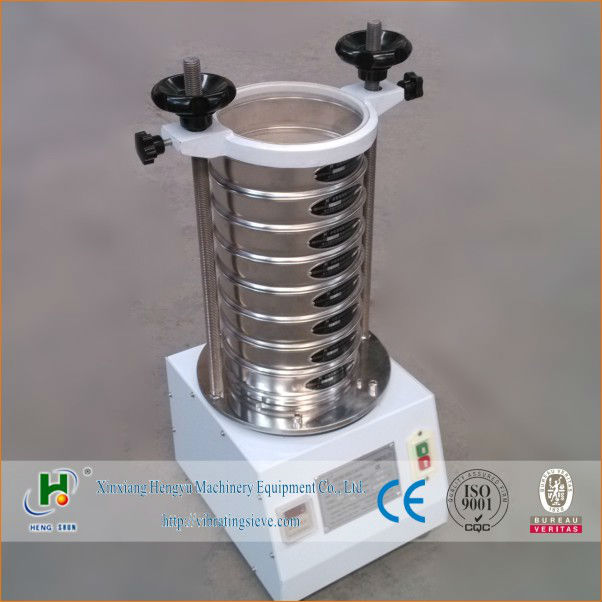

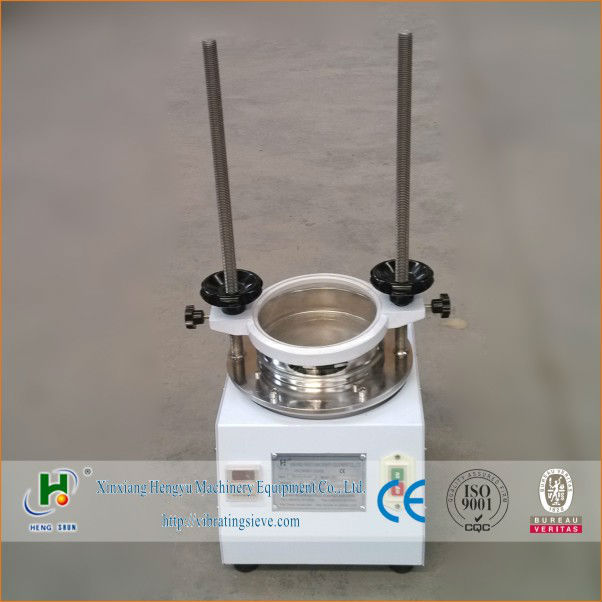

Model's pictures

Packing Picture

Why choose us?

1.With 8 years production of screening
2.More than 20 countries clients loves our products.
3.All of our products have passed the evaluation of ISO9001 and CE certification.
4.The Chinese leading screening products provider and the technology design center.

Contact information of sales

If you need more information, contact me now!

We accept your special customization.

Place of Origin:	Henan China (Mainland)	Brand Name:	HENGSHUN	Model Number:	HY-200
Power:	mechanical,0.12 kw	Usage:	Vibration Testing Machine	Product's name:	lab vibration testing equipment for cocoa powder
certification:	CE, BV & ISO9001:2008	Type:	Circular	material:	stainless steel 304
diameter:	200mm	layer/deck:	up to 9 layers/decks	Noise:	less than 60 db
transportation:	air/express/sea	ASTM standard:	accepted
