Ladder Conveyor Belt

FOB Price:Price can be negotiated

Update Time:2023-11-18

Contact Supplier

Product Description

Conveyorbelt.com/images/pattern-stripes.png) rgb(255,255,255) 0px 0px; white-space: normal; word-spacing: 0px; border-bottom: 0px; text-transform: none; color: rgb(51,51,51); padding-bottom: 0px; padding-top: 0px; font: 19px/22px Verdana, Geneva, sans-serif; padding-left: 0px; margin: 0px 0px 25px; border-left: 0px; letter-spacing: normal; padding-right: 0px; text-indent: 0px; -webkit-text-stroke-width: 0px; font-stretch: inherit"> Ladder Conveyor Belt for Common Process & Loads

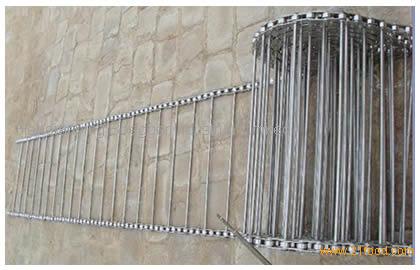

Ladder conveyor belt with S-shaped hooks

With the simplest structure, the ladder conveyor belts are composed of cross rods jointed by S-shaped hooks, chain links and U-shaped links. The belts with links are secured by welding a ring to the cross rod for containing the integrity of the ladder conveyor belts.

Applications:

Food processing: cooling, washing, drying, etc.
Waste treatment facilities.
Product sieving and sorting system.
Blanching and product handling system.

Ladder conveyor belts are available in straight types and curved types with a fixed inside radius as shown in the picture:

Straight ladder conveyor belt

Curved ladder conveyor belt

Details:

Material: steel, stainless steel 304, 316 or other materials as your request.
Speed: from less than 1 m/min to 20 m/min. (High speed quicker than 20 m/min may affect the longevity of the conveyor belt)
Temperature range: -100°C to +300°C.

Properties	Ladder belt with S-shaped hook	Ladder belt with chain links	Ladder belt with U-shaped links
Pitch	1/2" to 4"	1" to 3"	3/4", 1" and 1-1/13"
Width	20mm to 1500mm	25mm to 2000mm	80mm to 2000mm
Diameter of cross rod	2mm to 8mm	4mm to 20mm	5mm
Application	Running in straight & curved applications	Only running in straight application	Running in straight & curved applications

Ladder conveyor belt with U-shaped links

Ladder conveyor belt with chain links
