saffron seed sorter
1.kinds of Grains color sorter
2.High accuracy
3. Lowest consumption
4. High capacity
Melon seeds CCD Color Sorter and saffron seed sorter
Product Specification
| kind |
kidney bean |
broad bean |
sunflower seeds |
||||||
| Model |
6SXZ-192 |
6SXZ-256 |
6SXZ-320 |
6SXZ-192 |
6SXZ-256 |
6SXZ-320 |
6SXZ-192 |
6SXZ-256 |
6SXZ-320 |
| Channels |
192 |
256 |
320 |
192 |
256 |
320 |
192 |
256 |
320 |
| ( Kg/kw.h ) Throughput |
≥700 |
≥700 |
≥700 |
≥600 |
≥600 |
≥600 |
≥400 |
≥400 |
≥400 |
| Accuracy |
≥99 |
≥99 |
≥99 |
≥99 |
≥99 |
≥99 |
≥99 |
≥99 |
≥99 |
| F irst select |
≥1:5 |
≥1:5 |
≥1:5 |
≥1:5 |
≥1:5 |
≥1:5 |
≥1:5 |
≥1:5 |
≥1:5 |
| S econd select |
≥2:1 |
≥2:1 |
≥2:1 |
≥2:1 |
≥2:1 |
≥2:1 |
≥2:1 |
≥2:1 |
≥2:1 |
| Voltage (50HZ) |
220V50HZ |
220V 50HZ |
220V50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V50HZ |
220V50HZ |
| Power(kw) |
1.0~ 2.7 |
1.2~ 3 |
1.5~ 3.5 |
1.0~ 2.7 |
1.2~ 3 |
1.5~ 3.5 |
1.0~ 2.7 |
1.2~ 3 |
1.5~ 3.5 |
|
Air Pressure(Mpa) |
≥0.6 |
≥0.6 |
≥0.6 |
≥0.6 |
≥0.6 |
≥0.6 |
≥0.6 |
≥0.6 |
≥0.6 |
|
Consumption(L/min) |
1000- 1800 |
1200- 2500 |
1500-2500 |
1000- 1800 |
1200- 2500 |
1500-2500 |
1000- 1800 |
1200- 2500 |
1500-2500 |
| Weight(kg) |
635 |
750 |
950 |
635 |
750 |
950 |
635 |
750 |
950 |
| Dimension ( L*W*H/mm ) |
1496*1457*1789 |
1958*1586*1880 |
2306^1615*1880 |
1496*1457*1789 |
1958*1586*1880 |
2306^1615*1880 |
1496*1457*1789 |
1958*1586*1880 |
2306^1615*1880 |

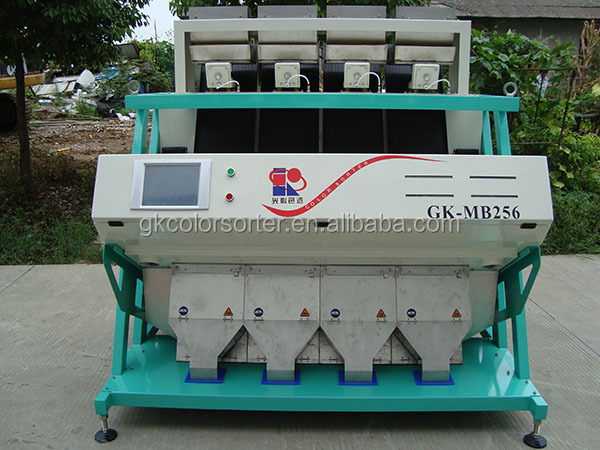

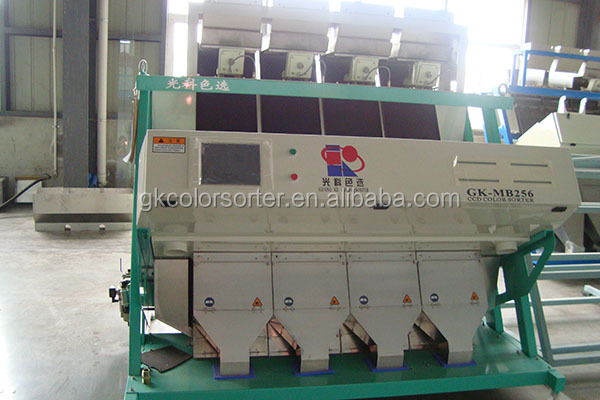

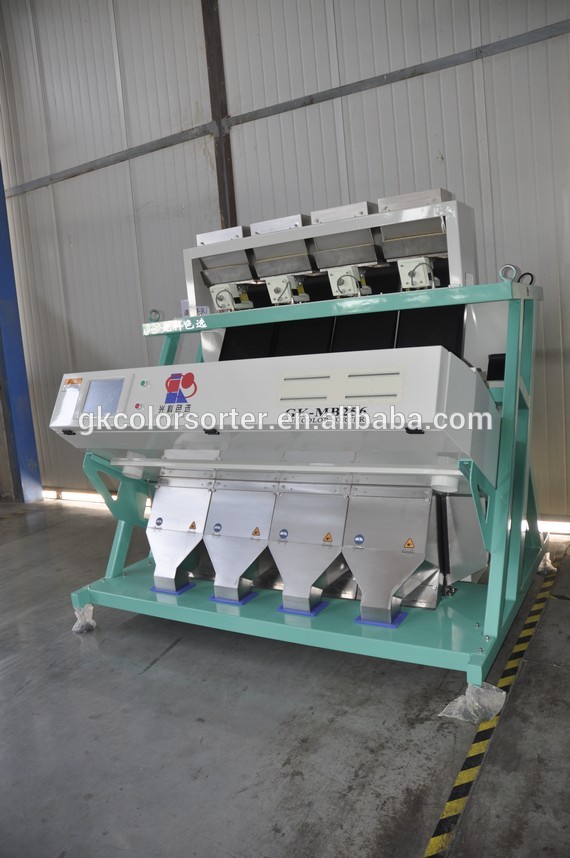

Product Show

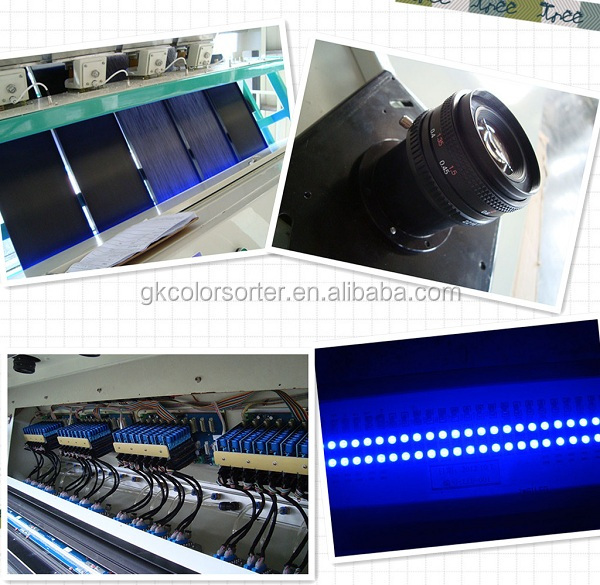

Product Feature
1 , High speed,reliable bus communication, high signal consistency, anti-disturbance ability, ensure system running stable and reliable.
2 , Based on ARM all in one 10.4" full color touch screen with embedded OS, friendly UI, make machine easy, convenient and flexible to operate.
3 , High Speed linear array CCD true color sorting technology with HD lens ensure high speed, accurate sorting.
4 , Advanced LED light source, reliable, durable, energy saving and environmental care.
5 , Suitable for cereal and industrial schistose granular sorting.

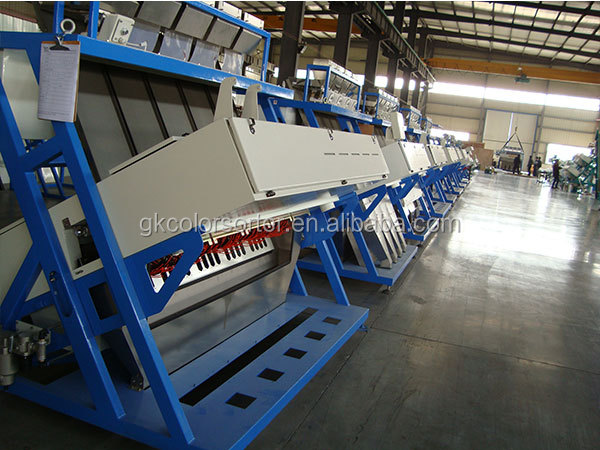

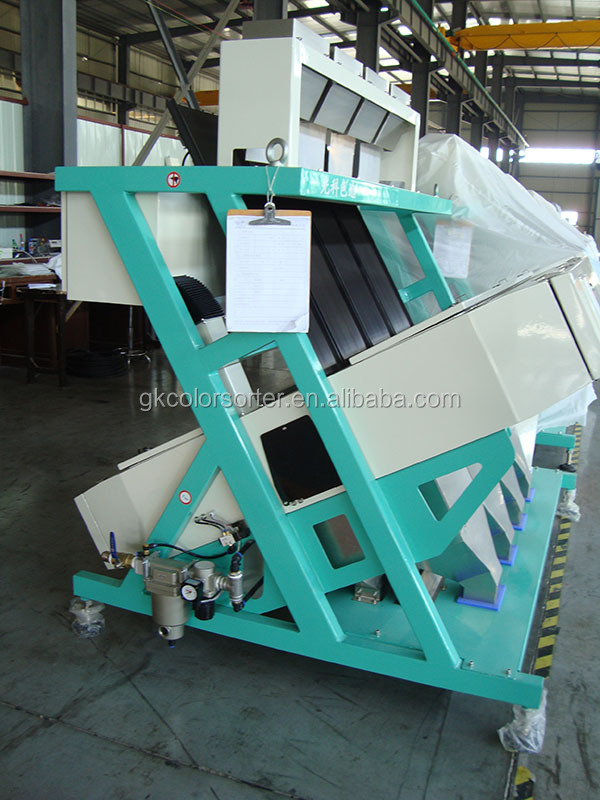

Test
Every machine is carefully tested for functionality and under load on our test racks. Only machines that pass the strict quality procedures leave our factory gates.

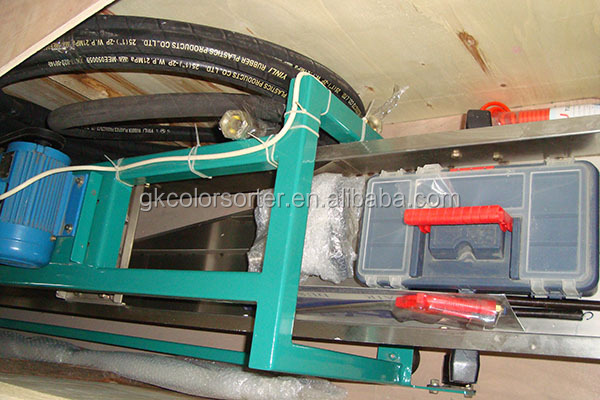

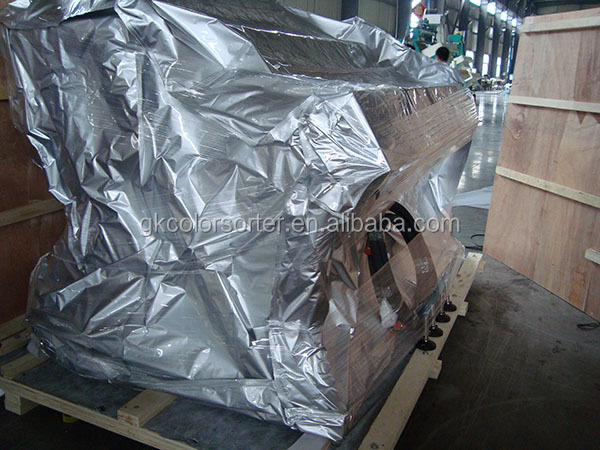

Package
Machines will be carefully packaged to endure transportation under harsh conditions. Handling instructions are designed to protect the machine in the critical moments during transportation, unloading and installation.
Select the right instrument for your sorting needs
There is a lot of confusing and misleading information in the markets about what optical sorters can do and what not and what type of technology is needed for what kind of sorting purpose.
By understanding your target product, production process, input, typical defects and foreign materials to be removed, our trained experts will introduce the most suitable technology solution to you.
Application centers in multiple locations allow to test-run your product on Guang Ke optical sorters.

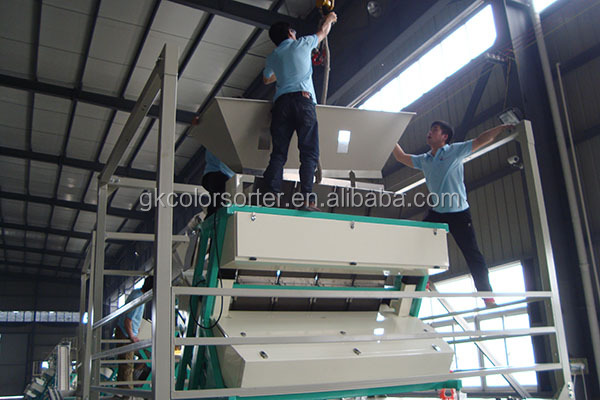

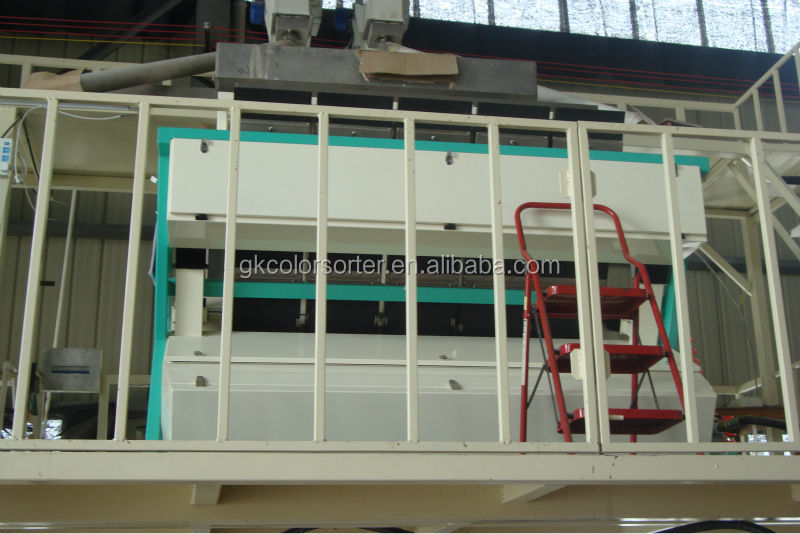

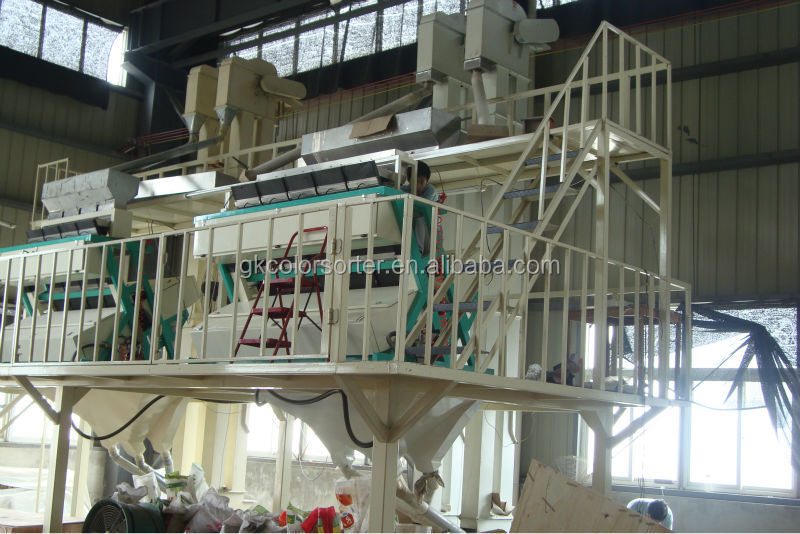

Installation and commissioning
Guang Ke optical sorters come with clear instructions on how to install them for best performance.
After installation, our service engineer will help you set-up the machine and provide instructions on how to run it.
Pre-settings help to quickly change between products and achieve good quality sorting results.

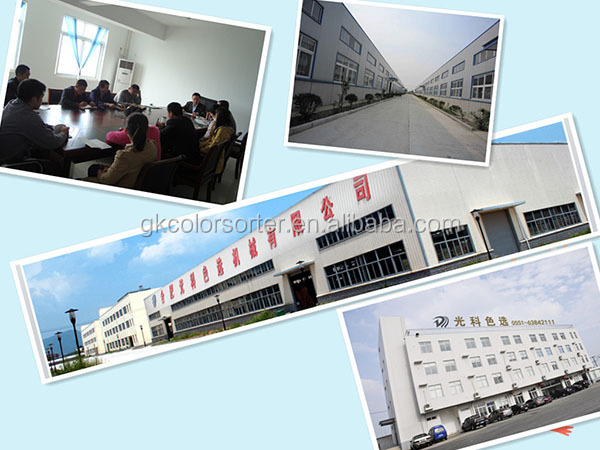

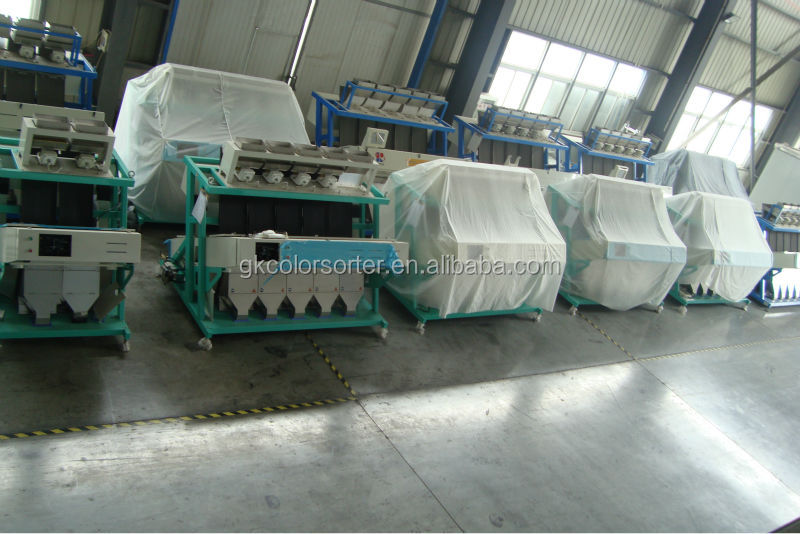

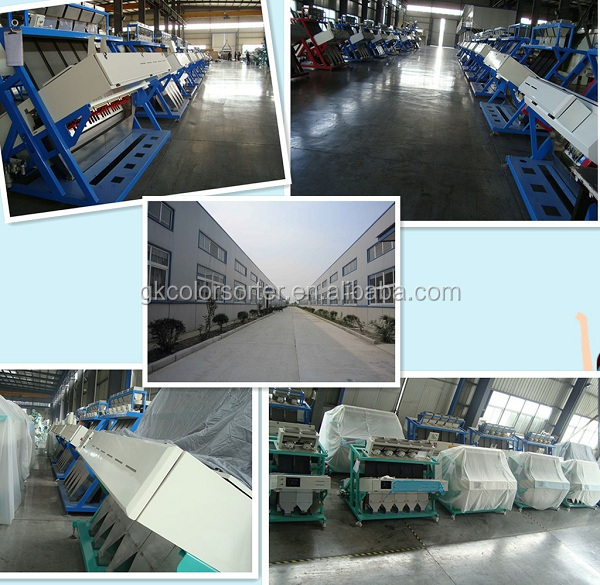

Factory Show
| Place of Origin: |
Anhui China (Mainland)
|
Brand Name: |
Guangke
|
Model Number: |
GK-ZC-256
|
| Type: |
Grain Processing Equipment,saffron seed sorter
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
Usage: |
Select different kinds of wheat
|
| Factory Visit: |
Welcome
|
Condition: |
100% new
|
