metallized BOPP capacitor (CBB60),China CSF price supplier

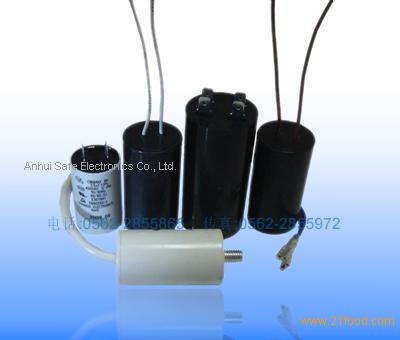

metallized BOPP capacitor (CBB60)
FOB Price:Price can be negotiated
Production Capacity:3O million
Payment Terms: CIF
Update Time:2024-02-18
Product Description

CBB60Capacitor
Features:
metallized BOPP capacitor (CBB60) takes heavy-edge metallized Al/Zn PP film as electrodes and dielectric. metallized BOPP capacitor ‘s(CBB60) components are sealed with flame-retardant epoxy resin. It  has cylindrical outline with high moisture resistance and stability.
Applications
Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for washers and high efficiency compressors of refrigerators etc. So it can be also called
AC Motor Capacitors, motor running capacitor,motor starting capacitor and so on .

metallized BOPP capacitor ‘s(CBB60)Technical Specifications
Standard IEC 60252-1:2001
Technical features
Climate type 40/70/21 or 40/85/21
Capacitance tolerance ± 5%
Insulation Resistance ≥3000S MΩ·μF



metallized BOPP capacitor ‘s(CBB60) Dielectric dissipation factor tgδ≤0.002 (50Hz 100Hz)
Application requirements
Altitude ≤ 2000m
Residual voltage in application :less than 10% of rated voltage.
Allowed maximum voltage: less than 1.1 times of rated voltage
Permissible maximum current: less than 1.3 times of rated current
metallized BOPP capacitor ‘s(CBB60) Dimensions & specifications (mm)



Rated voltage

(VAC)

Nominal capacitance

   (MFD)

Size(mm)

D



H



200,250,370,

400,440,450





More than 1μF

30,32,35,40,

41,43,45,46

   50

47,57,65,73,

80,84,85,98,

105,110



Note 1 Terminal leads are wires or 250# (187#) single (dual) tab(s).
2 Other dimension serials can be specified in pursuance of customer's request





Anhui Safe Electronics Co., Ltd.

Add: No.1 Weiyi Road , Shizishan Economic Development Zone,Tongling city, Anhui province, China

Contact person : Austin

Postal : 244000

Other Products
Company Profile
Name: Anhui Safe Electronics Co., Ltd.
Main Products: capacitors and BOPP film
Business Type: Manufacture & Trade
Total Employees: < 20
Address: No.1 Weiyi Road, Shizishan Economic Development Zone,Tongling city,Anhui province,China

Our company is specilized in capacitors and capacitors film such as AC Motor Capacitors,CBB 65,CBB 61,CBB 60,Oil ,aluminium can capacitors ,Metallized  Film, Polypropylene Film and so on.Since the foundation of our company, the high-end slitters, the large-scale high-velocity winding machines, metal-spraying machines, automatic line and automatic test line etc. have been imported successively from Japan, Italy, and Switzerland.
   The production instrumentalities are state-of-the-art with internationally first-class products quality. The annual output of all types of AC Motor Capacitors is 30 million pieces taking the lead in this industry in China. There is a standard capacitor lab and calibration rooms for weights-and-measures gauges and test instruments have been set up in our company. We have got ISO9000 Quality System Certification and are endowed with considerable strong capability of technological development and quality control.
      With one decade of experience accumulation and constant renovation, our AC Motor Capacitors make three key essential technological breakthroughs in the aspects of safety, endurance and temperature resistance. Our capacitor film have good quality and enjoy heigh reputation .The products have all kinds of quality approvals to enter international market such as CQC, UL, CUL, TUV and VDE. The capacitors are suitable for use in diversified kinds of domestic and overseas prestigious-branded air-conditioners, refrigerators, compressors, washers, illuminators and so on.
Polypropylene Film are used to capacitors,packing and so on.
