milk Pasteurizer,China changlong price supplier

milk Pasteurizer

FOB Price:Price can be negotiated

Production Capacity:5 Set/Sets per Month

Payment Terms: US $32,310 / Set

Update Time:2024-08-13

Contact Supplier

Product Description

Pasteurizer
1. full automatic
2. PLC control
3.500-20000L/H
4.touch screen

Pasteurizer

1. product introduction

Product introduction: The sterilization process of pasteurizer not only can be suitable for common products, but also can satisfy special requirements of customers, for example: long term production of products with granules or medium and high viscosity. Such as cream, Pure Milk etc. products (milk, FRUIT JUICE and cream) of high viscosity; products containing giber and larger pulp granules, products of high acidity and products corrosive to the dead angle. The products can be pasteurized at a temperature of 85~95°C.

Main features: Hard to agglomerate, long working time; PLC control with simple and correct operation; touch screen display, wich is direct and full;self-provided CIP cleaning system, easy cleaning;reliable materials with high pressure withstanding capacity; low maintenance cost. It can be customized to satisfy individualized requirements of different customers.

2.Technical parameters

Name		TG-PUT-15	TG-PUT-20	TG-PUT-25	TG-PUT-30	TG-PUT-55	TG-PUT-105
production capacity	t/h	2	3	4	5	10	20
heat exchanging area	m2	15	20	25	30	55	105
temperature of material inlet	°C	5	5	5	5	5	5
temperature of material outlet	°C	5	5	5	5	5	5
sterilizing temperature	°C	85-95	85-95	85-95	85-95	85-95	85-95
heat preservation period	S	15	15	15	15	15	15
ice water consumption	multiple	3	3	3	3	2	2
cooling water consumption	multiple	2	2	2	2	2	2
energy consumption	kw	10	10	12	14	16	20
outline dimensions	mm	350019001880	350019001880	450019501880	450020001880	650020001880	650020001880

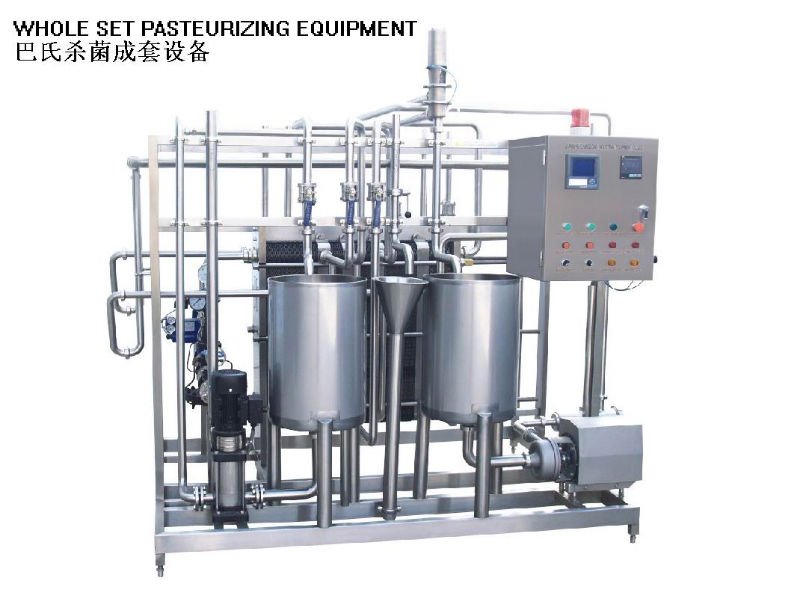

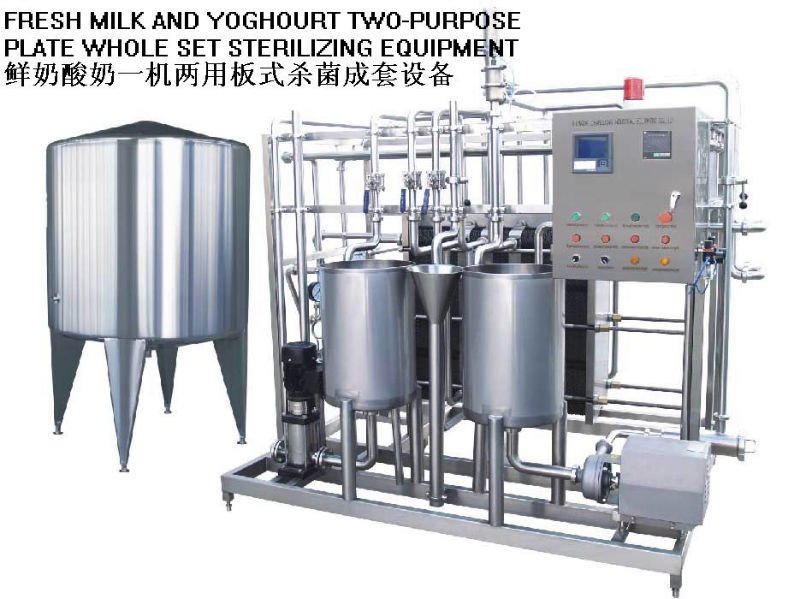

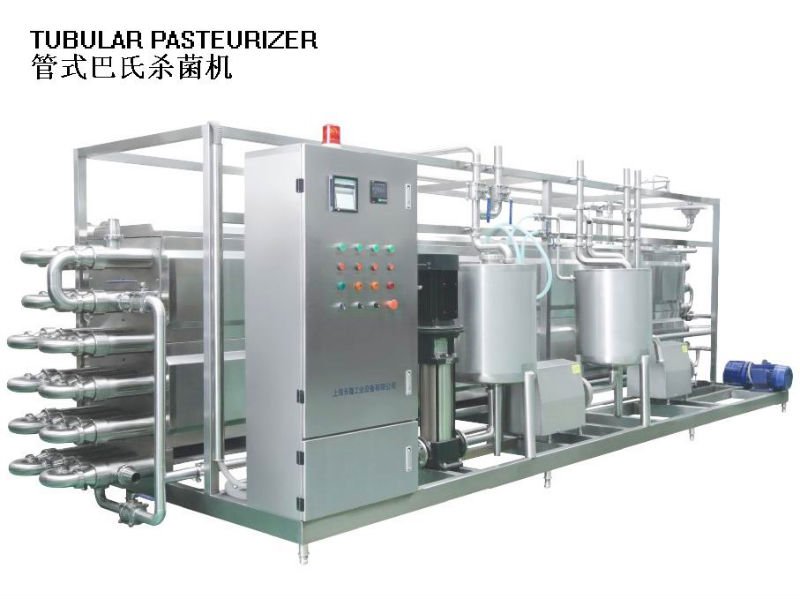

3. products pictures

Place of Origin:	Shanghai China (Mainland)	Brand Name:	changlong	Model Number:	500-20000L/H
Usage:	milk and juice

Other Products

milk Pasteurizer

ConLon milk pasteurizer

ConLon mixing tank

ConLon milk pasteurization machine

Company Profile

Name: Shanghai Changlong Industrial Equipment Co., Ltd.

Main Products: Plate Heat Exchanger,Plate Pasteurizer,Tubular UHT Sterilizer,Pasteurizing Equipment,Yoghurt Pasteurizer

Business Type: Manufacturer, Trading Company

Total Employees: 101 - 200 People

Established Year: 2002

Main Markets: Western Europe, Eastern Asia, Mid East, Oceania, Africa

Address: No.1555,Xiaonan Rd,Jianghai Economic Zone ,Fengpu,Shanghai

Shanghai Changlong Industrial Equipment Co., Ltd. is a leading manufacturer of sterilizing equipment in China. We focus primarily on the excellent design and production of our sterilizers combined with superb customer service. We mainly manufacture products such as multi-series plate (tabular) heat exchangers; tubular/plate sterilizers; ice cream whole set equipment; flash evaporation equipment; degasser units (degasser units); and CIP (Cleaning in Place) steel storage tanks. We also provide post-sales service of our sterilizing equipment, including installation and any other services as the requirements you may have.

Founded in 1996, now we have more than a decade of experience in the manufacture of heat exchangers. We also maintain a leading position in the markets of domestic heat exchangers and sterilizing equipment. With our high level of products and services, we have also established solid relationships with several large domestic enterprises, such as Mengniu, Yili, Bright Dairy, Jiabao, Jianlibao, and Dalian China Milk Enterprises, from which we receive consistent and high reviews. All equipment we manufacture here in China is also widely applied in such fields as dairy products, fruit juices, the wine making industry, chemical pharmacy, power stations, and hotels.

Excellent employees are vital to a successful enterprise and quality products. Our company has gathered several professionals who specialize in the design and engineering of heat exchangers and sterilizing equipment. Our technical consultants and professional engineers are responsible for designing and modeling, guaranteeing that our sterilizing equipment, heat exchangers and other products are safe and reliable. Our efforts in the pasteurizing equipment industry have won us markets internationally, including Germany, Japan, Australia, the CIS, Southeast Asia, and the Middle East. We have even established an Australian Changlong Company in Australia.

Our equipment at Changlong has passed the examination performed by the National Quality Supervision and Inspection Center. Our sterilizing equipment is manufactured in accordance with ISO9001:2000 national quality management system. The quality control we employ in our production of sterilizing equipment guarantees you get the best sterilizing equipment available. Our products have been awarded the Technical Results Transformation Prize of Shanghai and New Product Plan Prize of Shanghai. These achievements illustrate how Changlong has stepped into the high-tech enterprise arena in fact.

The feeding pump automatic control system of our sterilizers, nozzles of degasser units and plates of heat exchangers all have national patents. With a registered trademark that the State Administration for Industry & Commerce has certified, our equipment has been widely applied among 45 industries, and we have also successfully registered in Russia and Japan, under the authorization of CCPIT.

We at Changlong are exporting our sterilizers internationally. Our location in the trade center of Shanghai allows us with more convenient shipping of our sterilizing equipment. With products at better prices, we are able to pass this savings on to our customers. We sincerely look forward to working with even more global consumers, and you can be assured that we will welcome your business by providing high-quality sterilizing equipment and stellar customer service.
Changlong products not only enjoy high reputation in the country,but also have been exported to Germany,Japan,Australia,Russia,Southeast Asia and Mid East etc.countries and areas.It has also established Australia Changlong Company in Australia,Which has made it more convenient and prompt to push domestic products to the world. more
