Multi-function chocolate depositing machine,China shenmin price supplier

INTRODUCTION:

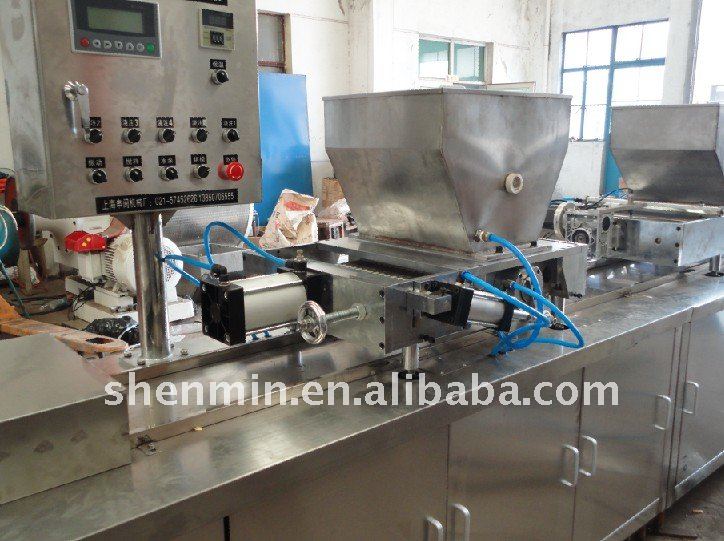

SM-275B multi-functional chocolate depositing machine.It is based on SM275A,has more function than SM275A.

SM-275B has two depositor.the frist depositor,the second depositor.it can produce 2color chocolate ,the color is up and down.so your everyone information is important to us.we will make a special chocloate machine to you.

Features:

1.PLC control system;

2.with  vibration system;

3.SUS shell.the parts which chocolate will contact are 304SUS.

    Frame  is carbon steel(frame won't contact with food).

4.Produce pure chocolate,1~2 color chocolate(1color,2color----up and down or

   2 ribbons or right and left),chocolate with chopped nuts, chocolate with filling

5.plane chocolate ,half ball chocolate.

Also,we can make the machine according your demands.like the brand of Motor and cylinder and PLC,etc.

but the most important is you should tell me what kind of chocolate and capacity,then we can confirm whether this kind of machine be suitable for you.

Chocolate sample:

PARAMETERS:

1.Standard chocolate mould:275×175×H(mm)

2.the weight of chocolate:1-15g

3.Standard 32-bit Pistons, can also adjust the combination of depositing

4.Thermal cycle system automatically set the temperature control

5.Can be equipped with automatic ejection device and cooling tunnel.

6.power:<4kw

7.the speed of depositing:≤30times/mins

8.machine weight:around 1500kg

9.Dimension:5500~ L×600×1400mm

10.chocolate mould is plane mould or other,it can be made according to the customers demands.
