multi-functional lollipop Packaging Machine Die head:45# steel,hard chrome-plating.
Screw: 38CrMoAl
Motor inverter controlled
multi-functional lollipop packaging machine
The Pp film machine machine usage :
1) It is used for blowing Plastic film of Polypropylene (PP)
2) Which is used for all kinds of plastic membrane and packaging bag, such as clothes bags, children toy packaging and medicine packaging, etc
The cylinder and the stems of extruder are mode of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment
The Pp film machine technical variable:
| Type |
SJF 55-600 |
SJF 60-700 |
SJF 70-900 |
| Diameter of screw |
Φ55 |
Φ60 |
Φ70 |
| L/D |
28:1 |
28:1 |
28:1 |
| Folding width of film(mm) |
100-500 |
100-600 |
300-800 |
| Single-face Thickness of film(mm) |
0.01-0.1 |
0.01-0.1 |
0.01-0.1 |
| Max. Extrusion(kg/h) |
30 |
45 |
60 |
| Power of main motor(kw) |
11 |
15 |
18.5 |
| Power of Traction motor(kw) |
1.1 |
1.1 |
1.5 |
| Length of Traction Roller(mm) |
550 |
650 |
850 |
| Outline diameter(L×W×H) |
4500×2000×3500 |
4800×2500×3800 |
5000×2800×4000 |
| Weight(T) |
3 |
4 |
5 |
PP film roller
whole machin e with rotary die head
screw with forced cooling fan
Air ring and water bath with water ring(made by high quality cast aluminum)
Clear PP film

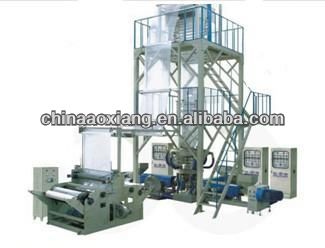

multi-layer type PP film blowing machine(2 co-extrusion, 3 co-extrusion)
| Condition: |
New
|
Application: |
Film
|
Plastic Processed: |
PE
|
| Blow Moulding Type: |
Extrusion Blow Moulding
|
Automatic: |
Yes
|
Place of Origin: |
Zhejiang China (Mainland)
|
| Brand Name: |
Aoxiang
|
Model Number: |
SG
|
Voltage: |
380V
|
| Power(W): |
15kw
|
Dimension(L*W*H): |
4000*3000*6800mm
|
Weight: |
10t
|
| Certification: |
ce
|
Warranty: |
1year
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
| air ring: |
for free
|
air shaft: |
2 piece
|
air blower: |
for free
|
| cooling: |
chiller
|
die head: |
rotary
|
motor: |
famous brands
|
| inverter: |
famous brands
|
change roller: |
automatic
|
loader: |
automatic
|
| brands: |
Aoxiang
|
|
|
|
|
|
|
|
|
|
|
|
