Oxygen Permeation Tester for food packaging,China GBPI price supplier

Function and usage

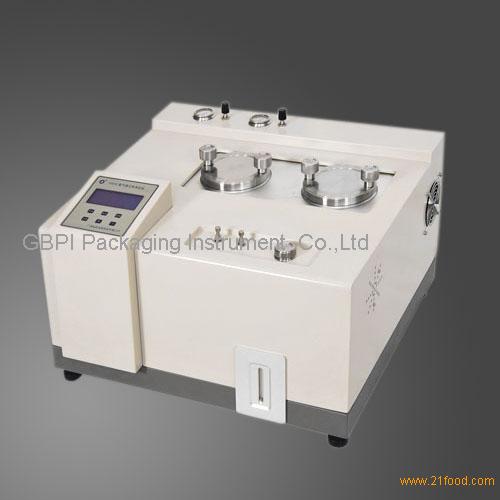

Model Y201D Oxygen permeation tester for Food Packaging tests the high barrier materials, sheets, solar board, compound materials, PVC, rubber, paper, glass, metal and such materials of bottle, blood bags for their oxygen transmission rate(OTR value) .
This instrument is widely used in food industry, pharmaceutical industry, cosmetics, flexible packaging materials industry and college, university and quality institution for permeation rate test and quality control.
It carries the standard of GB/T 19789-2005,ASTM D 3985-1995,ASTM F 1927-1998,ASTM F 1307-1990,YBB00082003,ISO 15105-2003,DIN 53380-3-1998,JIS K-7126.

Specifications
1) Measurement range: 0.02~16500 cm3 / （m2·24h）(with enlarge the test chamber, the max testing range can reach 260000 cm3 / （m2·24h）
2) Test accuracy: cm3 / （m2·24h）
3) Temperature range: 15~45℃
4) Temperature control accuracy: ±0.01℃
5) Humidity range: dry degree= 0?RH，humidity=5~95%RH ，100%RH
6) Humidity control accuracy: ±1%RH
7) Specimen size: Φ80mm，transmission area 50.24cm2 (area no state in the International standard)
8) Specimen quantity: 2 pcs
9) Specimen thickness: ≤2mm
10) Testing environment: in room temperature (23℃）
11) Pressure: 0.2-0.3Mpa
12) Carried gas inlet: 1/8 inch
13) Power supply: AC220/50Hz
