Paper Package Flex Durability Tester,China Labthink price supplier

Paper Package Flex Durability Tester

FOB Price:Price can be negotiated

Production Capacity:10 Sets per week

Payment Terms: T/T

Update Time:2015-11-24

Contact Supplier

Product Description

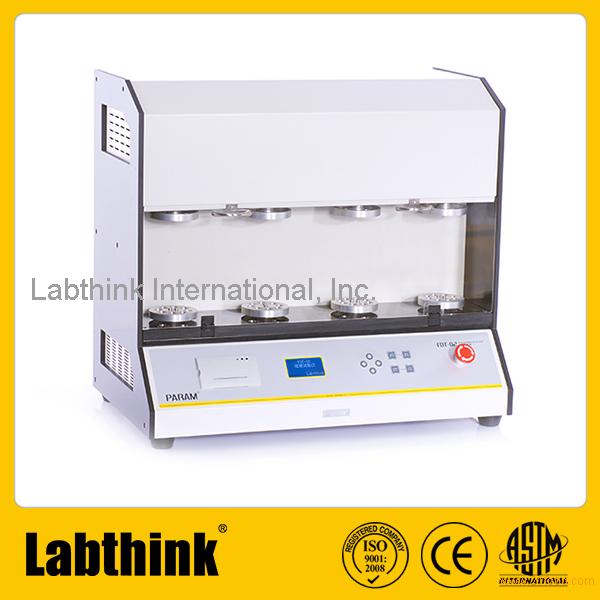

FDT-02 Paper Package Flex Durability Tester is professionally applicable to the determination of flex durability of flexible films, composite films, and coating films. The instrument can simulate the kneading and creasing behaviors of films happened during production, processing and transportation. The flex durability would be obtained by measuring the changes in number of pinholes or barrier properties after test, which could provide quantitative basis for package design and practical usage.

Features:

5 standard test modes and 4 specimen stations support various combinations of non-standard test conditions
Quick switch between long and short strokes improves the test efficiency
Application of servo motor further ensures the accuracy of test results

Dual protection for hardware and software as well as auto reset provides a safe operating environment for customers

Application:
This instrument is applicable to the determination of flex durability of:

Basic Applications	Flexible Films, Composite Films and Coating Films Including plastic films, sheets and composite films e.g. composite films, aluminized films, aluminum plastic composite films, nylon films and coating films for food or drug packages
Basic Applications	Paper Materials Test the flex durability of paper materials

Technical Specifications

Specifications	FDT-02
Flex Frequency	45 /minute
Flex Angle	440° or 400°
Horizontal Stroke	155 mm or 80 mm
Number of Stations	4
Number of Specimens	1 ~ 4
Specimen Size	280 mm x 200 mm
Instrument Dimension	715 mm (L) x 415 mm (W) x 645 mm (H)
Power Supply	AC 220V 50Hz
Net Weight	85 kg
