pasteurized milk processing machine,China Beyond price supplier

pasteurized milk processing machine

FOB Price:Price can be negotiated

Production Capacity:100 Unit/Units per Year

Payment Terms: US $100,000 - 300,000 / Unit

Update Time:2023-05-09

Contact Supplier

Product Description

pasteurized milk processing machine
1.full-automatic or semi-automatic
2.customer design&easy operation
3.High quality&CE

Description of this pasteurized small milk processing line:

This small milk prodcessing line capacity range from 2T/D to 10T/D, it can produce several types of flavored pasteurized milk products, i.e. whole milk, skimmed milk and standardized milk of various fat contents, meanwhile with options to produce yogurt, cheese, cream and butter etc.

This small milk processing line raw milk can be fresh milk or powder milk or both ,this small milk production line milk normally stored at low temperature about 4-5deg c, which can maintain the nutrition at maximum.

End product package of this small milk processing line can be plastic pouches, plastic cups, plastic bottles, glass bottles, roof top box etc. for this dairy production line according to different end product and package type, the production technology is differently designed, but commonly include the following steps:

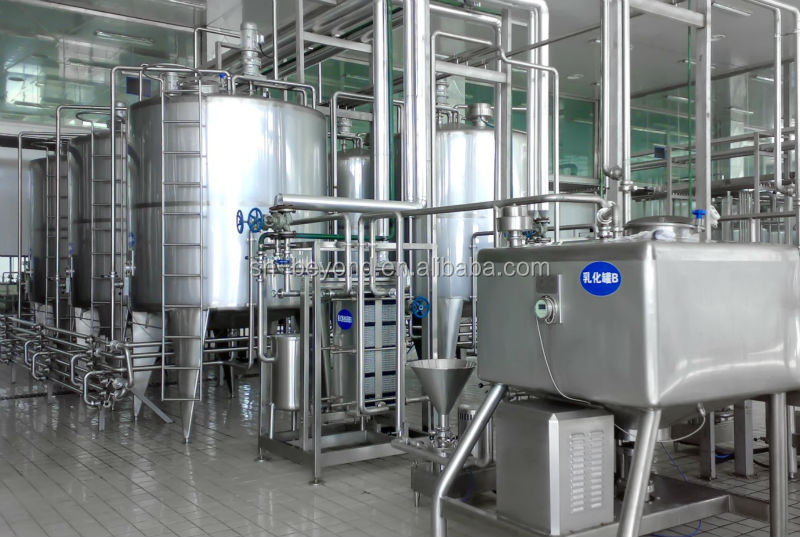

Equipment list of small milk processing line 2000L/D

No	Name	Size	Main Parameter

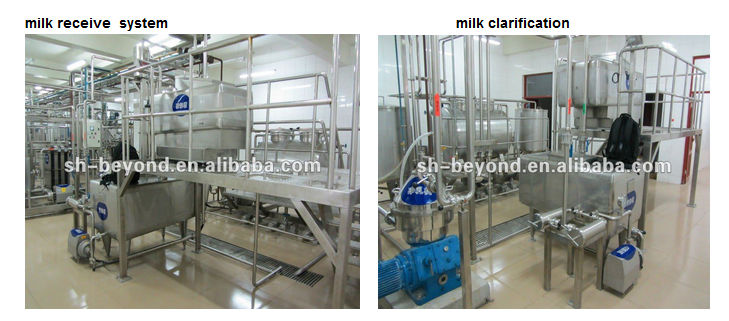

1	MILK RECEPTION, MILK STORAGE UNIT
2	milk acceptor	300L	made of SUS304 stainless steel, single layer,CIP spraying ball
3	milk pump	3T/h	SUS304 , Pump lift 24M , Hard Alloy Mechanical Seal , Inner Shell Bright-Polished
4	single Piping Filter	3T/h	made of SUS304 stainless steel , single pipe,Stainless Steal Filter Element of 100 Mesh

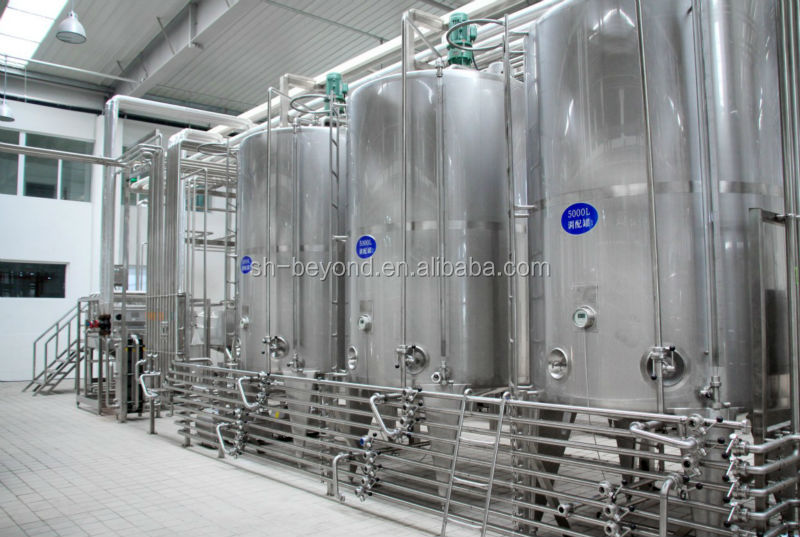

5	milk storage tank	1000L	made of SUS304 stainless steel , heat insulated , Miller's jacket , vertical agitator , CIP spraying ball , breather valve , digital show thermometer , sampling point
6	milk pump	3T/h	SUS304 , Pump lift 24M , Hard Alloy Mechanical Seal , Inner Shell Bright-Polished
7	Blending Unit
8	storage tank	500L	made of SUS304 stainless steel , heat insulated , Miller's jacket , vertical agitator , CIP spraying ball , breather valve , digital show thermometer , sampling point
9	milk pump	3T/h	SUS304 , Pump lift 24M , Hard Alloy Mechanical Seal , Inner Shell Bright-Polished
10	single Piping Filter	3T/h	made of SUS304 stainless steel , single,Stainless Steal Filter Element of 100 Mesh
11	plate-type exchanger	1.5T/h	SUS304,Double pipes
12	high pressure homogenizer	500L/h	40MPa

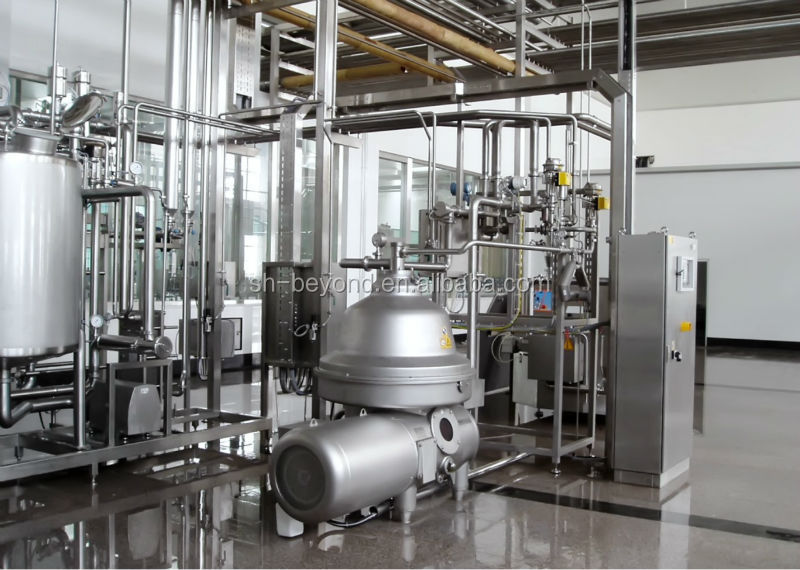

13	milk separator	500L/h	the content of dried skim milk ( % ) <0.03,the speed of rotator is 8000rpm.
14	buffer container	100L	made of SUS304 stainless steel,with a cover,single layer
15	buffer&cooling container	100L	made of SUS304 stainless steel,with a cover,single layer
16	milk pump	3T/h	SUS304 stainless steel, with a cover, heat insulated, Miller's Jackets
17	butter-churner	100L	SUS304
18	temporary and ferment storage tanks	500L	made of SUS304 stainless steel , heat insulated , Miller's jacket , vertical agitator , CIP spraying ball , breather valve , digital show thermometer , sampling point
19	milk pump	3T/h	SUS304 , Pump lift 24M , Hard Alloy Mechanical Seal , Inner Shell Bright-Polished
20	rotor pump	1T/h	SUS304 , Hard Alloy Mechanical Seal , adjustment speed by manual
21	plastic pouch filling machine
22	plastic cup-shaped filling machine

This is our hot-sale product in our factory.We wish

provide and help you more.

Contact person:Mr.Mark

WEB: www.shbenyou.com

ADD: NO. 4476, Hangtang highway, Fengxian District, Shanghai, China

Mobile: 00 86 - 15026760800

Skype: mark.cao89

Condition:	New	Place of Origin:	Shanghai China (Mainland)	Brand Name:	Beyond
Model Number:	customize	Type:	Processing Line"> Processing Line	Voltage:	220v/380v
Power(W):	100-200kw	Weight:	Different size different weight	Dimension(LWH):	Different size different dimension
Certification:	CE&ISO	Warranty:	12months	After-sales Service Provided:	Engineers available to service machinery overseas
Certificate:	ISO9001:2008/HACCP/GMP	Main material:	SUS304 or SUS316	Control type:	automatic/semi-automatic
energy consumption:	Low consumption	capacity:	500-10000L/H	Motor:	ABB
PLC control:	siemens	installation period:	1-3months	Cups material:	pouches,paper box,glass bottle
effeciency:	high effeciency
