Pasteurizing Machine for Milk,China HH price supplier

Pasteurizing Machine for Milk

FOB Price:Price can be negotiated

Production Capacity:1000 Unit/Units per Year

Update Time:2014-09-19

Contact Supplier

Product Description

Pasteurizing Machine for Milk
1.automatic
2.low energy comsumption
3.quick sterilizing no dead angle
4.CE certificate

Product Description

Pasteurizing Machine for Milk 's Suitable Material

Pasteurizing Machine for Milk is suitable for milk, juice, tea drinks, milk drinks, yogurt, ketchup, condiments, beer, wine, Butter , jam, ice cream, egg products, Powder and other products.

Pasteurizing Machine for Milk ’s Characteristics

1. Huge viscosity range . The use environment PH value is 1-14 . The products produced by this system can maintain 3-6 months under normal temperature (do not add any preservatives), thus eliminating the cold chain ;

2. A utomatically or semi-automatically controlled by computer with LCD touch screen operation;

3. Instantaneous processing maintain the products' original flavor ;

4. PID temperature control system, Sterilization temperature recorded continuously in real time ;

5. Uniform heat treatment, heat recovery up to 90% ;

6. D ifficult to form tube fouling and pollution ;

7. Long continuous operating time and good CIP self-cleaning effect ;

8. Less spare parts, low operating cost ;

9. Easy to install, inspect and remove, convenient to maintain ;

10. Reliable materia l affordable to higher product pressure.

Pasteurizing Machine for Milk 's Material

The Pasteurizing Machine for Milk material from Hangzhou Huihe Machine Facture Co., Ltd usually is SUS304 or SUS316L if the customer has no special requirements.

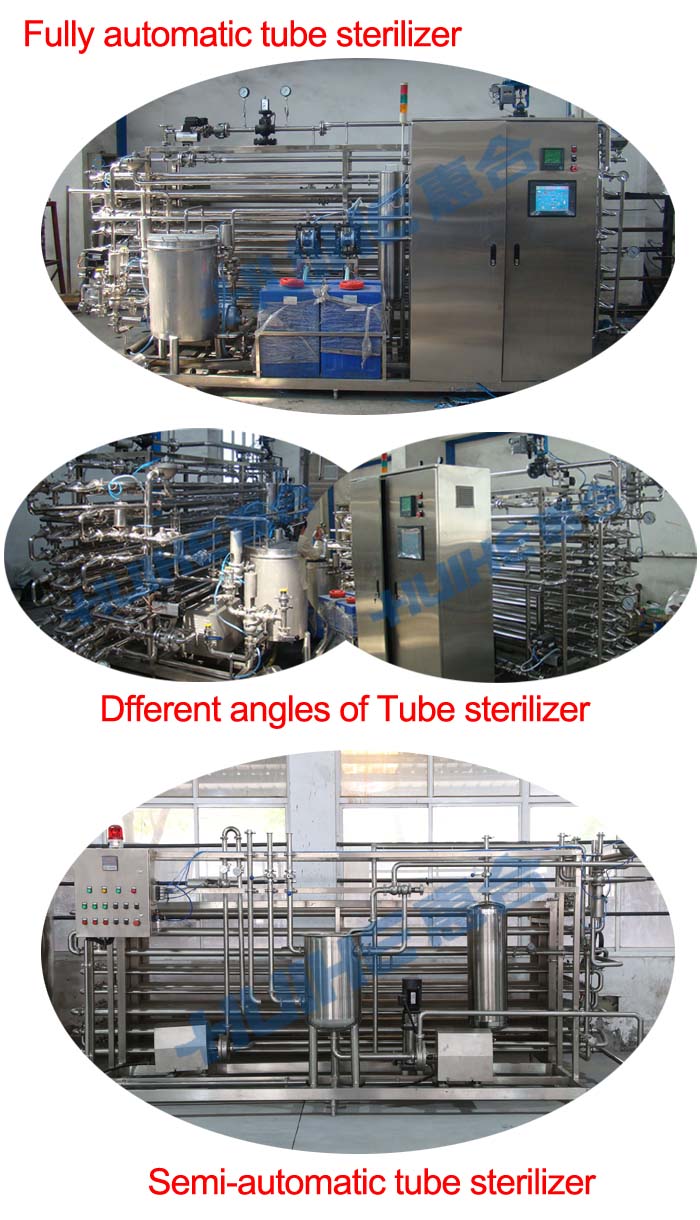

Pasteurizing Machine for Milk ’s Detailed Picture

Pasteurizing Machine for Milk ’s Technical Parameter

Process parameters:25°C→105°C(10s)→90°C→40°C return

Cooling water:1:2(≤30°C)

Model	Capacity (t/h)	Consumption of steam (kg/h)	Electric power (kw)	Tube diameter(Φ)
Model	Capacity (t/h)	Consumption of steam (kg/h)	Electric power (kw)	Material	Steam	Medium
HE-UHT-XGZ-1	1	130	1.9	25	DN25	25
HE-UHT-XGZ-2	2	260	2.1	25	DN32	25
HE-UHT-XGZ-3	3	390	3.0	38	DN40	38
HE-UHT-XGZ-4	4	520	3.0	38	DN40	38
HE-UHT-XGZ-5	5	650	3.0	38	DN50	38
HE-UHT-XGZ-6	6	780	3.0	51	DN50	51
HE-UHT-XGZ-8	8	1040	3.7	51	DN65	51
HE-UHT-XGZ-10	10	1300	5.2	51	DN80	51
HE-UHT-XGZ-15	15	1950	7.0	63	DN80	63
HE-UHT-XGZ-20	20	2600	11.0	63	DN100	63

Notes:

1. The parameters of tube sterilizer in the chart are standard configuration. Any specific requirements, please let us know.

2. These process parameters need provided :material properties, sterilization process, specific requirements, etc.

3. Auxiliary equipment: gas storage tank, air compressor, water storage tank and boiler. (customer need to equipped by themselves).

4.My skype: amy.tian90

Our Services

Why Choosing Our Pasteurizing Machine for Milk

Packaging & Shipping

Pasteurizing Machine for Milk ’s Packing Before Delivery

Company Information

Authentication certificate and strength show

Condition:	New	Place of Origin:	Zhejiang China (Mainland)	Brand Name:	HH
Model Number:	Tube UHT	Usage:	Diary Product	Type:	Ultra High Temperature
Voltage:	220V/380V	Power(W):	Made to order	Weight:	1490-4300kg
Dimension(LWH):	Made to order	Certification:	CE	Warranty:	1 year
After-sales Service Provided:	Engineers available to service machinery overseas	Stainless Steel:	Sanitary	Tube UHT:	Liquid Product
Diary Product:	High efficiency	Driven Type:	Electric Steam	Pasteurizing Machine for Milk:	Color Off-white
Material:	SUS304,SUS316L	Automatic grade:	Fully automatic	Customized:	Accept
Sterilization time:	3-16s	Pasteurizing Machine for Milk Usage:	Customized
