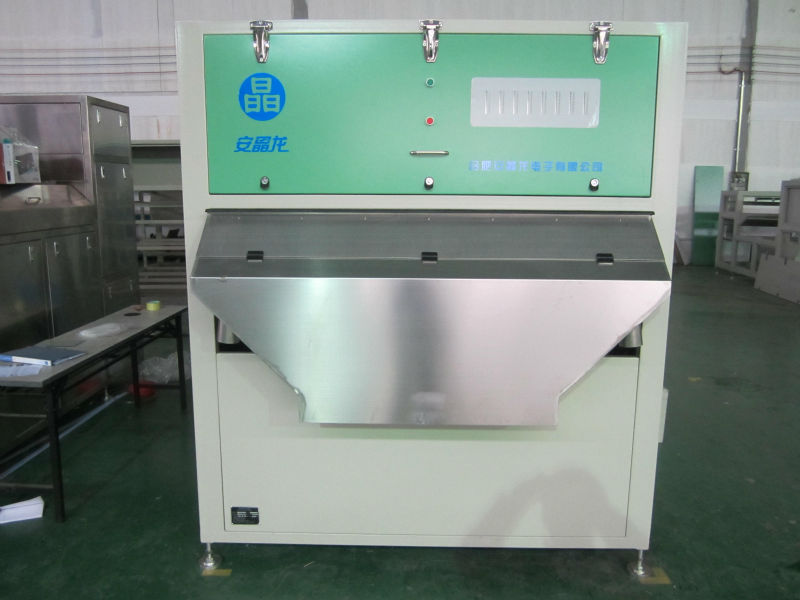

1.Track CCD color sorter 2.High sorting accuracy and low damage ratio 3.Real-time monitoring 4.LED light 5.High producti
Adopt higher-resolution chromatic CCD sensor, separate red, green, blue, gray and many different colors respectively.
Uni que Belt –type or Chute-type design avoid the material jumping in traditional chute-type color sorter, and increase the output.
With world-class optics, high-definition within 0.07 mm2 could identify subtle color and minimal defects.
Unique double layer belt-type design, increase the accuracy and could finish all the processing procedure at the same time.
High-speed parallel data processing chip, real-time and efficient image acquisition and processing system, greatly improving the efficiency of color sorters.
Convenient computer operating system could save many different sorting mode for clients in order to suit different materials.
Product features:
High-Definition and high-sensitivity chromatic CCD image sensor, together with industrial wide-angle lens for accurate recognition;
Adopt the international first-class optical lens; the articulation up within 0.07 mm2 can recognize a subtle chromatic and tiny flaws.
By using high-speed parallel data processing chip, real-time efficient image acquisition and processing system, greatly improving the color Separator working efficiency. High quality image processing algorithm:
Adopt international advanced image processing technology, can effectively identify small to 0.1 mm of tiny impurities, color choose higher accuracy, color choose than lower brought out.
Convenient computer operating system, could save many different sorting mode for clients in order to suit different materials.
Unique LED lighting system, Equipped with LED light source, and to ensure the high-definition image quality, can meet 1000 kinds of color separation, identify color changes.
Fan self-adaptive working temperature, ensure color separator in the high temperature environment also can work normally.
The incomparable eliminate accuracy, more perfectly sorting out finished with a defective; high resolution, big material nozzle; High frequency, long durability and long service life.
Easy for clients to install in factory. Unique double layer belt-type design could finish all the processing procedure at one time, and only need one elevator.
Type
AL2K1C8-256
Channels
256
Output(t/h)
1.5-2.5
Sorting accuracy (%)
>99.98
Optimized carryover(bad :good)
>8/1
Voltage (V)
~220(50Hz)
Power of main machine (kW)
2.5
Air Pressure (MPa)
0.6~0.8
Dimension(L*W*H)(mm)
3080*1820*2150
Weight (kg)
1350
Our machines running in indian market for peanuts, the video website: http://www.tudou.com/programs/view/2EJXtCmsFGc/
Main Products: plastic color sorter,peanut color sorter,coffee bean color sorter,raisin color sorter
Business Type: Manufacturer
Total Employees: 101 - 200 People
Established Year: 2009
Main Markets: North America, South America, Eastern Europe, Southeast Asia, Africa
Address: Rm. 301-302, No. 6 Standard Factory Building, New Century Business Center, No. 16, Hehuan Road, Hi-Tech Zone
Angelon (AJL) is a Hi-Tech. enterprise, located Hefei, China integrating R&D, production and sale, having the modern workshop and large quantities of up-to-date production facilities. Since 2001, our company has been engaged in the color sorting equipments, holding a highly qualified R&D team with image processing technological experts as the leaders, Obtain the latest image processing technology Patents in this filed.
Unlike other manufacturers, our company only develops Tri-color CCD chute-type and belt-type color sorting machines with LED lighting source, we are dedicated to top-rank materials. such as mixed color plastic, quartz, mineral sand, sea salt, raisins, seeds, wheat, coffee beans, different pulses, coarse grains and other special materials. Up to now, In China, we are the only factory which is able to produce the advanced double layers belt-type color sorting machines, automatically separate twice at the same. Our promise is to realize win-win situation. Be responsible for every sold machines in customers sites.
