Shanghai Red Wine Filling and Capping and adhesive labelling line,China shenqi price supplier

The Shanhai  Red Wine  Filling and Capping and adhesive labelling   line is easy to operate and to connect to other Production Lines. Adopting stainless steel materials makes the production process more environmental and healthy. The using of advanced technology makes the filling more effective and accurate.

Purpose and introduction:
This machine is the main liquid filling production lines, which complies with 'GMP' requirements. This machine adopts high-quality 304 stainless steel materials; it's suitable for liquid filling of plastic bottles and glass bottles, stopper, bar cover. The aircraft will be combined with filling and sealing. Advanced design and compact structure are features of the machine. Replacement is very convenient. Combination with other devices can achieve production line just like the labelling machine.
Main technical parameters:
Production capacity: 4 hole: 30-40 bottles / min
Error loading quantity: consistent with national Pharmacopoeia.
Sealing rate: ≥ 99%
Power supply: 380V 50HZ three-phase four-wire
Power: 2KW
Dimensions: 2450 × 760 × 1550mm
Adapt to bottle-shaped: 30ml, 60ml, 120ml round bottle.
Main configurations:
Seal: The Seal Technology Co., Ltd. Taiwan Han-liter product
Gas cylinder: The SUNRISE brand.
Conveyor motor: YYJT90 90W 50:1 Beijing Motor Co., Ltd. products
Capping motor: YYJT90 90W 3:1 Beijing Motor Co., Ltd. products
Contactor: The Zhejiang Chant Electric Group Products
Thermal relay: The Zhejiang Chant Electric Group Products
Regulator: The Zhejiang Chant Electric Group Products
Main motor: 0.75kw Motor Co., Ltd. Hayman Tainting
Reducer: Hangzhou Reducer Co., Ltd. Jiahe
Precision cam indexer: The Automatic Machinery Co., Ltd. Shandong Richburg products
Production process:

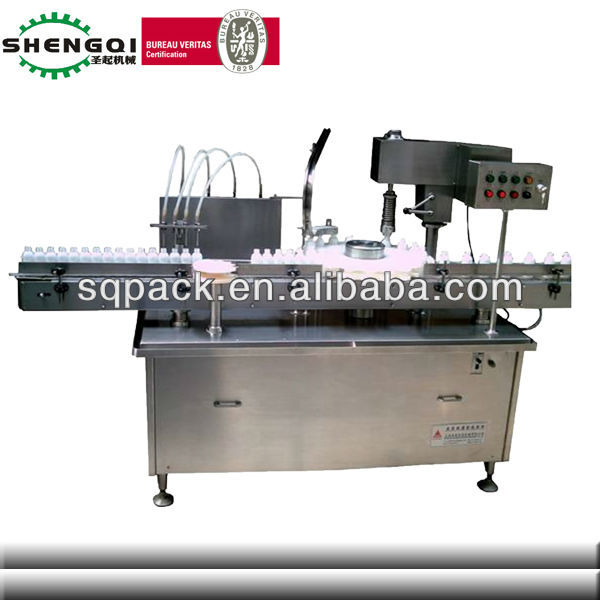

The Shanhai  Red Wine Filling and Capping Machine Arranged in neat rows of bottles into the filling station by the conveyor belt, filling the inside needle inserted into the bottle filling, filling the bottle to leave the needle slowly upward. When the filling stopps, put the bottle into twelve equal portions to the bottle conveyor belt plate, equal portions in the cam plate under the action of the bottle device for intermittent motion, and the lid off the track (in advance to cover the oscillator under the action of the mouth to cover up neatly to send into the track) on the cover wearing in the bottle automatically. Into the capping position: tie down the lid, the lid manipulator grasp the bar, driven by the motor cover, quickly tighten the lid on the bottle. Bar cover finished by ten second sub-plate conveyor belt into the bottle to the next process.

4.  Why Us?

Shanghai Shengqi Packaging Machinery Co., Ltd is a professional manufacturer of

research, design, develop, and manufacture packaging machineries. We are located in

 Fengxian District which develops quickly. We have based on technological innovation,

 kept our eye on technology research and development, payed attention to quality and

 integrity service with the principle of great product, best service, advanced

technology since established. We has introduced advance technology of domestic and

 oversea, improved our products, and enjoyed the reputation among customers. Our

clients has spread all over the country, and exported to Oceania, South America,

 Africa, Southeast Asia and Europe. All of us hope to cooperate with clients closely

 and aspire to produce the first-rate packaging equipments. May our help make a

donation to your success; and your trust help us develop.

Main Products

Liquid Filling Production Line: Oral Liquid Filling Line; Eyedrop Filling Line; Syrup Filling Line;

 Cosmetics Filling Line; Medicinal Liquor; Pesticides Filling Line; Special Bottled Filling Line

Table and Capsule Packaging Line: Counting and Packaging Line for Tablet, Capsule, Solid Pills,

 Cachou etc

Production Line Consists of: Bottle Unscrambler-Bottle Washing-Filling-Capping-Labeling(Shrink Sleeve Labeling Machine)-Boxing Machine

Specialized in various kinds of non-standard automation equipments.

Pictures of Factory

5.  About Packing

Dear Customer, thanks for your support. To ensure our service quality, we will execute

 the following packaging standards in delivery:

All the products before delivery should be tested by assemble and debugging engineer, wiped up and

 cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible

package. In addition, without standard tools, manual and other documents, and allow ex-factory

 confirmation sheet, the machine cannot leave factory.

All the products will be packed in wooden case. The exported products use plywood case to pack.

The foot margin of equipment fixed tightly to make the machine can experience loading and uploading,

the upward mark will be posted on the wooden case.
