Single wall sus304 blending tank,China DF price supplier

Single wall sus304 blending tank

FOB Price:Price can be negotiated

Production Capacity:120 Sets/Month

Payment Terms: FOB/CIF

Update Time:2023-05-04

Contact Supplier

Product Description

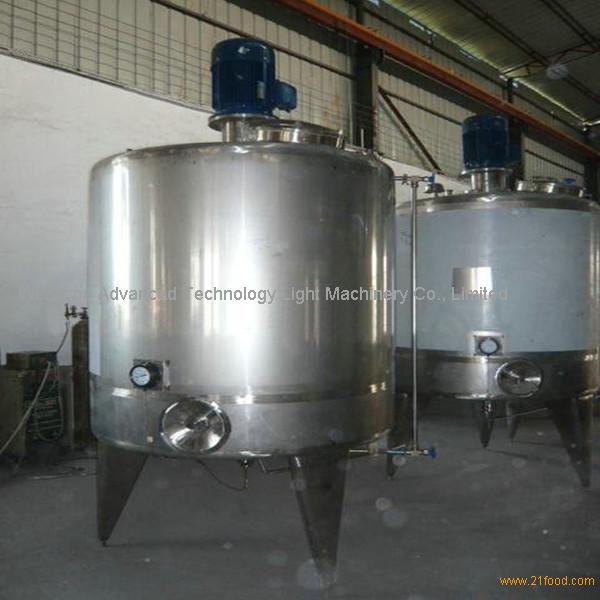

Stainless steel blending Tank with agitator

Stainless steel blending tanks are widely applied in the beverage, food, dairy, pharmaceutical, chemical and process industries used as blender tank, buffer tank and storage tank, which cleanable to sanitary standards (e.g. FDA, USDA standards).

Structure:

1. Single layer structure, dual-layer with Jacket or Insulation. Three layer with double jacket.

2. High quality stainless steel 304 or 316L available.

3. Humanized structure design & easy to operate;

4. Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitation;

5. PU Foam Insulation are available to keep temperature.

Technical parameter

Volume(L)	Diameter of the inner (mm)	Diameter of the jacket (mm)	Power of motor (kw)	Stirring speed (r.p.m)
100	550	650	1.1-1.5	60-85
150	600	700	2.2	60-85
200	650	750	2.2	60-85
300	800	900	2.2	60-85
500	900	1000	2.2	60-85
800	1100	1200	4	60-85
1000	1200	1300	4	60-85
1500	1300	1400	4	60-85
2000	1400	1500	4	60-85
2500	1400	1500	7.5	90
3000	1400	1500	7.5	90
3500	1400	1500	7.5	90
4000	1500	1600	7.5	63
5000	1600	1700	7.5	63
6000	1800	1900	15	100
8000	2000	2100	15	100

Configuration:

1. Quick open manhole

2. 360 degree rotation CIP spraying ball;

3. Sanitary breathing cover

6. Mixer: Paddle; Frame; Impeller;

(Top, bottom side & bottom, etc. places to set the mixer)

7. PU foam Insulation

8. Thermometer , Liquid level meter & ladder (According to customer requirements)

9. Other Accessories can make according to customer's special requirements.

Other Products

Single wall sus304 blending tank

Electricity heating mixing tank

Stainless steel mixer tank

Industrial food mixing tanks

Company Profile

Name: Wenzhou Advanced Technology Light Machinery Co., Limited

Main Products: stainless steel mixing tanks,blending tanks,emulsifying machines,jacketed kettles,extraction tanks,pressure vessels,beer fermenters,fermentation tanks

Business Type: Manufacture & Trade

Total Employees: 50 ~ 100

Established Year: 1999

Total Annual Revenue: US$1 Million - US$2.5 Million

Main Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe,

Address: No.25,shacheng Industrial Park,longwan district

Wenzhou Advanced Technology Light Machinery Co., Limited,with its The predecessor of"Zhejiang Dafeng Light Machinery Co. Limited",is a Enterprises of stainless steel hygiene fluid equipment,emulsifying equipment,the Pharmaceutical and biological machinery equipment,production line for beverage, water treatment,sanitary valves,pipes fittings etc,our company took the lead in passing national manufacturing license certification for pressure vessels(class D) and ISO9001:2000 international quality system certificate.In general,we are a rising comprehensive Enterprise which is engaged in the field of food,dairy,beverage,chemical and pharmacy industries.
By always keeping to the belief,"Quality is the life of product and the foundation for enterprise development".Advanced Technology Enterprise is continuously strengthening the internal management system,introducing internationally advanced machining equipments and giving full play to the plasma automatic welding technology,cold working technology,polishing technology and automatic control technology.In addition,the company equipped with material analyzer,CIP inspector,roughness inspector,mechanical performance tester,sealtester and strength pressure test equipment and carries out whole-course supervision on the control points related to quality.

We carries forward the principle of"customer demand first",each procedure and chain are strictly controlled to keep improving and make products in full accordance
with GMP and FDA standards.
The requisite standard to evaluate the success of every project is if the project is at the leading position in the field,and if it has brought economic benefit to the customer.
