SM6040 coconut shells laser cutting machine,China Sameng price supplier

SM6040 coconut shells laser cutting machine

FOB Price:Price can be negotiated

Production Capacity:100 Set/Sets per Month coconut shells

Payment Terms: US $1,999 - 7,999 / Set

Update Time:2025-03-06

Contact Supplier

Product Description

Coconut shells laser Cutting Machine:
1.3phase stepper motor and driver
2.DSP controller
3.free traiing
4.lasercut

Product Description

SM6040 coconut shells laser cutting machine

Laser Cutting Machine specification:

Product model	SM-3040
Maxi working area	400*300mm
Laser power	80W
Optional laser tube	60W, 80W, 100W,
body dimension(LWH)	1 10 0 x 660 x 450 mm
Packing size(LWH)	1 3 4 0 x 88 0 x 60 0 mm
Packing	Standard plywood case for export
Gross weight	150KG
Machine color	Yellow & Gray; White & Gray
Delivery time	7 days
Payment terms	T/T

Laser Cutting Machine performance:

Laser Types	Hermetic And Detached CO2 Laser Tube
Engraving speed	0-75,000mm/min
Cutting speed	0-40,000mm/min
Location precision	< 0.01mm
Resetting positioning accuracy	< 0.01mm
Power supply	AC 220V/50Hz
Gross power	<1,000W
Operating temperature	0 - 45 degree
Operating humidity	5 - 95%
Minimum shaping character	English 1 x 1mm
360 degree slope engrave	Yes
Driving system	stepper
Adjustable up-down distance of laser head	30mm
Up-down range of working table	Mechanical 300mm
Cooling mode	Water-cooling and protection system
Auxiliary Devices	Exhauster And Exhaust Pipe
Software	Lasercut 5.3, support Coreldraw, Autocad
Graphic format supported	BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, D ST , DWG, CDR, etc

Laser Cutting Machine Standard Accessories:

Laser tube	1 pc
Optical lens & reflectors	1 set
Air Pump	1 pc
Exhaust fan + exhaust pipe	1 set
Software CD+ dongle	1 set
Rubber pipe	3 pc
Water pump	4 pc
User manual	1 pc

laser cutting machine Optional parts : 1.Rotary attachment Dia. 80mm,length 500mm (Chuck fixing) 2.Motorized up-down table 3.Water chiller 3.Red light position 4.Auto Focus 5.HEPA Filter

laser cutting machine Optional parts :

1.Rotary attachment Dia. 80mm,length 500mm (Chuck fixing)

2.Motorized up-down table

3.Water chiller

3.Red light position

4.Auto Focus

5.HEPA Filter

Recommended Wearing Spare Parts Laser tube Focus lens Reflect Mirror

Recommended Wearing Spare Parts

Laser tube

Focus lens

Reflect Mirror

Applicable material

wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass an d other nonmetal materials

Applicable material

advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry

Sample:

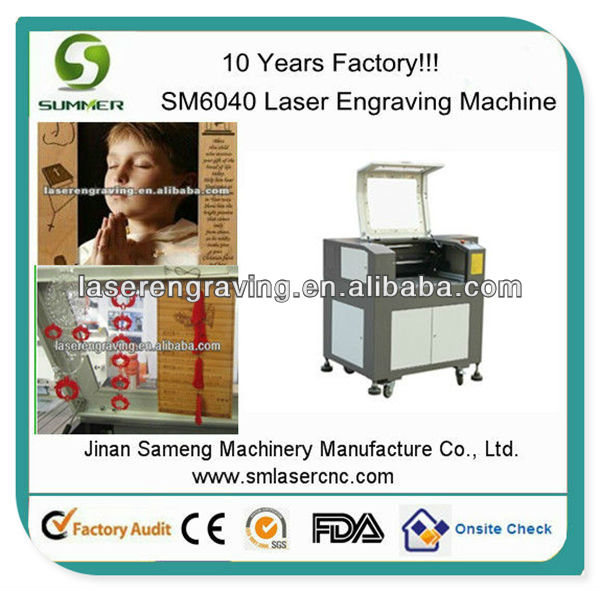

SM6040 co2 laser cutting machine photos:

Packaging & Shipping

Package:

Company Information

Jinan sameng laser is specialized manufacturer of cnc router, laser cutting and engraving machine, laser marking machine with 11 years, located in jinan city. Has 8 producing lines for cnc router, cnc stone engraving machine, cnc advertising machine, plasma cutting machine, laser cutting machine etc.

Our Services

1.We have 10 years producing experience, and keep R&D new product for market demand.

2.All workers have many years assembling experience, the are proficient with producing, so we can deliver the machine to you in time.

3.Sales persons and technical person are careful and patient, they can answer you any technical questions about machine, documents also will be prepared carefully and detailed.

4.we will provide you best after-sale service, every after-sales person has passport, if there is any big problem, we will send some person for maintenance in time. However, most of our laser machines run well all over the world, there is no big problem by now. If there is small problem, we can solve it within 24 hours.

So please give us a chance to provide you best service, with us, you will be the winner of laser-tech industry .

Application:	Laser Engraving	Condition:	New	Laser Type:	CO2
Engraving Area:	600*400mm	Engraving Speed:	60m/min	CNC or Not:	Yes
Cooling Mode:	Water Cooling	Applicable Material:	Acrylic,Crytal,Glass,Leather,MDF,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,Wood	Graphic Format Supported:	AI,PLT,DXF,BMP,DST
Place of Origin:	Shandong China (Mainland)	Brand Name:	Sameng	Model Number:	SM-6040 coconut shells laser cutting machine
Dimension(LWH):	13608801070mm	Certification:	CE,ISO,FDA	After-sales Service Provided:	Engineers available to service machinery overseas
table type:	blade shape table	warranty:	1 year	cutting/engraving accuracy:	0.05mm
control system:	Leetro MPC 6515	laser tube brand:	co2 reci laser tube	laser power:	40W 60W 80W 100w
compatible software:	Coreldraw AutoCAD Photoshop	software operating circumstance:	Windows XP 64/32 bit	Cooling device:	water chiller CW3000
description:	coconut shells laser cutting machine
