small Milk pasteurization equipment for sale
1,made of stainless steel
2,easy to operate
3,temperature can be controled

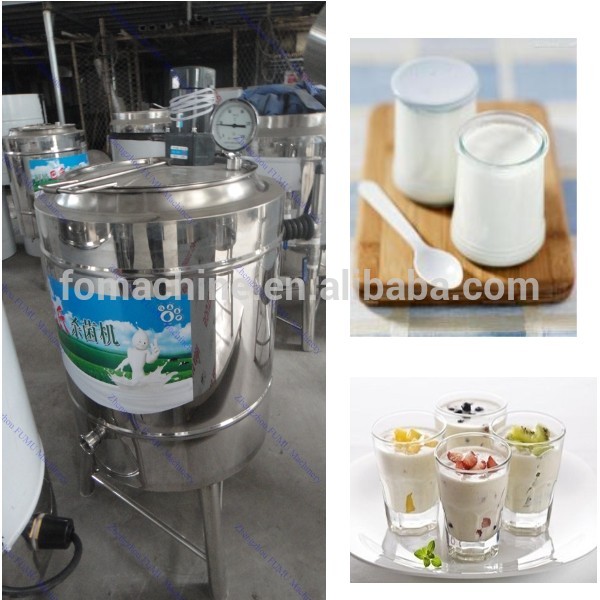

small milk pasteurization equipment for sale
Brief introduction small milk processing line
small milk processing line is equipped with automatic temperature control device, the temperature could be adjusted.
built in temperature compensating device, could keep water temperature balance.
small milk processing line can keep fresh function (72 hours) automatically after process is finished.
Body Machine consists : water cycle Tank and milk tank.
The water cycle tank has two tiers, upper cold water lower hot water, which cooled by the air compressor.
small milk processing line has Three tiers for milk tank, sterilize, heat preservation and milk store.built in agitator so that make milk be heated balance.
small milk processing line equipped with Valley wheel vortex compressor air compressor to keep the milk fresh.
Technical parameter of small milk processing line
Model |
FM -100A |
FM -100B |
FM -100C |
Diameter of the tank |
500mm |
500mm |
500mm |
Height of the tank |
500mm |
500mm |
500mm |
Capacity |
50-100kg/time |
50-100kg/time |
50-100kg/time |
Materials |
304 staniless steel |
||
Thickness |
2mm |
||
Height of the machine |
1500mm |
1900mm |
1900mm |
Time of Sterilization |
10-30 min(adjusted) |
||
Temp of sterilization |
60-99°C (adjusted) |
||
Mains |
220v |
220v/380v |
380v |
Power |
6kw |
9kw |
13kw |
Heating cycle |
25-35 min |
||
Weight |
200KG |
320KG |
400KG |
Dimensions (MM) |
1200*750*1500 |
1900*800*1900 |
1900*800*1900 |
Cooling way |
Water |
Ice water |
Cold compressor |

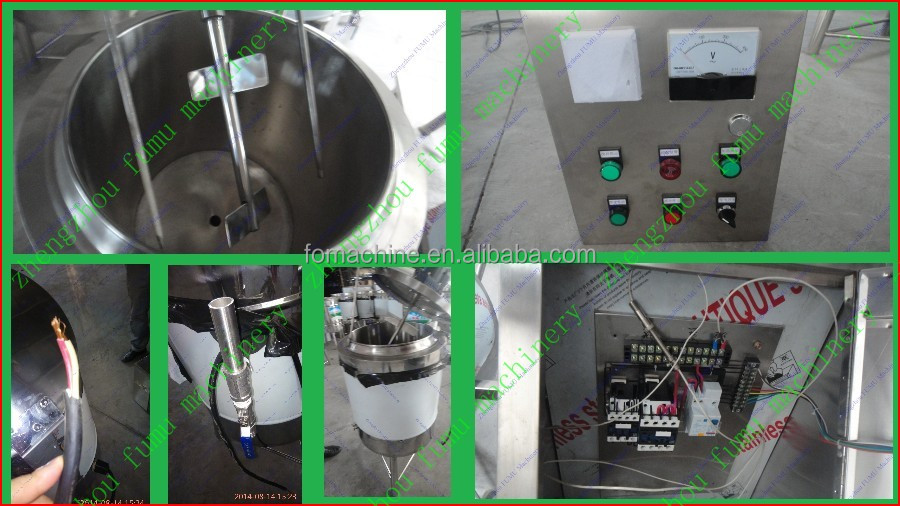

details of small milk processing line
1.export standerd wooden case for a single machine
2.shipping mark on the wooden case
3.packed in wooden box and then load on the container
1. pre-sales service
1)sales person,project manager,tech engineer,accountance staff
2)professional responing-team would send you offers very fast and exactly.
2. online-sales service
1)super and solid quality
2)delivery quickly
3)standard export package or as your demand
3. after-sales service
1) assistance to build factory
2) repairing and mainteance if any problem occur in the warranty
3)installation and clerks training
4)spare and wearing parts for free or big dicount
5)any feedback can be told us and we will do our best to support
What payment methods can I use?
Currently, you can pay via L/C,Western Union,T/T(bank transfer),alibaba escrow
It mainly depends on your order.
What is the Warranty & Insurance?
Buyers are responsible for additional tax, customs fee and Duty for importing (if any). Insurance is optional. We are not responsible for package lost or damaged during delivery if they are not insured.
What is the Return Policy?
1. If there is something wrong with the product, please contact us within 3 days. Product exchange notified after 3 days may not be honored for replacement.
2. The product MUST be returned in its original presentation package. And the product could be returned only if it is natural broken and it has never been used Please include in the returned package your name, email address, telephone number, and reason for return.
3. Buyer should be responsible for ALL Return shipping costs.
Condition: |
New
|
Place of Origin: |
Henan China (Mainland)
|
Brand Name: |
FUMU small milk pasteurization equipment for sale
|
Model Number: |
FUMU small milk pasteurization equipment for sale
|
Usage: |
Milk
|
Voltage: |
220v
|
Power(W): |
6kw
|
Weight: |
200KG
|
Dimension(L*W*H): |
1200*750*1500mm
|
Certification: |
CE,ISO
|
Warranty: |
1 tyear
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
TYPE: |
small milk pasteurization equipment for sale
|
feature: |
made of stainless steel
|
colour: |
silver
|
main market: |
America,Africa,Asia
|
packing method: |
wooden box
|
whether on stock: |
on stock
|
delivery method: |
by sea, by air
|
delivery time: |
5 days for the machine on stock
|
after-sale service: |
mobile phone 24 hours open
|
