Vegetable Grading Machine Roller Classifier,China Sanshon price supplier

Vegetable Grading Machine Roller Classifier

FOB Price:Price can be negotiated

Production Capacity:30 Set/Sets per Month

Payment Terms: US $4,900 - 8,900 / Set

Update Time:2014-09-19

Contact Supplier

Product Description

Roller Classifier
1.Excellent grading performance
2.Stainless steel Material
3.Factory price

vegetable Grading Machine Roller Classifier

Product Description

Application:

It is suitable for grading various kinds of fruits and vegetables,such as potato,orange,litchi,red dates and Mushroom etc.

Working principle:

The roller grader is mainly composed of rack, motor drive, rank output hopper, drive device cover, roller etc.

The roller rotates under the drive motor,due to the roller holes have size differences in different region.

Fruit and vegetable raw materials through Conveyor machine evenly into the roller, with the help of roller r otation,make material continuously flip, due to roller incline,the material from high to low move slowly by gravity effect.the different diameter material from different roller fall into the hopper.

The size of the material can be graded in turn, so as to achieve fruit grading.It has the advantages of structure tightly, energy saving and high efficiency, high production efficiency, and widely used.without damage for fruits and vegetables.

Specification:

dimension:6060*1340*2126mm

power:1.5kw

speed:5.4-26.8r/min(manual adjustment)

roller diameter:900mm

capacity:2000-3000kg/h

It grades into three levels, the diameters are 27.8, 30.8 and 32.8. (based on litchi)

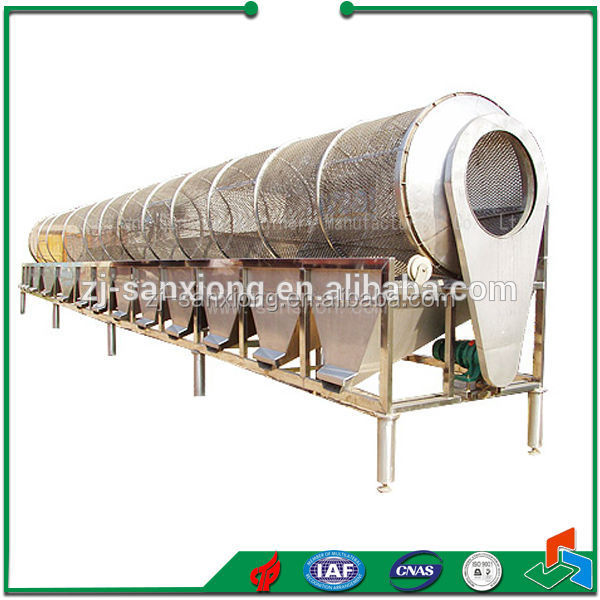

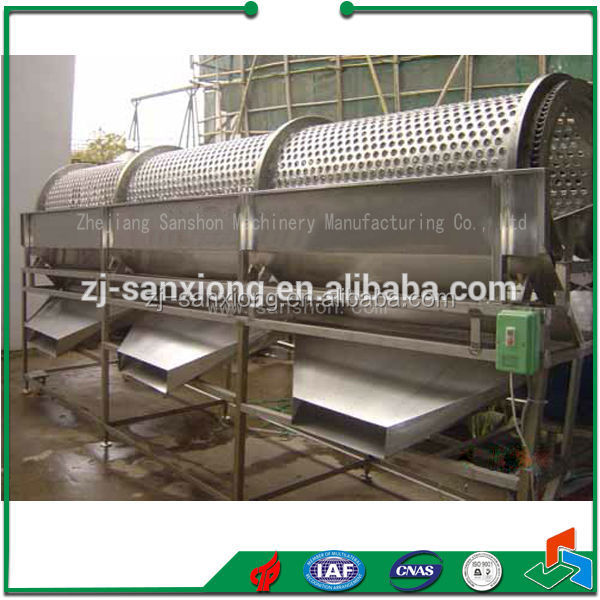

Product Pictures

Supplier

Test report

Factory S trength

Customer Together

Company Profiles

Zhejiang Sanshon Machinery Manufacturing Co., Ltd was founded in 1993, located in the most convenient transportation and prosperous economy of Yangtze River delta Shangyu city, Zhejiang. Zhejiang Sanshon Machinery Manufacturing Co., Ltd adjacent to the beauty of the CaoE river, and in less than 5 KM there are three expressways, they are Hangzhou-Ningbo (G92), Changshu-Taizhou (G15w), and 104 national road line , the HangYong high speed railway. Moreover it is less than 100 KM to Hangzhou and Ningbo airport.
It is specialized in manufacturing food processing machinery, which includes fruit & vegetable hot air drying(AD), quick freezing (IQF), vacuum freeze dryer(FD). The company passed ISO9001:2000 quality standard under the efforts of all employees. There are three equipments has been assessed as National New Product. And in 2007, Sanshon was recognized for New and High Technical enterprise in Zhejiang Province.
The company not only in r&d and manufacturing ,but also enjoy the right of import and export. And the machinery from Sanshon has been exported to more than 10 countries, including Vietnam, Thailand, Uzbekistan, Azerbaijan, Iran, Mexico, Venezuela, Peru, Australia, Cyprus, Libya, etc.
Based on more than 20 years’ experience in food process machinery manufacturing, later it established Shaoxing Sanshon Steel Co., Ltd (www.cnsxgg.com) and Shundi foods Co., Ltd(www.shundifoods.com)in Zhejiang and Shanghai. Sanshon now is capable of providing integrated services, including product consultation, design, workshop establishment, equipment manufacturing and installation, training of machine operation in the field of vacuum freeze drying machine (FD), hot air drying (AD) as well as quick frozen (IQF) machines.
Sanshon is well prepared to be a pioneer in the field of dehydration, quick frozen, vacuum freeze drying to contribute to food processing industry!
Term,Conditions

Ordering Information
Payment:
we usually accept T/T,L/C, please send email to negotiate payment term if you can not accept T/T or L/C.
Packing:
iron framework with external plywood and seaworthy package

Please send email for the extra cost of different packing

Delivery Time:
different products will spend different production period: from 30-120 days after 50% advanced payment.

For urgent order, Could be faster, please send email to negotiate

How to make an order?
1,Client make 50% deposit or open LC after receiving our PI
2,Client approve our equipment,
arrange shipment
1,Client effect balance payment before shipment
2. supplier send original documents or telex release the goods
3,quality warranty for 1 year after shipment

Condition:	New	Place of Origin:	Zhejiang China (Mainland)	Brand Name:	Sanshon
Model Number:	GCJ	Type:	Roller Classifier	Voltage:	380V
Power(W):	1.5KW	Dimension(LWH):	606013402126mm	Certification:	ISO,CE,UL
Warranty:	1 Year	After-sales Service Provided:	Engineers available to service machinery overseas	Material:	SUS304
Equipment:	Roller Classifier
